Plant Photosynthesis Meter

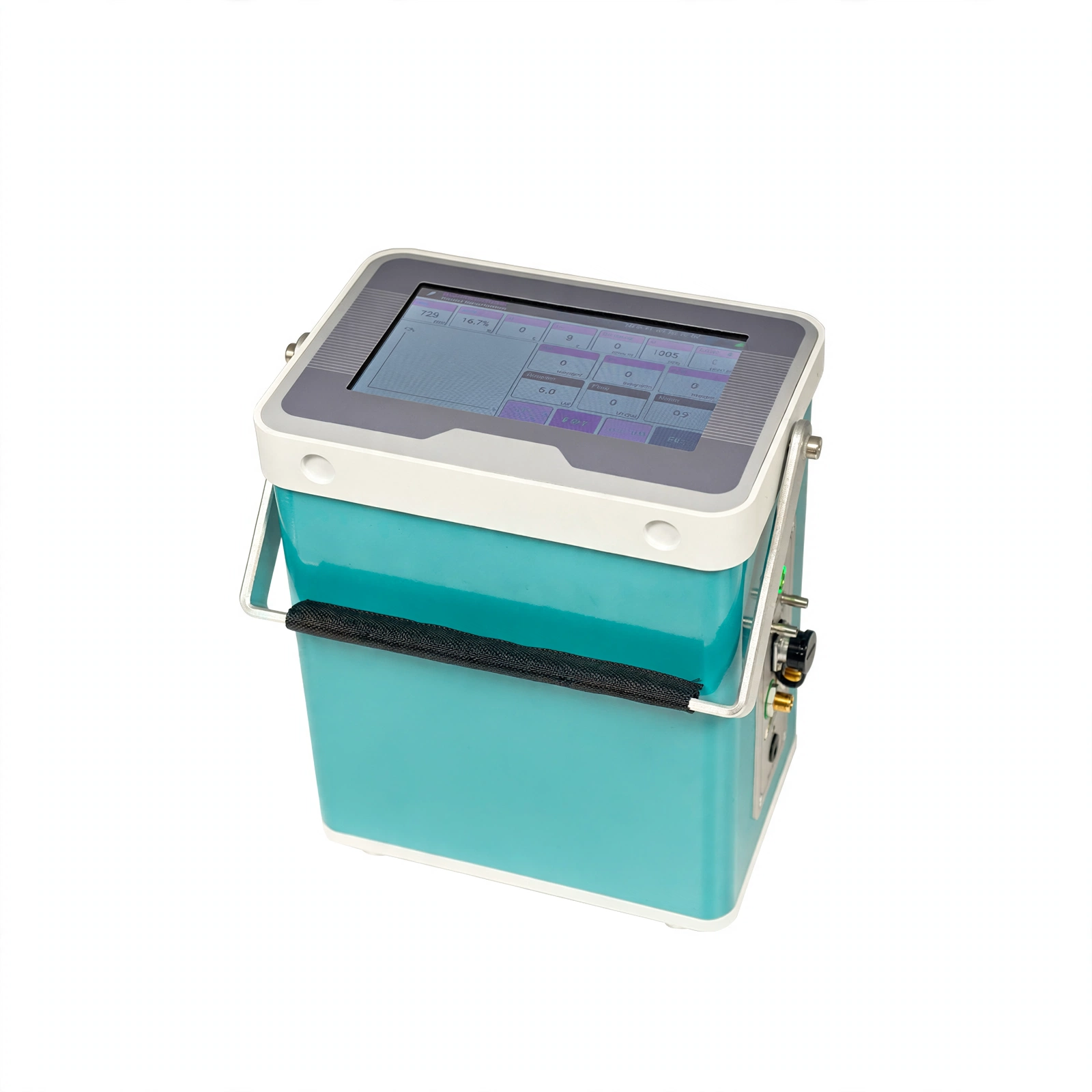

Plant Photosynthesis Meter PPM-3080D

Model PPM-3080D

It can measure parameters such as gas CO₂ concentration, air temperature and humidity, leaf temperature, photosynthetically active radiation (photosynthetic photon flux density), gas flow rate, and atmospheric pressure. Additionally, it can be used independently as a CO₂ recorder. It is applicable to professional research in fields such as biology, agronomy, and microbiology, and is suitable for use in colleges and universities, research institutions, environmental protection enterprises, meteorological bureaus, and landscape architecture bureaus.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. 7-inch high-sensitivity touch screen

2. It can measure 16 parameters, including: carbon dioxide concentration, etc.

3. Automatic data storage: The instrument automatically saves measured data to prevent data loss caused by unexpected shutdown due to power depletion.

4. Tabular data export: Data can be exported to a computer in Excel format via a USB cable for secondary analysis.

5. Wireless transmission support: Data can be uploaded to a cloud platform.

Technical Parameters:

Model

 PPM-3080D

CO₂

 Measure Range 0~5000ppm
Resolution 1ppm
Accuracy ±3ppm

Leaf Temperature

 Measure Range -20~60℃
Resolution 0.01℃
Accuracy ±0.2℃

Leaf Chamber Temperature

 Measure Range -20~80℃
Resolution 0.01℃
Accuracy ±0.2℃

PARin(Optional)

 Measure Range 0~3000μmol/m²·s
Accuracy ±5μmol/m²·s
Response Wavelength Range 320～730nm

PARout

 Measure Range 0~3000μmol/m²·s
Accuracy ±5μmol/m²·s
Response Wavelength Range 320～730nm

Humidity

 Measure Range 0~100%RH
Resolution 0.01℃
Accuracy ±0.5%

Leaf Chamber Size

 Type Ⅰ：30*10mm

Type ⅠI：30*20mm (Standard)

Type ⅠII：30*30mm

Type Ⅳ：30*20mm (LED red and blue light sources)

Power Supply

 13.8V 8.8AH rechargeable lithium battery

Packing Size(W*D*H)

 550*400*250mm

Gross Weight

 10kg
