Plant Photosynthesis Meter

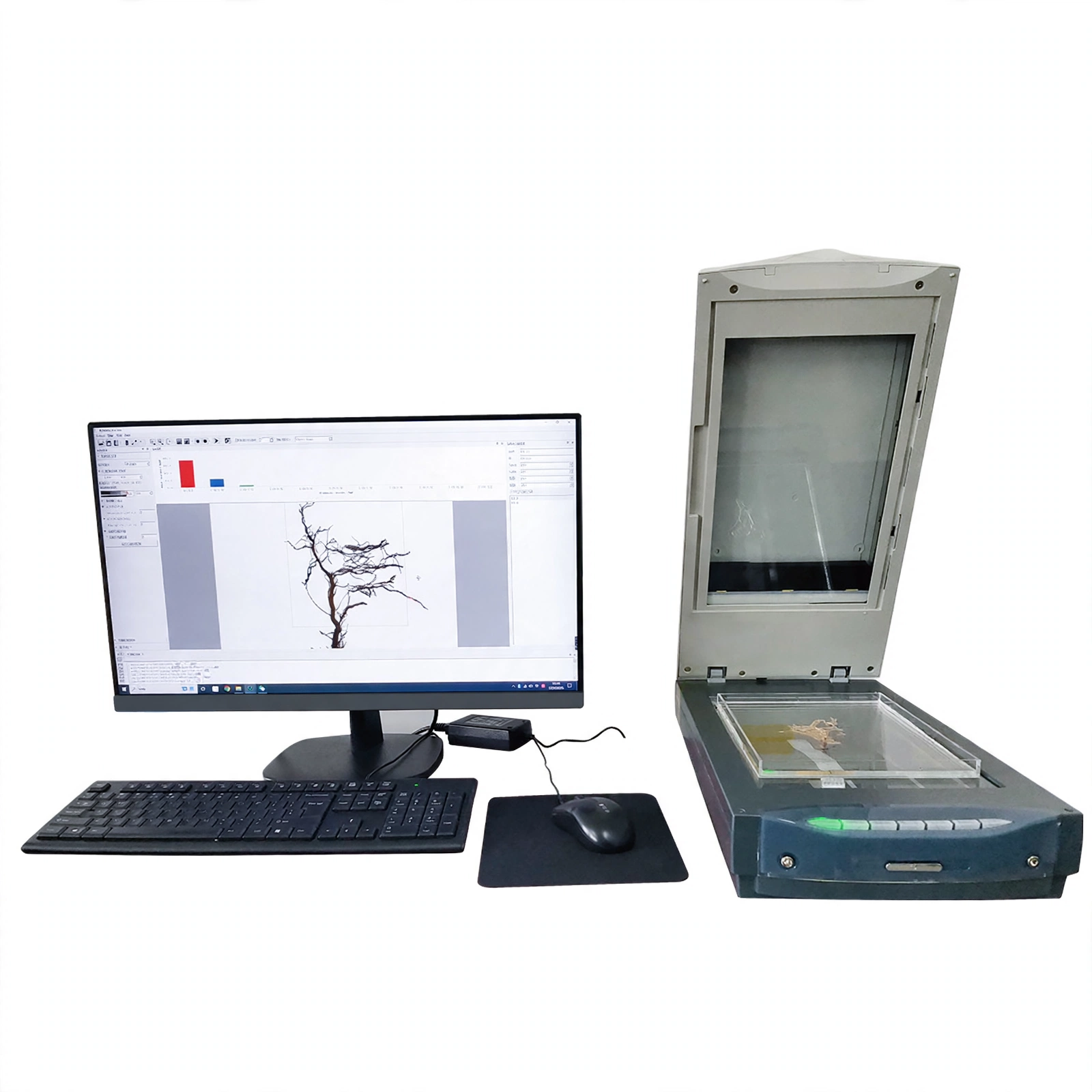

Plant Root Analysis System

Model RS-RIAS

Root analysis system is based on image recognition technology, it is professionally used for root analysis of plants after washing the roots in vitro. It has the characteristics of convenience, efficiency and high accuracy, which can improve the work efficiency of practitioners, reduce labor costs.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Hardware precision: High-resolution dual-light source scanning delivers clear, reflection-free imaging. The tray design prevents root overlap.

2. Comprehensive analysis: Automatically measures dozens of parameters including root length and diameter. Supports topological classification and color analysis with accurate data.

3. High efficiency & ease of use: One-click scanning and analysis, supports batch processing, ideal for agricultural and ecological research applications.

Technical Parameters:

Model RS-RIAS
Power Supply AC100~240V, 50/60Hz
Optional Accessory Computer
Package Size（W*D*H） 576*297*118mm
Gross Weight 8kg

Overall Analysis Parameters:

Model

RS-RIAS

Root Tip

Number:The total number of root tips, equal to the number of termination points
Range 0~1000
Accuracy Error<5%

Root System

Length: Total root system length, including main root and secondary roots
Range 0~10000mm
Accuracy Error<3.65%

Average Diameter: The average diameter of the root system
Range 0~20mm
Accuracy Error<0.04%

Projected Area: The projected area of the root system as a whole
Range 0~200000mm2
Accuracy Error<4.02%

Surface Area: The overall surface area
Range 0~1000000mm2
Accuracy Error<3.75%

Volume: Overall volume
Range 0~2000000000mm3
Accuracy Error<3.82%
The details

Specifications

Model
RS-RIAS
Power Supply
AC100~240V, 50/60Hz
Optional Accessory
Computer
Package Size（W*D*H）
576*297*118mm
Gross Weight
8kg
