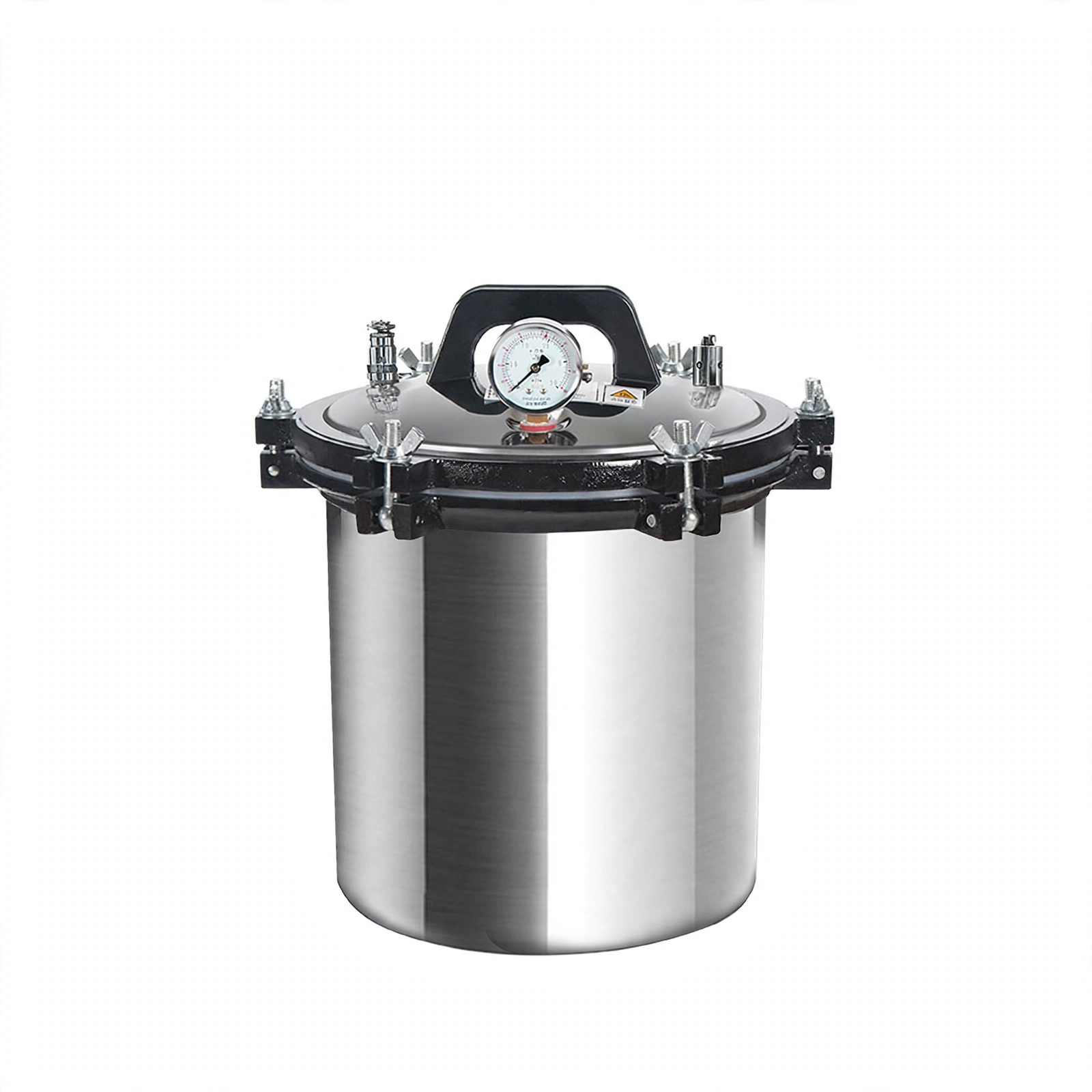

Portable Autoclave – Overflowing Tech (OBTC)

A closer look

About this equipment

Features:

1. Self-expanding sealing ring has good sealing performance and can effectively prevent steam leakage.

2. Over-temperature and over-pressure automatic protection.

3. Immersion electric heating tube, high thermal efficiency, durable stainless steel tube.

4. Equipped with a water level gauge, if the water level is too low, it will automatically stop heating(anti-dry type).

5. Electric heating or liquefied petroleum gas heating(dual-use type).

6. With self-adjustment function, temperature and time can be adjusted by itself, automatically stop heating and alarm function after sterilization(timing control type).

7. Two safety valves keep double safety(timing control type).

Technical Parameters:

Model	BKM-P18I	BKM-P18II	BKM-P18III	BKM-24I	BKM-P24II	BKM-P24III
Type	Dual-use Type	Anti-dry Type	Timing Control Type	Dual-use Type	Anti-dry Type	Timing Control Type
Capacity	18L			24L
Max Working Pressure	0.165MPa
Max Working Temp.	129℃
Rated Working Pressure	0.14MPa
Rated Working Temp.	126℃
Temp. Setting	Fixed 126℃		105~127℃	Fixed 126℃		105~127℃
Heating Method	Coal or electricity	Electricity		Coal or electricity	Electricity
Sterilizing Time	Manual timing		0~99min	Manual timing		0~99min
Chamber Size	Ф300*320mm	Ф280*350mm		Ф300*450mm	Ф280*460mm
Altitude	＜2600m
Disinfection Tank	Φ280*240mm	Φ265*265mm		Φ280*350mm	Φ265*345mm
Automatic Control	No		Yes	No		Yes
Low Water Level Power Off Mode	Anti-dry burning heating pipe	Water level switch		Anti-dry burning heating pipe	Water level switch
Consumption	2KW, 1.5KW can be customized
Power Supply	AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
External Size(WDH)	385385450mm	450340600mm		385385560mm	448340680mm
Net Weight	15.5kg	13.5kg		16.5kg	14.5kg
Package Size(WDH)	400400430mm	400400670mm		400400530mm	400400770mm
Gross Weight	16.5kg	14.5kg		17.5kg	15.5kg

The details

Specifications

Model: BKM-P18I / BKM-P18II / BKM-P18III / BKM-24I / BKM-P24II / BKM-P24III
Type: Dual-use Type / Anti-dry Type / Timing Control Type / Dual-use Type / Anti-dry Type / Timing Control Type
Capacity: 18L / 24L / 24L / 24L / 24L / 24L
Max Working Pressure: 0.165MPa
Max Working Temp.: 129℃
Rated Working Pressure: 0.14MPa
Rated Working Temp.: 126℃
Temp. Setting: Fixed 126℃ / 105~127℃ / Fixed 126℃ / 105~127℃ / 105~127℃ / 105~127℃
Heating Method: Coal or electricity / Electricity / Coal or electricity / Electricity / Electricity / Electricity
Sterilizing Time: Manual timing / 0~99min / Manual timing / 0~99min / 0~99min / 0~99min
Chamber Size: Ф300*320mm / Ф280*350mm / Ф300*450mm / Ф280*460mm / Ф280*460mm / Ф280*460mm
Altitude
Disinfection Tank: Φ280*240mm / Φ265*265mm / Φ280*350mm / Φ265*345mm / Φ265*345mm / Φ265*345mm
Automatic Control: No / Yes / No / Yes / Yes / Yes
Low Water Level Power Off Mode: Anti-dry burning heating pipe / Water level switch / Anti-dry burning heating pipe / Water level switch / Water level switch / Water level switch
Consumption: 2KW, 1.5KW can be customized
Power Supply: AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
External Size(W*D*H): 385*385*450mm / 450*340*600mm / 385*385*560mm / 448*340*680mm / 448*340*680mm / 448*340*680mm
Net Weight: 15.5kg / 13.5kg / 16.5kg / 14.5kg / 14.5kg / 14.5kg
Package Size(W*D*H): 400*400*430mm / 400*400*670mm / 400*400*530mm / 400*400*770mm / 400*400*770mm / 400*400*770mm
Gross Weight: 16.5kg / 14.5kg / 17.5kg / 15.5kg / 15.5kg / 15.5kg
