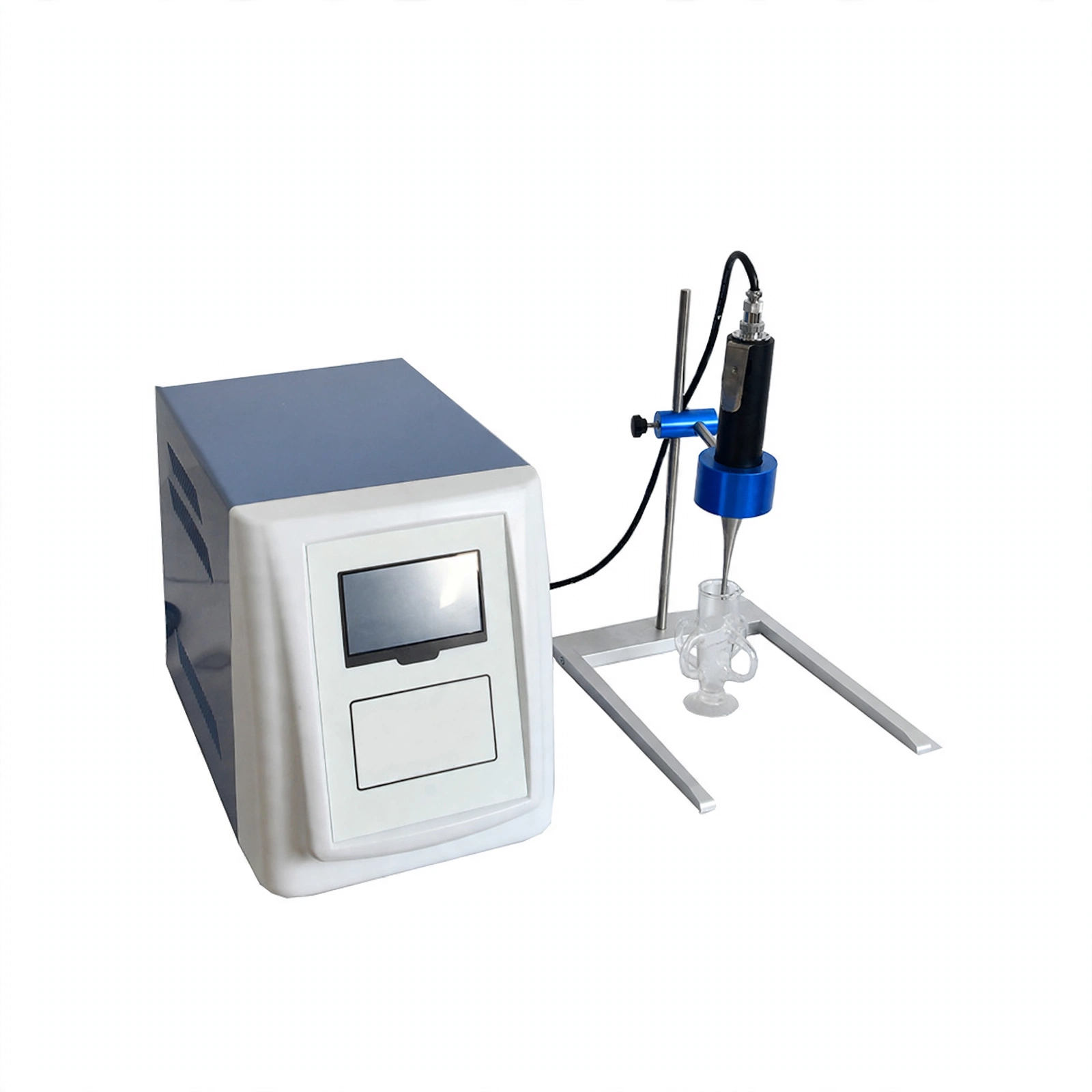

The Portable Ultrasonic Cell Disruptor is a compact, high-performance device designed for cell disruption, homogenization, and emulsification in laboratory applications.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. LCD display.
2. Temperature alarm setting range: 0~100℃.
3. Ultrasonic time setting for on and off: 0.1~9.9s.
4. Audible alarm for: Over temperature, over power, over time.
Technical Parameters:
| Model | UCD-P01 |
| Frequency(KHz) | 20~30, frequency automatic tracking |
| Crushing Capacity(ml) | 0.1~150ml(need to choose the corresponding horn) |
| Standard Amplitude Pole Φ(mm) | 3 or 5 |
| Optional Amplitude Pole Φ(mm) | 2, 3, 5, 6 |
| Standard Accessories | Bracket |
| Optional Accessories | Foot switch, sound proof box |
| Ultrasonic Power(W) | 2.5~250W, adjustable |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) |
| Package Size(W*D*H) | 470*305*450mm |
| Gross Weight | 14kg |
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
Application: It is suitable for the extraction of cells, bacteria and emulsifying chemical nanometer material, suitable for small batch production or to provide accurate technical parameters for the future industrial…
Application: Widely used in the field such as biology, chemistry, microbiology, physics, zoology, agronomy, medical science for teaching, scientific research and production.
