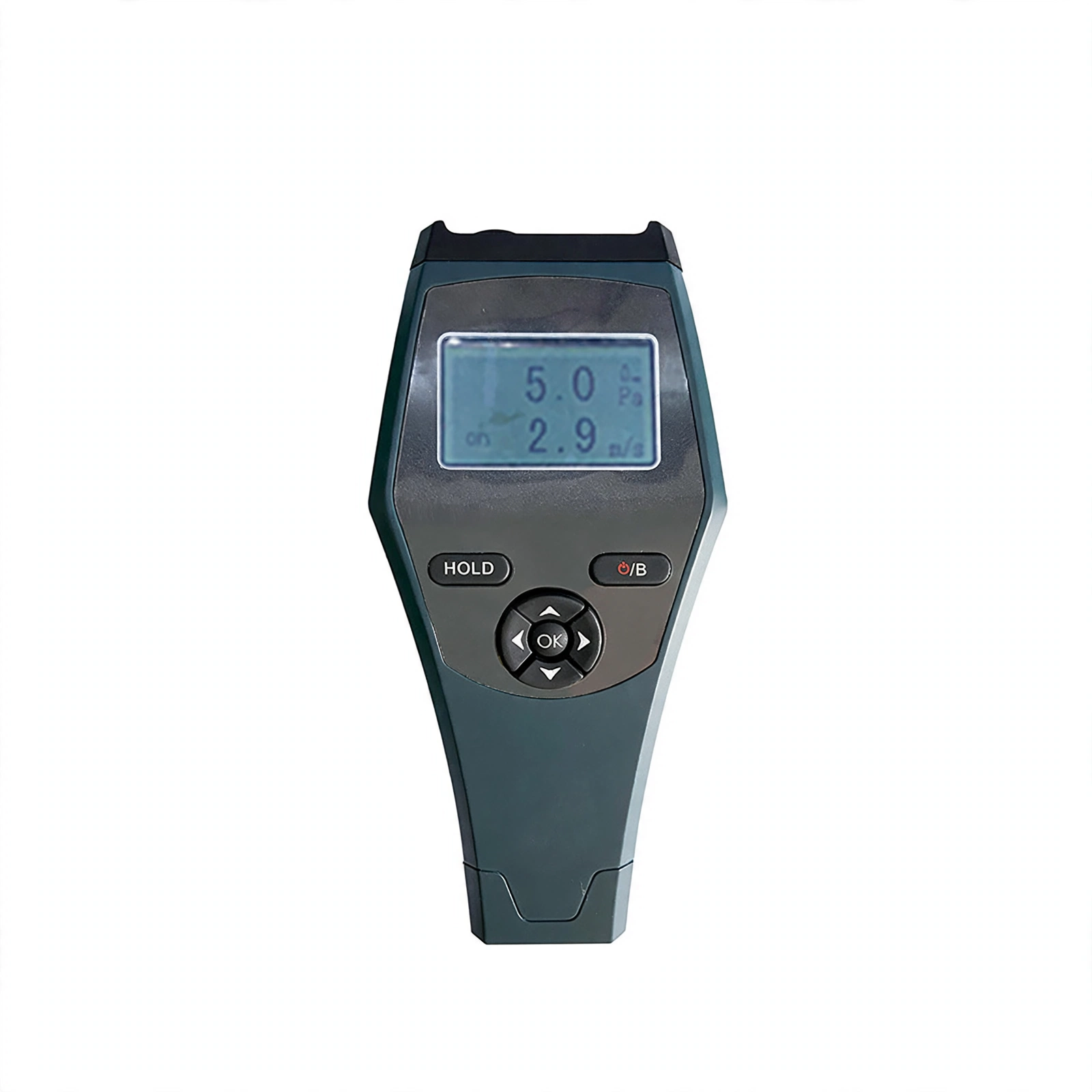

Precision Differential Pressure Gauge

Model DPG-100 / DPG-200 / DPG-500 / DPG-101 +4

Precision differential pressure gauge is a high stability pressure meter, suitable for gas, liquid positive pressure, negative pressure and differential pressure measurement, is the environmental monitoring stations, laboratories, medical and health, building air conditioning heating, ventilation, dust-free room test or calibration pressure ideal instrument.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

* LCD display, display backlight switch function.* Micro pressure sensor, high resolution, high precision and high stability. * Manual differential pressure zero calibration function. * When the measuring range is exceeded, the meter will prompt on the display. * After the instrument is powered on, the default is automatic shutdown, if no button is pressed within 30 minutes, the instrument will automatically shut down. * When calculating wind speed, environmental compensation parameters and pitot tube coefficient can be set.(optional)

Technical Parameters:

Model

DPG-100 DPG-200 DPG-500 DPG-101 DPG-201 DPG-310 DPG-501 DPG-111

Differential Pressure

Range 0~±100Pa 0~±200Pa 0~±500Pa 0~±1KPa 0~±2KPa 0~±3.5KPa 0~±5KPa 0~±9KPa
Error

±1%FS

±0.5%value/±2Pa(select larger one)

±0.5%value/±5Pa(select larger one)

±0.5%value/±10Pa(select larger one)
Resolution

0.1Pa

Wind Speed(optional)

Range 1~12m/s 1~18m/s 1~26m/s 1~40m/s 1~55m/s 1~70m/s 1~90m/s 1~120m/s
Error

1~5m/s：±0.7 m/s

5~max range value：±2%value or ±0.7 m/s, select larger one (DPG-100, DPG-200, DPG-500)

5~max range value：±3%FS(DPG-101~DPG-111)

Resolution

0.1m/s(1m/s when exceeds 100)

Temp

Range

-40~85℃

Error

≤±0.3℃

Resolution

0.1℃

Humidity

Range

0~99%RH

Error

≤±2%RH

Resolution

0.1%RH

Power Supply

AAA battery*4

Standard accessory

Φ4mm*1m silicone hose*2, portable box, usb interface

Optional accessory

Pitot tube

External Size

217*97*46mm

Package Size

360*290*105mm

Net/Gross Weight

0.6kg/2kg
