New Products

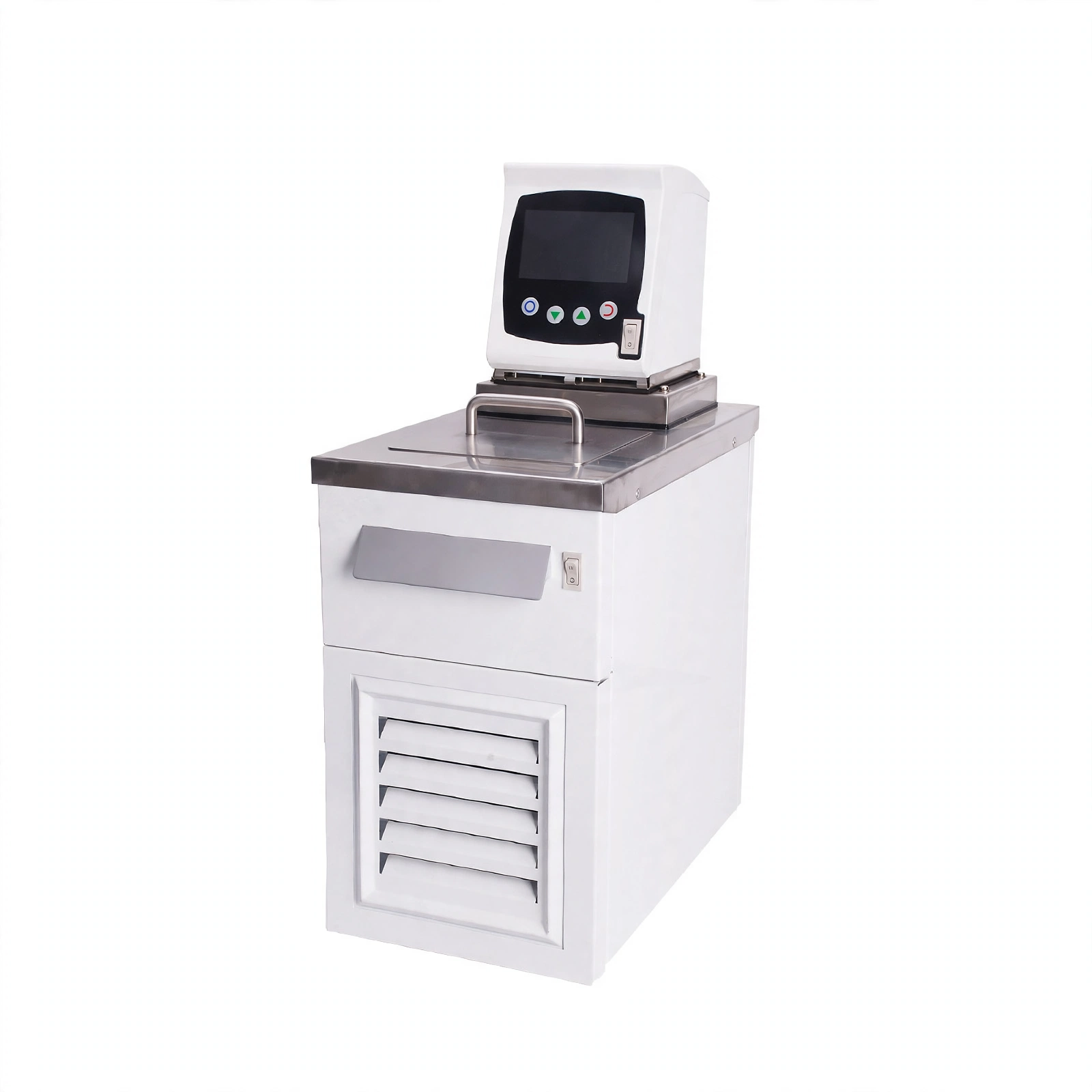

Refrigerated and Heating Circulator

Model BKL6-05 BKH6-05 BKL6-20 BKH6-20 Refrigerated

Refrigerated and Heating Circulator can be widely used in oil, physical, chemical, pharmaceutical, environmental protectionand other fields of science, precision temperature control equipment.

Dimensions
400*250*650mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Application:

Experiment that need heating and cooling, Fermentation Tank, Polarimeter, Refractometer,Spectrophotometer, Electrophoresis System, Chromatographic Column, Viscometer, RotationEvaporation lnstrument, Rheometer.

Features:

1. LCD display

2. Robust water tank: ultra-slushing and rust-proof

3. Low Noise design: use high quality compressor and mute pump.

4.  Convenience function:Parameters memory function, temperature correction.

5. PID temperature control system: control temperature stability accurately and fast.

6. Multi-protection: Over-current protection, high and low temperature warning functions, dry-running protection.

7. ECO-refrigerant R134a and high quality compressor guarantee the cooling system ecofriendly and powerful

8. Compact design, removable venting grid for convenient cleaning to maintain cooling performance and drain off water.

Technical Parameters:

Model BKL6-05 BKH6-05 BKL6-20 BKH6-20
Working Temp.Range -5℃~100℃ -5℃~200℃ -20℃~100℃ -20℃~200℃
Temp.Control

PID
Temp.Stability

±0.03℃
Temp.Sensor

PT100
Display Resolution 0.1℃
Heater Consumption

2000 W
Cooling Consumption

250W
Refrigerant

R134a
Pump Capacity Pressure

0.35bar
Pump Flow Rate

10L/min
Ambient Temp.

-20～70℃
Filling Volume

6L
Power Supply

AC220V±10%,50Hz
Bath Opening(W*D)

160*160mm
Bath Dimensions(W*D*H)

320*180*150mm
External Size(W*D*H)

400*250*650mm
Package Size(W*D*H)

590*420*930mm
Gross Weight

43.5kg
The details

Specifications

Model
BKL6-05 / BKH6-05 / BKL6-20 / BKH6-20
Working Temp.Range
-5℃~100℃ / -5℃~200℃ / -20℃~100℃ / -20℃~200℃
Temp.Control
PID
Temp.Stability
±0.03℃
Temp.Sensor
PT100
Display Resolution
0.1℃
Heater Consumption
2000 W
Cooling Consumption
250W
Refrigerant
R134a
Pump Capacity Pressure
0.35bar
Pump Flow Rate
10L/min
Ambient Temp.
-20～70℃
Filling Volume
6L
Power Supply
AC220V±10%,50Hz
Bath Opening(W*D)
160*160mm
Bath Dimensions(W*D*H)
320*180*150mm
External Size(W*D*H)
400*250*650mm
Package Size(W*D*H)
590*420*930mm
Gross Weight
43.5kg
