New Products

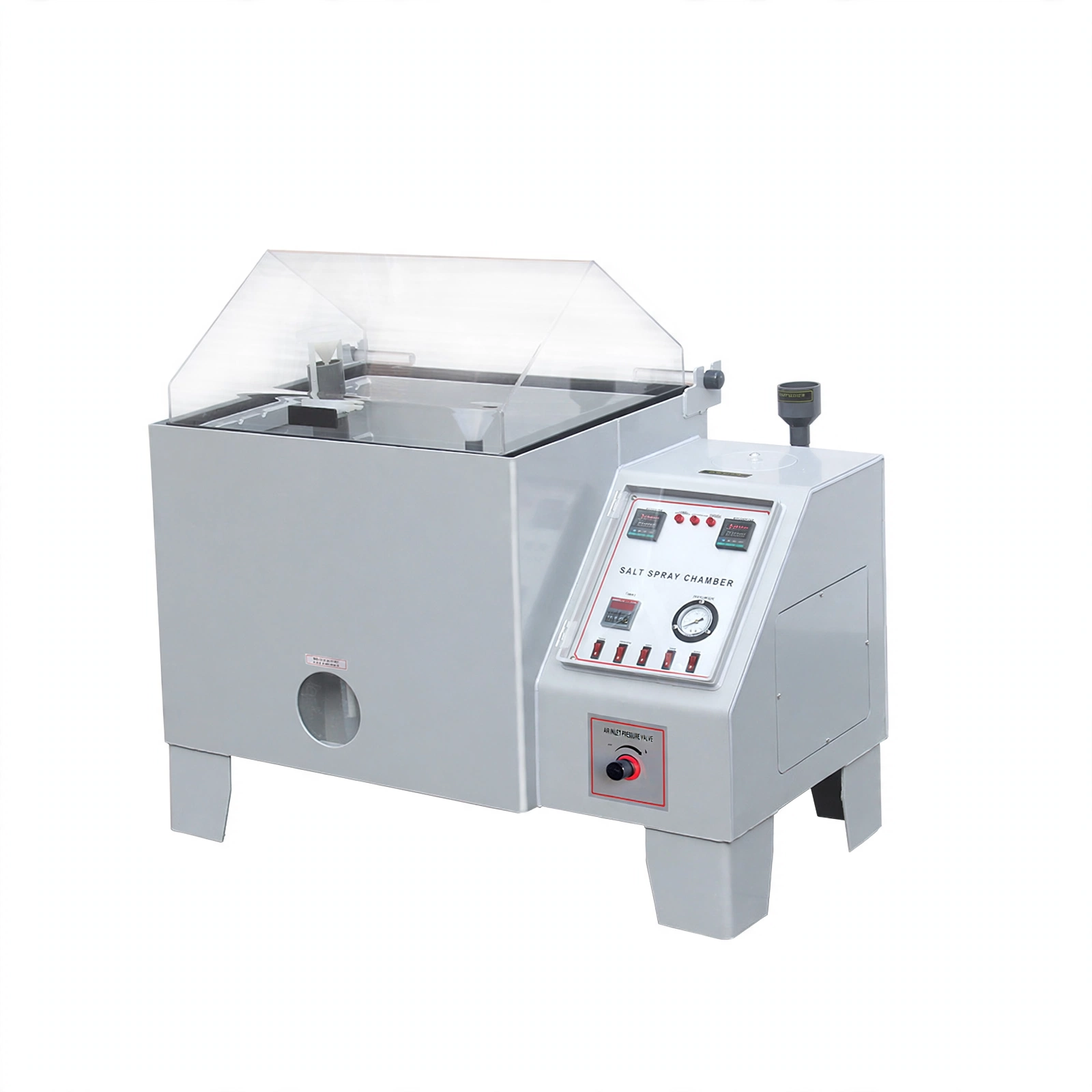

Salt Spray Test Machine

Model BJPX-SS60A BJPX-SS90A BJPX-SS120A BJPX-SS160A

Salt spray test machine, is for a variety of materials surface treatment, including coatings, electroplating, organic and inorganic film, anode treatment, anti-rust oil and other anti-corrosion treatment to test its corrosion resistance, thus establishing the quality of the product.

Net weight
47kg / 68kg / 150kg /…
Dimensions
1025*650*990mm / 1348…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Fine workmanship, beautiful appearance, high transparency, pneumatic open cover.

2. PVC plate, special treatment corrosion resistance, plastic steel V-shaped frame and stainless steel pipe angle.

3. With low water level, over temperature safety protection device, overload short circuit protection.

4. Adopt automatic/manual water adding system, with automatic/manual water replenishment function when the water level is insufficient.

5. Test time can be set multi-functional, with power failure memory function.

6. Temperature controller using digital display, PID control.

7. The test refill bottle adopts hidden type with water level perspective window, which is easy to clean and not easy to break.

8. The saturation air barrel is made of 304 stainless steel, offering high-pressure resistance and optimal thermal insulation.

9. The nozzle is made of special glass, allowing adjustment of spray volume and spray angle, with a continuous spray mode.

Technical Parameter:

Model BJPX-SS60A BJPX-SS90A BJPX-SS120A BJPX-SS160A
Test Chamber Capacity 108L 216L 600L 800L
Salt Tank Capacity 15L 25L

40L
Temp. Requirement

Test chamber:

35±1℃(Salt spray test: NSS, AASS);

50±1℃(Corrosion resistance test: CASS);

Saturated air barrel: 47±1℃(Salt spray test: NSS, AASS);

63±1℃(Corrosion resistance test: CASS)
Temp. Fluctuation

≤±0.5℃(Test chamber)
Temp. Uniformity

≤2℃(Test chamber)
Test Chamber Humidity

＞85%
Salt Water Temp. Requirement

35±1℃(NSS ACSS); 50±1℃(CASS)
Brine Concentration

5% NaCl solution or 0.26g CuCl2 was added to 5% NaCl solution per liter
Saturated Air Pressure

1.00±0.01kgf/cm2
Spray

1.0~2.0ml/80cm2/h(The samples were collected for at least 16 hours and averaged)
Standard Accessory

Test rack, graduated cylinder, collection cup, humidity cup, nozzle tower, 5L plastic beaker, salinometer, glass nozzle, saltwater filter
Optional Accessory

Touch screen, dual-timing function
Power Supply

AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
Internal Size(W*D*H) 600*450*400mm 900*600*400mm 1200*1000*500mm 1600*1000*500mm
External Size(W*D*H) 1025*650*990mm 1348*810*1250mm 1860*1260*1250mm 2280*1260*1250mm
Package Size(W*D*H) 1100*700*1180mm 1430*850*1250mm 1920*1330*1420mm 2330*1320*1440mm
Net Weight 47kg 68kg 150kg 234kg
Gross Weight 88kg 125kg 310kg 410kg
The details

Specifications

Model
BJPX-SS60A / BJPX-SS90A / BJPX-SS120A / BJPX-SS160A
Test Chamber Capacity
108L / 216L / 600L / 800L
Salt Tank Capacity
15L / 25L / 40L / 40L
Temp. Requirement
Test chamber:35±1℃(Salt spray test: NSS, AASS); 50±1℃(Corrosion resistance test: CASS);Saturated air barrel: 47±1℃(Salt spray test: NSS, AASS);63±1℃(Corrosion resistance test: CASS)
Temp. Fluctuation
≤±0.5℃(Test chamber)
Temp. Uniformity
≤2℃(Test chamber)
Test Chamber Humidity
Salt Water Temp. Requirement
35±1℃(NSS ACSS); 50±1℃(CASS)
Brine Concentration
5% NaCl solution or 0.26g CuCl2 was added to 5% NaCl solution per liter
Saturated Air Pressure
1.00±0.01kgf/cm2
Spray
1.0~2.0ml/80cm2/h(The samples were collected for at least 16 hours and averaged)
Standard Accessory
Test rack, graduated cylinder, collection cup, humidity cup, nozzle tower, 5L plastic beaker, salinometer, glass nozzle, saltwater filter
Optional Accessory
Touch screen, dual-timing function
Power Supply
AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
Internal Size(W*D*H)
600*450*400mm / 900*600*400mm / 1200*1000*500mm / 1600*1000*500mm
External Size(W*D*H)
1025*650*990mm / 1348*810*1250mm / 1860*1260*1250mm / 2280*1260*1250mm
Package Size(W*D*H)
1100*700*1180mm / 1430*850*1250mm / 1920*1330*1420mm / 2330*1320*1440mm
Net Weight
47kg / 68kg / 150kg / 234kg
Gross Weight
88kg / 125kg / 310kg / 410kg
