Sample Concentration (Nitrogen Evaporator)

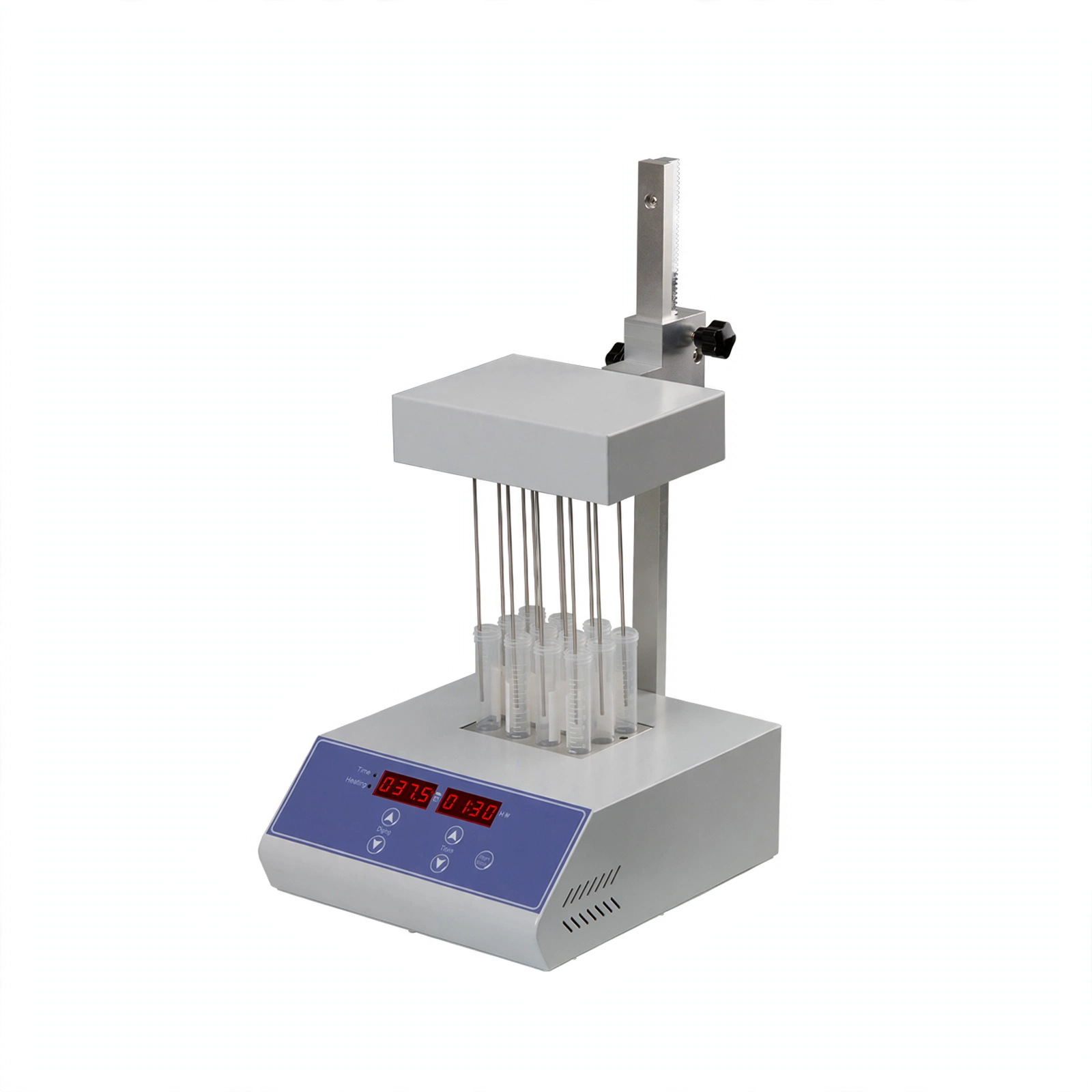

Sample Concentrator BK-SC100

Model BK-SC100

The Sample Concentrator is a high-efficiency laboratory instrument designed to concentrate or evaporate multiple liquid samples simultaneously.

Dimensions
260*220*450mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. High precision and wide range of tamp control.

2. Blowing a large number of samples at one time.

3. Blowing each sample independently.

4. Amount of airflow can be adjusted.

5. Easy operation; safe and reliable to use.

6. 12-month warranty.

Technical Parameters:

Model BK-SC100
Temp. Control Range RT+5°C~160°C
Temp. Uniformity ≤±0.5°C
Display Accuracy 0.1°C
Heating Time ≤15min(from 25°C to 160°C)
Max Gas Usage 15L/min
Max Gas Pressure 0.02Mpa(Gas pin≤16pcs)

0.05Mpa(Gas pin>16pcs)
Max Power 300W
Dimension 260*220*450mm
Temp. Accuracy ±0.5°C(@40°C)
Temp. Accuracy ±1°C(@120°C)
Timing Range 1~99h59min/∞
Max Vertical Travel 200mm
Needle Length 150mm
Block Quantity 1
Voltage 220V, 50/60Hz; 110V, 60Hz
Packing Size(W*D*H) 430*420*340mm
Weight(kg) 7.0
Gross Weight(kg) 9.0

Optional Blocks:

Type Test Tube Diameter  Capacity
B03 10mm 24
B04 12mm 24
B05 13mm 24
B06 15mm 16
B07 16mm 16
B08 19mm 12
B09 20mm 12
B10 26mm 8
B11 28mm 4
B12 40mm 3
B15 1.5ml(centrifuge tube) 24
B16 2.0ml(centrifuge tube) 24

Choose one as a standard block.
The details

Specifications

Model
BK-SC100
Temp. Control Range
RT+5°C~160°C
Temp. Uniformity
≤±0.5°C
Display Accuracy
0.1°C
Heating Time
≤15min(from 25°C to 160°C)
Max Gas Usage
15L/min
Max Gas Pressure
0.02Mpa(Gas pin≤16pcs)0.05Mpa(Gas pin>16pcs)
Max Power
300W
Dimension
260*220*450mm
Temp. Accuracy
±0.5°C(@40°C)
Temp. Accuracy
±1°C(@120°C)
Timing Range
1~99h59min/∞
Max Vertical Travel
200mm
Needle Length
150mm
Block Quantity
1
Voltage
220V, 50/60Hz; 110V, 60Hz
Packing Size(W*D*H)
430*420*340mm
Weight(kg)
7.0
Gross Weight(kg)
9.0
