Sample Concentration (Nitrogen Evaporator)

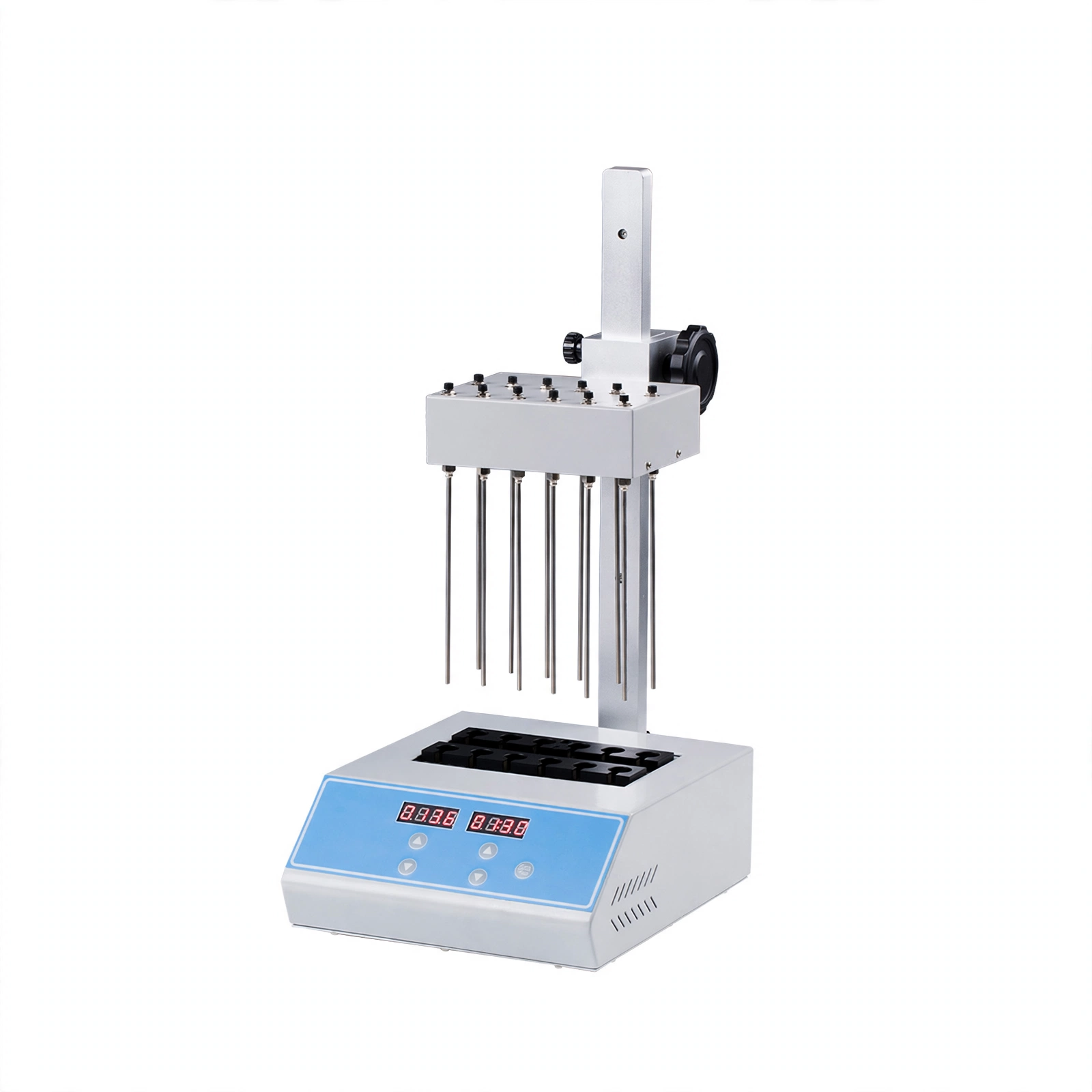

Sample Concentrator(visible)

Model BK-SC400

The Sample Concentrator is a high-efficiency laboratory instrument designed to concentrate or evaporate multiple liquid samples simultaneously.

Dimensions
260*220*475mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. High precision and wide range of temp control.

2. Blowing a large number of samples at one time.

3. Blowing each sample independently.

4. Amount of airflow can be adjusted.

5. With special slotting-design block, surface location of.

6. Concentrated samples can be observed.

7. Easy operation; safe and reliable to use.

Technical Parameters：

Model BK-SC400
Temp. Control Range RT.+5°C~160°C
Temp. Uniformity ≤±0.5°C
Display Accuracy 0.1°C
Heating Time ≤15min(from 25°C to 160°C)
Nitrogen Flow Rate 15L/min
Nitrogen Rressure 0.1Mpa
Max Power 500W
Dimension 260*220*475mm
Temp. Accuracy ±0.5°C(@40°C)
Temp. Accuracy ±1°C(@120°C)
Timing Range 1min~99h59min/∞
Needle Length 150mm
Block Quantity 1
Voltage 220V, 50/60Hz; 110V, 60Hz
Packing Size(W*D*H) 430*420*340mm
Weight(kg) 7.3
Gross Weight(kg) 10.0

Optional Blocks:

Type Diameter Depth Capacity
B02 027 001 10.5mm 50mm 12
B02 027 002 12.5mm 50mm 12
B02 027 003 13.5mm 50mm 12
B02 027 004 15.5mm 50mm 12
B02 027 005 16.5mm 50mm 12
B02 027 006 19.5mm 50mm 12
B02 027 007 20.5mm 50mm 12

Choose one as a standard block.
The details

Specifications

Model
BK-SC400
Temp. Control Range
RT.+5°C~160°C
Temp. Uniformity
≤±0.5°C
Display Accuracy
0.1°C
Heating Time
≤15min(from 25°C to 160°C)
Nitrogen Flow Rate
15L/min
Nitrogen Rressure
0.1Mpa
Max Power
500W
Dimension
260*220*475mm
Temp. Accuracy
±0.5°C(@40°C)
Temp. Accuracy
±1°C(@120°C)
Timing Range
1min~99h59min/∞
Needle Length
150mm
Block Quantity
1
Voltage
220V, 50/60Hz; 110V, 60Hz
Packing Size(W*D*H)
430*420*340mm
Weight(kg)
7.3
Gross Weight(kg)
10.0
