Liquid Nitrogen Container

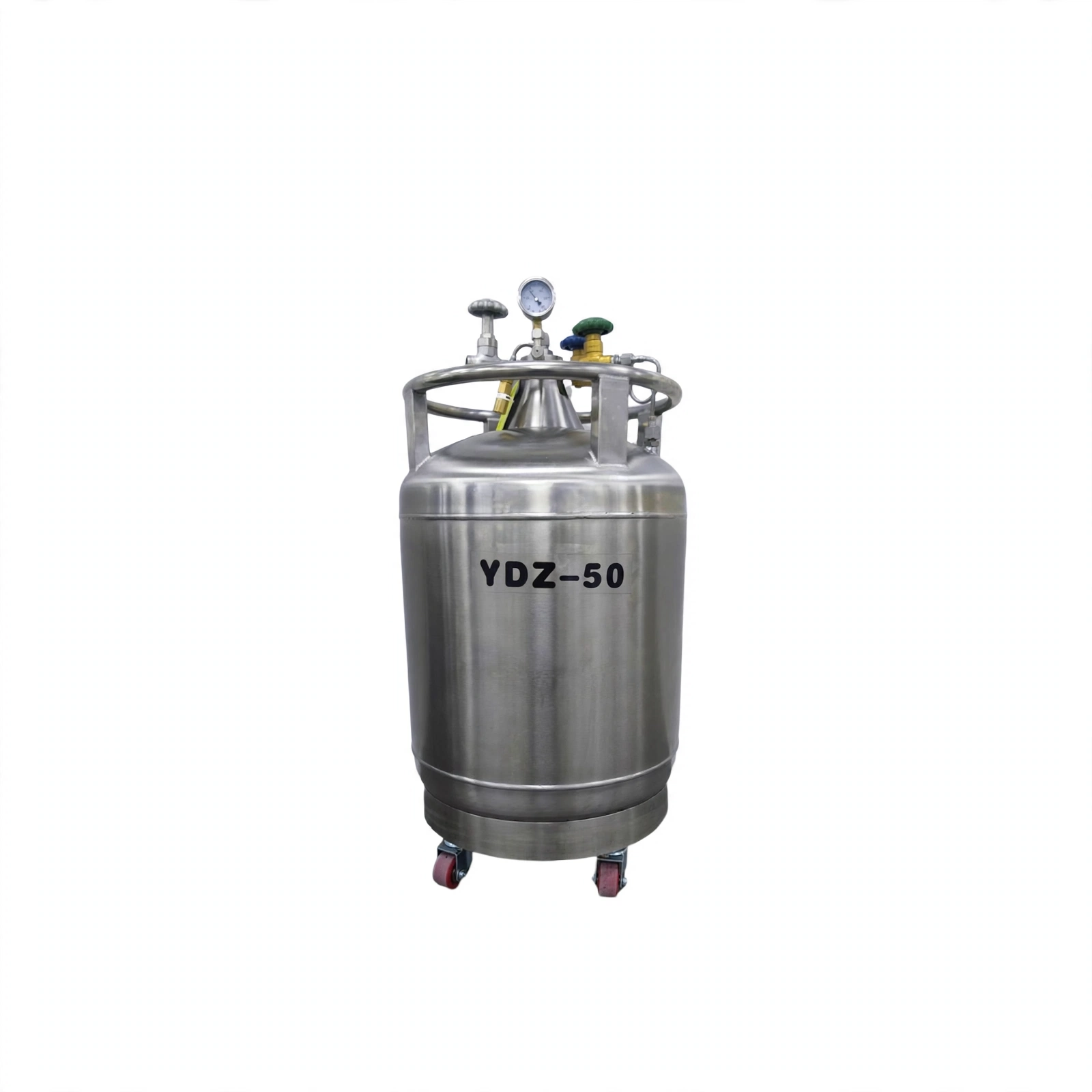

Self-pressurized Liquid Nitrogen Container YDZ Series

Model YDZ-30 YDZ-50 YDZ-100 YDZ-200

The Self-Pressurized Liquid Nitrogen Container is a high-performance storage and transportation solution designed to safely contain and dispense liquid nitrogen. It utilizes a built-in pressure system to automatically dispense nitrogen without the need for an external pressurization source.

Capacity
L / 30 / 50 / 100 / 2…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. High bearing capacity casters, easy to move.

2. Vacuum warranty for 5 years.

3. Double safety automatic control valve, with double safety protection measures, it is safer to use.

4. It has continuous pressurization and continuous liquid discharge, making the liquid supply more efficient.

5. Standard float liquid level meter for YDZ-100/YDZ-200, cannot be optional for YDZ-30/YDZ-50.

6. Made of high-quality 304 stainless steel, the ultra-low temperature globe valve is easier to operate, durable and beautiful.

Technical Parameters:

Model Unit YDZ-30 YDZ-50 YDZ-100 YDZ-200
Capacity L 30 50 100 200
Caliber mm 50 50 50 50
Empty Weight kg 56 62.5 85 136.8
Outer Diameter mm 404 454 556 656
Height mm 885 998 1120 1330
Static Evaporation Rate % 2.5 2 1.3 1.2
Standard Working Pressure MPa 0.05 0.05 0.05 0.05
Maximum Working Pressure MPa 0.09 0.09 0.09 0.09
Primary Safety Valve Opening Pressure MPa 0.099 0.099 0.099 0.099
Second Safety Valve Opening Pressure MPa 0.15 0.15 0.15 0.15
Pressure Gauge Range MPa 0~0.25 0~0.25 0~0.25 0~0.25
Standard Accessory pc

1pc of 1.5m liquid nitrogen output hose
Package Size mm 465*465*1035 505*505*1135 615*615*1290 700*700*1450
Gross Weight kg 68 78.5 85 154.8
The details

Specifications

Model
Unit / YDZ-30 / YDZ-50 / YDZ-100 / YDZ-200
Capacity
L / 30 / 50 / 100 / 200
Caliber
mm / 50 / 50 / 50 / 50
Empty Weight
kg / 56 / 62.5 / 85 / 136.8
Outer Diameter
mm / 404 / 454 / 556 / 656
Height
mm / 885 / 998 / 1120 / 1330
Static Evaporation Rate
% / 2.5 / 2 / 1.3 / 1.2
Standard Working Pressure
MPa / 0.05 / 0.05 / 0.05 / 0.05
Maximum Working Pressure
MPa / 0.09 / 0.09 / 0.09 / 0.09
Primary Safety Valve Opening Pressure
MPa / 0.099 / 0.099 / 0.099 / 0.099
Second Safety Valve Opening Pressure
MPa / 0.15 / 0.15 / 0.15 / 0.15
Pressure Gauge Range
MPa / 0~0.25 / 0~0.25 / 0~0.25 / 0~0.25
Standard Accessory
pc / 1pc of 1.5m liquid nitrogen output hose / 1pc of 1.5m liquid nitrogen output hose / 1pc of 1.5m liquid nitrogen output hose / 1pc of 1.5m liquid nitrogen output hose
Package Size
mm / 465*465*1035 / 505*505*1135 / 615*615*1290 / 700*700*1450
Gross Weight
kg / 68 / 78.5 / 85 / 154.8
How ordering works

From enquiry to delivery

  1. 01Send your enquiry

    Request a quote on WhatsApp, or add several items to your enquiry list and send them together.

  2. 02Confirm the details

    We confirm configuration, voltage, accessories, availability and a delivered price.

  3. 03We source and ship

    We handle procurement, packing and international shipping to your facility.

Need a different configuration?

Tell us the application, capacity or budget. We will suggest the right model or source an alternative.
