Liquid Nitrogen Container

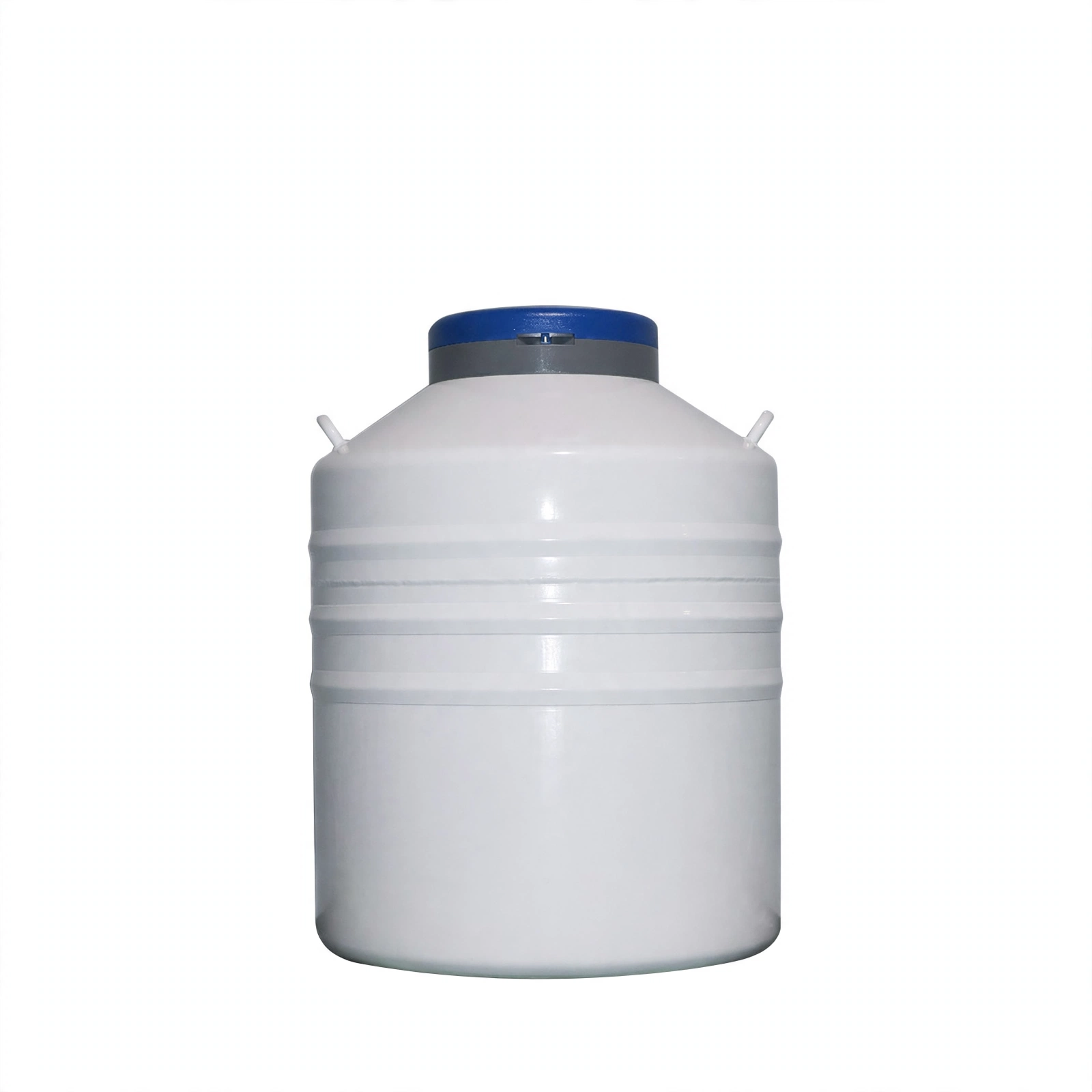

Static Storage Liquid Nitrogen Container YDS-47-127-FS

Model YDS-47-127-FS YDS-47-127LS(6) YDS-47-127 YDS-65-216-FS YDS-65-216S YDS-95-2

Liquid nitrogen tank is a kind of equipment for storing and transporting liquid nitrogen, which is mainly used in scientific research, industrial production, medical treatment and agriculture. ‌ The design of liquid nitrogen tank is based on the principle of vacuum jacket insulation invented by Dewar, which can effectively reduce the evaporation loss of liquid nitrogen due to heat convection, conduction and radiation.

Capacity
L / 47 / 47 / 47 / 65…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. High vacuum, multi-layer thermal insulation design.

2. Low static evaporation rate, ultra-low evaporation loss.

3. Made of high-quality alloy aluminum.

4. Vacuum warranty for 5 years.

5. Optional liquid level ruler.

Technical Parameters:

Model Unit YDS-47
-127-FS		 YDS-47
-127LS(6)		 YDS-47
-127		 YDS-65
-216-FS		 YDS-65
-216S		 YDS-95
-216-FS		 YDS-95
-216S		 YDS-120
-216-FS		 YDS-120

-216S

 YDS-145
-216-FS		 YDS-145
-216S		 YDS-175
-216-FS		 YDS-175

-216S
Capacity L 47 47 47 65 65 95 95 125 125 145 145 175 175
Empty Weight kg 25.7 24.1 20.2 50.8 41.5 58.3 45.7 66 52.5 71.9 53.3 79.1 57.5
Caliber mm 127 127 127 216 216 216 216 216 216 216 216 216 216
Outer Diameter mm 508 508 508 684 684 684 684 684 684 684 684 684 684
Height mm 700 700 675 770 770 790 790 970 970 975 975 1060 1060
Static Evaporation Loss L/d 0.45 0.45 0.45 0.89 0.78 0.97 0.97 0.98 0.98 0.96 0.96 0.95 0.95
Static
Holding Time		 d 105 105 105 73 83 98 98 127 127 151 151 184 184
Canister Specification mm Square:
82*84,
750pcs of 2ml vials		 Round:
104*276		 一 Square:
142*144,
1944pcs of 2ml vials		 — Square:
142*144,
2430pcs of 2ml vials		 一 Square:
142*144,
2916pcs of 2ml vials		 一 Square:

142*144, 3888/4800pcs of 2ml vials

 一 Square:
142*144,
4860pcs of 2ml vials		 —
Canister
NO.(Standard)		 pc 6 6 一 6 一 6 一 6 一 6 一 6 一
Canvas Protective
Sleeve		 pc 一 一 一 一 一 一 一 一 一 一 一 一 一
Lockable Lid set √ √ 一 √ √ √ √ √ √ √ √ √ √
Packing Size mm 575*575
*860		 575*575
*860		 575*575
*860		 760*760
*910		 760*760
*910		 760*760
*950		 760*760
*950		 760*760
*1105		 760*760
*1105		 760*760*1130 760*760
*1130		 760*760
*1200		 760*760
*1200
Gross Weight kg 29.5 27.9 24 63.7 54.4 73.9 58.7 79.9 66.4 85.9 67.5 93.5 71.9
The details

Specifications

Model
Unit / YDS-47-127-FS / YDS-47-127LS(6) / YDS-47-127 / YDS-65-216-FS / YDS-65-216S / YDS-95-216-FS / YDS-95-216S / YDS-120-216-FS / YDS-120-216S / YDS-145-216-FS / YDS-145-216S / YDS-175-216-FS / YDS-175-216S
Capacity
L / 47 / 47 / 47 / 65 / 65 / 95 / 95 / 125 / 125 / 145 / 145 / 175 / 175
Empty Weight
kg / 25.7 / 24.1 / 20.2 / 50.8 / 41.5 / 58.3 / 45.7 / 66 / 52.5 / 71.9 / 53.3 / 79.1 / 57.5
Caliber
mm / 127 / 127 / 127 / 216 / 216 / 216 / 216 / 216 / 216 / 216 / 216 / 216 / 216
Outer Diameter
mm / 508 / 508 / 508 / 684 / 684 / 684 / 684 / 684 / 684 / 684 / 684 / 684 / 684
Height
mm / 700 / 700 / 675 / 770 / 770 / 790 / 790 / 970 / 970 / 975 / 975 / 1060 / 1060
Static Evaporation Loss
L/d / 0.45 / 0.45 / 0.45 / 0.89 / 0.78 / 0.97 / 0.97 / 0.98 / 0.98 / 0.96 / 0.96 / 0.95 / 0.95
StaticHolding Time
d / 105 / 105 / 105 / 73 / 83 / 98 / 98 / 127 / 127 / 151 / 151 / 184 / 184
Canister Specification
mm / Square:82*84,750pcs of 2ml vials / Round:104*276 / 一 / Square:142*144,1944pcs of 2ml vials / — / Square:142*144,2430pcs of 2ml vials / 一 / Square:142*144,2916pcs of 2ml vials / 一 / Square:142*144, 3888/4800pcs of 2ml vials / 一 / Square:142*144,4860pcs of 2ml vials / —
CanisterNO.(Standard)
pc / 6 / 6 / 一 / 6 / 一 / 6 / 一 / 6 / 一 / 6 / 一 / 6 / 一
Canvas ProtectiveSleeve
pc / 一 / 一 / 一 / 一 / 一 / 一 / 一 / 一 / 一 / 一 / 一 / 一 / 一
Lockable Lid
set / √ / √ / 一 / √ / √ / √ / √ / √ / √ / √ / √ / √ / √
Packing Size
mm / 575*575*860 / 575*575*860 / 575*575*860 / 760*760*910 / 760*760*910 / 760*760*950 / 760*760*950 / 760*760*1105 / 760*760*1105 / 760*760*1130 / 760*760*1130 / 760*760*1200 / 760*760*1200
Gross Weight
kg / 29.5 / 27.9 / 24 / 63.7 / 54.4 / 73.9 / 58.7 / 79.9 / 66.4 / 85.9 / 67.5 / 93.5 / 71.9
