Liquid Nitrogen Tank

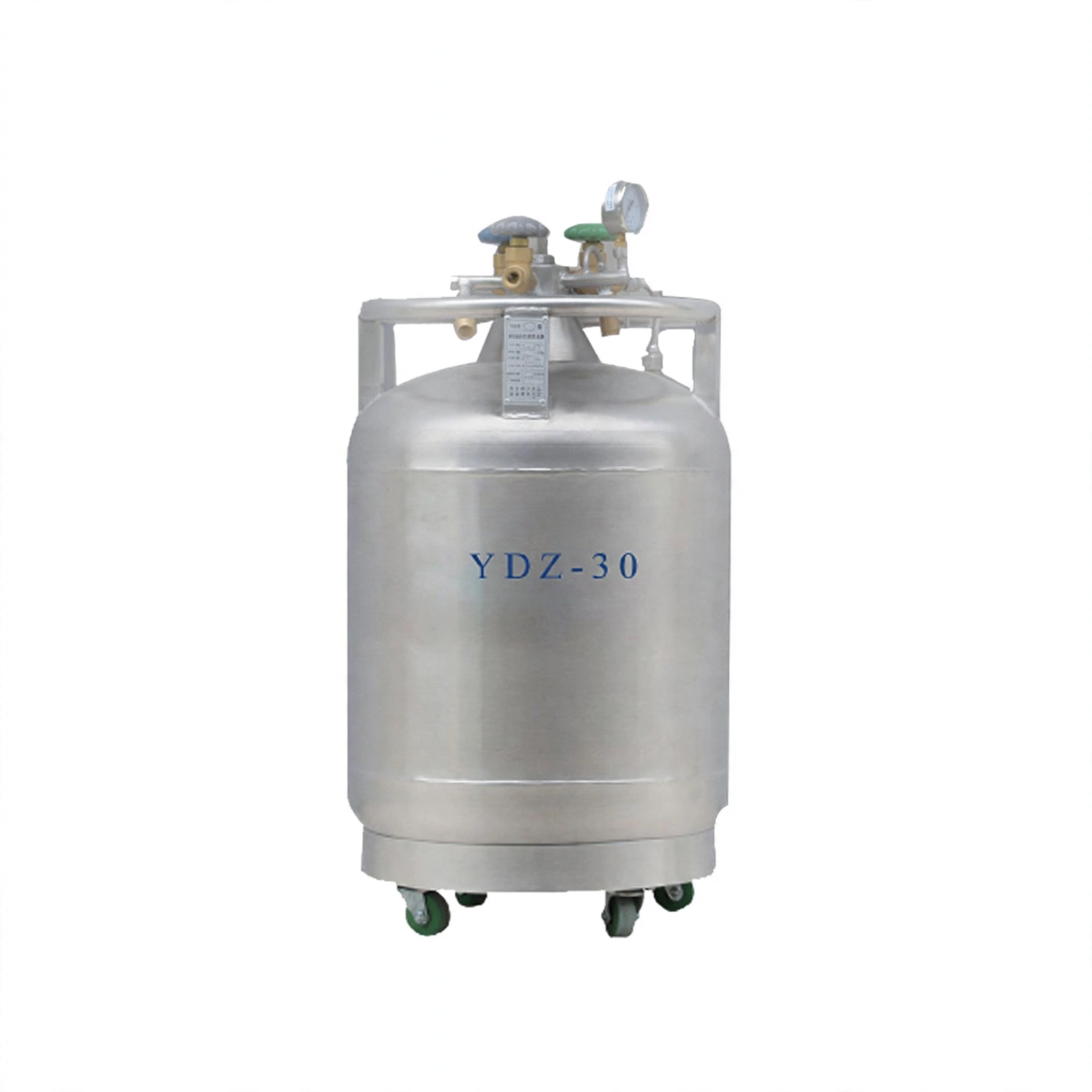

Self-pressurized Liquid Nitrogen Tank

Model YDZ-30 / YDZ-200

Features: Unique neck design, low evaporation loss rate; Has a perfect safety structure; stainless steel tank; With casters for easy movement; With protective operating ring; With liquid level gauge for YDZ-200; Optional liquid level gauge; Optional low temperature regulator; Optional low temperature solenoid valve; Optional automatic rehydration function.

Capacity
30 / 200
Net weight
45 / 120
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters:

Model YDZ-30 YDZ-200
Capacity（L） 30 200
Net Weight（kg） 45 120
Caliber（mm） 50 50
Height（mm） 850 1310
Static Evaporation Rate（L/d) 2.5 1.2
Outer Diameter（mm） 450 650
Standard Working Pressure（Mpa） 0.05 0.05
Maximum Working Pressure（Mpa） 0.09 0.09
Primary Safety Valve Opening Pressure（Mpa） 0.09 0.09
Second Safety Valve Opening Pressure（Mpa） 0.15 0.15
Pressure Gauge Range（Mpa） 0-0.25 0-0.25
The details

Specifications

Model
YDZ-30 / YDZ-200
Capacity（L）
30 / 200
Net Weight（kg）
45 / 120
Caliber（mm）
50
Height（mm）
850 / 1310
Static Evaporation Rate（L/d)
2.5 / 1.2
Outer Diameter（mm）
450 / 650
Standard Working Pressure（Mpa）
0.05
Maximum Working Pressure（Mpa）
0.09
Primary Safety Valve Opening Pressure（Mpa）
0.09
Second Safety Valve Opening Pressure（Mpa）
0.15
Pressure Gauge Range（Mpa）
0-0.25
