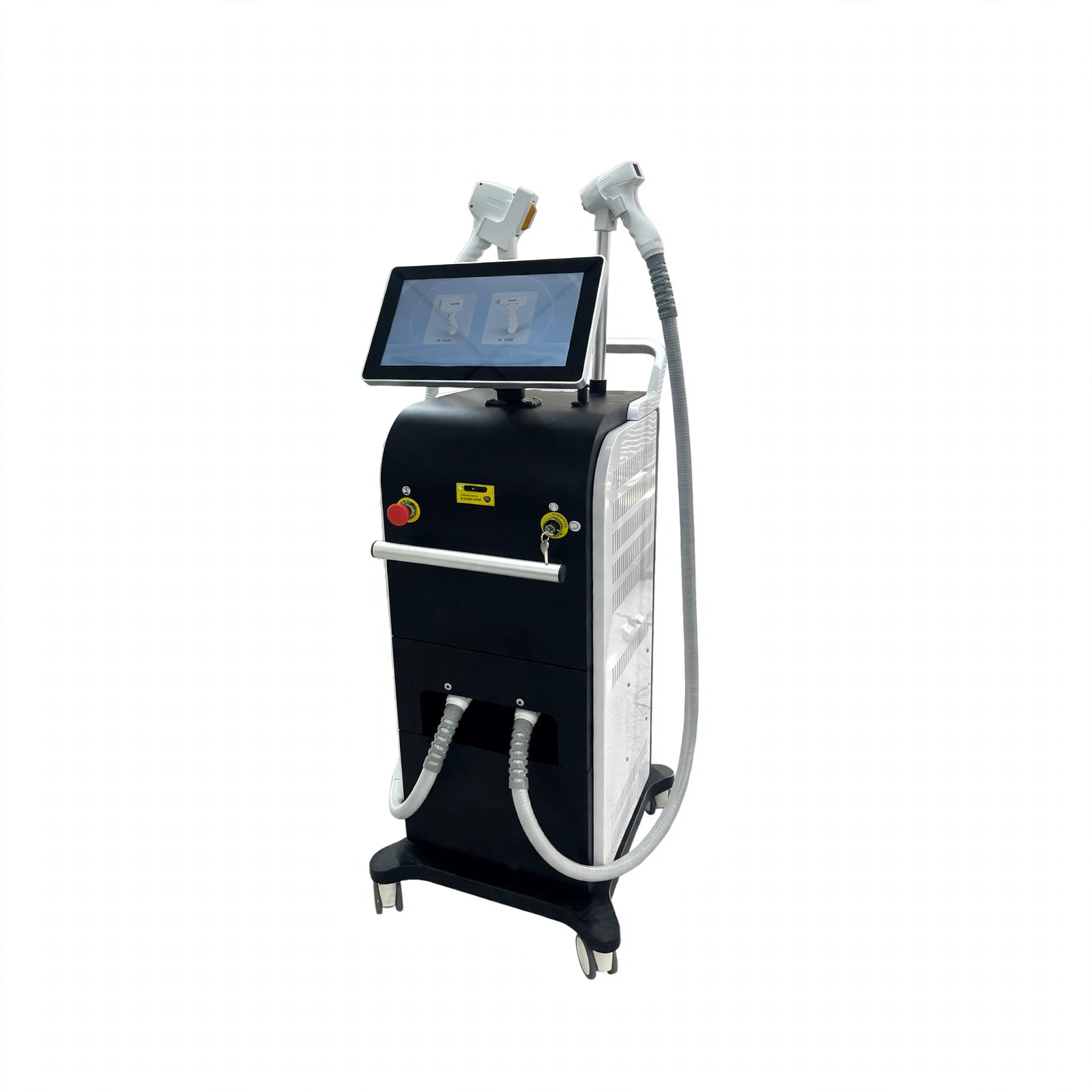

Semiconductor Laser Hair Removal Machine

Model Pilotage-400A Pilotage-400B Pilotage-400C

Achieve smooth, long-lasting hair removal with our advanced Semiconductor Laser Hair Removal Machine, engineered for both professional clinics and beauty salons.

Net weight
65kg / 60kg / 60kg
Dimensions
480*560*1370mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Main Functions:

1. 14 inches touch screen.

2. Sapphire treatment head.

3. -20°C high efficiency refrigeration.

4. Semiconductor refrigeration system.

5. Energy accuracy up to 90%.

6. 24 hours working ability.

Technical Principle:

Pilotage-400 uses standard laser with a wavelength of 808nm~810nm.

The semiconductor laser emits near-infrared light waves, which can penetrate deep into the rootof the hair follicle, heat the pigment and spread throughout the hair follicle. It can not only accurately destroy the hair follicle, but also not cause damage to adjacent tissues, and permanently remove hair.

Advantages:

1. Sapphire treatment head, can cold the skin to 0~5°C, comfortable and painless.

2. Using well-known American brand palladium strips, with more than 100 million light releases.

3. TEC cooling system and intelligent temperature monitoring sensor. The instrument can be operated continuously for 24 hours.

4. Dual layer filter element, effective removal of water ions and impurities to protect the laser.

5. 14 inch HD touch screen, USB interface for easy remote online upgrade.

6. Intelligent operating software reduces human error, and the movement module is designed for easy maintenance.

Technical Parameters:

Model Pilotage-400A Pilotage-400B Pilotage-400C
Wavelength 808nm±10nm(standard), (755nm, 755+808nm, 755+808+1064nm optional)
Laser Power 600W 1200W 600W 1200W
Spot Size 10*10mm; 10*25mm 10*10mm 10*25mm
Pulse Length

5~400ms

Energy Density

5~50J/cm²(Continuous adjustable)

Frequency

1~10Hz

Refrigeration Temperature

-20°C

Cooling Method

Closed internal circulating water cooling, semiconductor cooler cooling and air cooling

Power Supply

AC220V, 50/60Hz; AC110V, 50/60Hz(external transformer)

2000VA(2000W)

External Size(W*D*H)

480*560*1370mm

Net Weight 65kg

60kg

Package Size(W*D*H)

580*755*1260mm

Gross Weight 82kg

77kg

The details

Specifications

Model
Pilotage-400A / Pilotage-400B / Pilotage-400C
Wavelength
808nm±10nm(standard), (755nm, 755+808nm, 755+808+1064nm optional)
Laser Power
600W 1200W / 600W / 1200W
Spot Size
10*10mm; 10*25mm / 10*10mm / 10*25mm
Pulse Length
5~400ms
Energy Density
5~50J/cm²(Continuous adjustable)
Frequency
1~10Hz
Refrigeration Temperature
-20°C
Cooling Method
Closed internal circulating water cooling, semiconductor cooler cooling and air cooling
Power Supply
AC220V, 50/60Hz; AC110V, 50/60Hz(external transformer)2000VA(2000W)
External Size(W*D*H)
480*560*1370mm
Net Weight
65kg / 60kg / 60kg
Package Size(W*D*H)
580*755*1260mm
Gross Weight
82kg / 77kg / 77kg
