New Products

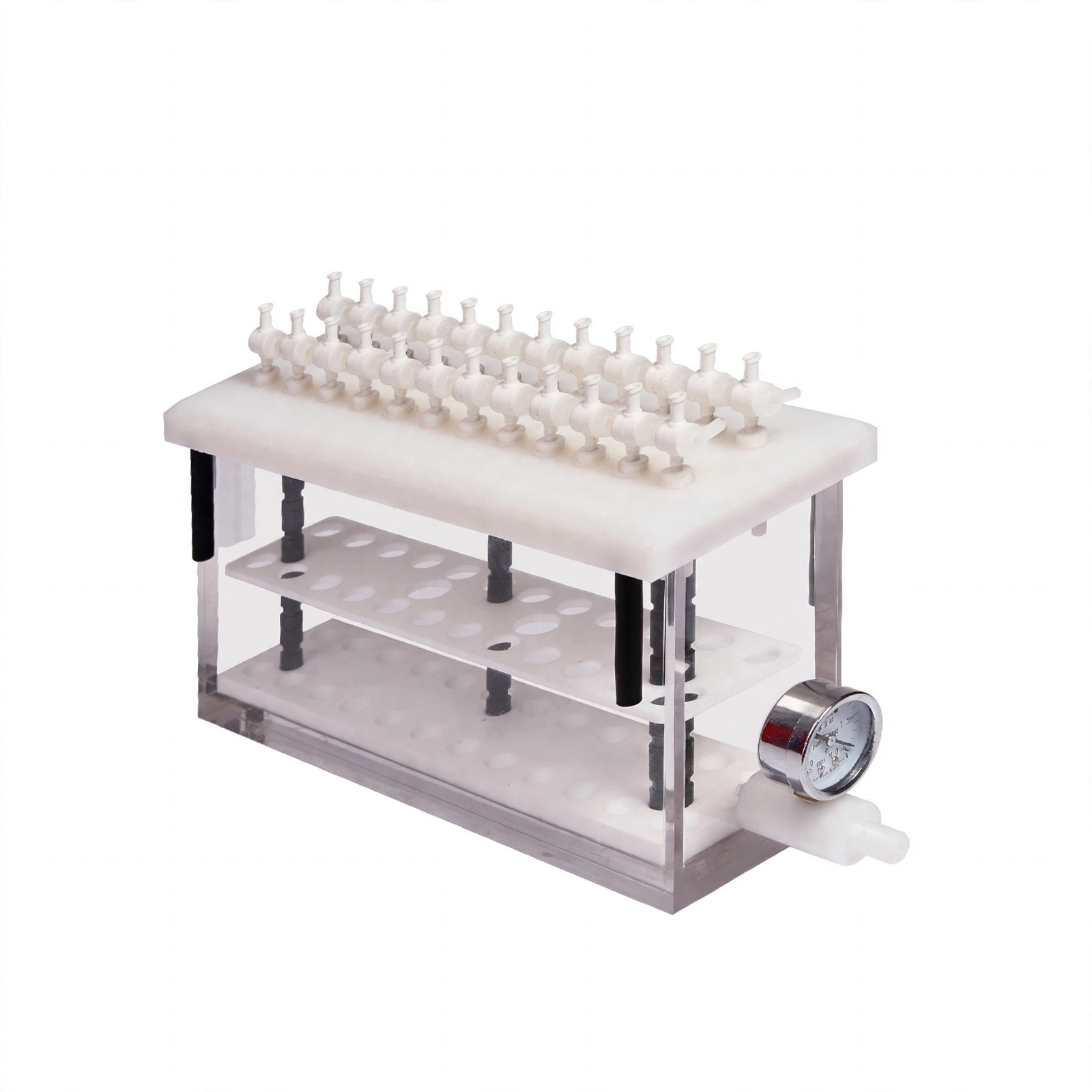

Solid Phase Extraction System

Model BK-SPE-12 BK-SPE-24

The solid phase extraction system is a negative pressure solid phase extraction device. It uses a solid adsorbent to adsorb the target compound in a liquid sample, separates it from the sample matrix and interfering compounds, and then eluates it with an eluent or heats to desorb it to achieve separation and Purpose of enrichment of target compounds(I.e. the separation, purification and enrichment of the sample), the solid phase extraction instrument aims to reduce the interference of the sample matrix and improve the detection sensitivity.

Capacity
12 / 24
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. The whole machine of 12 and 24-well square solid phase extraction instrument is made of transparent organic glass, which has strong corrosion resistance;

2. The wall thickness of the vacuum tank is uniform, so it can withstand high negative pressure above -0.096Mpa, and it will not deform after long-term high-pressure use;

3. The pressure is uniform everywhere, the air tightness is good, and the stability is strong;

4. The extraction speed is consistent, and the control and adjustment are convenient;

5. Multi-channel can be controlled independently, and the joint is corrosion-resistant;

6. The internal test tube rack of the solid phase extraction instrument is made of polytetrafluoroethylene, so it has high corrosion resistance.

Technical Parameters:

Model BK-SPE-12 BK-SPE-24
Capacity 12 24
Gas control mode

Independent control
Working zone size (mm) 210*100*138 210*120*138
Pressure display

Pressure gauge
Vacuum value

0. 098Mpa
Flow control valve 12 24
Optional Accessories

GM-DP01 Vacuum pump
Package size(mm)

460*200*290mm
Gross weight(kg) 3.6 3.8
The details

Specifications

Model
BK-SPE-12 / BK-SPE-24
Capacity
12 / 24
Gas control mode
Independent control
Working zone size (mm)
210*100*138 / 210*120*138
Pressure display
Pressure gauge
Vacuum value
0. 098Mpa
Flow control valve
12 / 24
Optional Accessories
GM-DP01 Vacuum pump
Package size(mm)
460*200*290mm
Gross weight(kg)
3.6 / 3.8
