Shaking Incubator

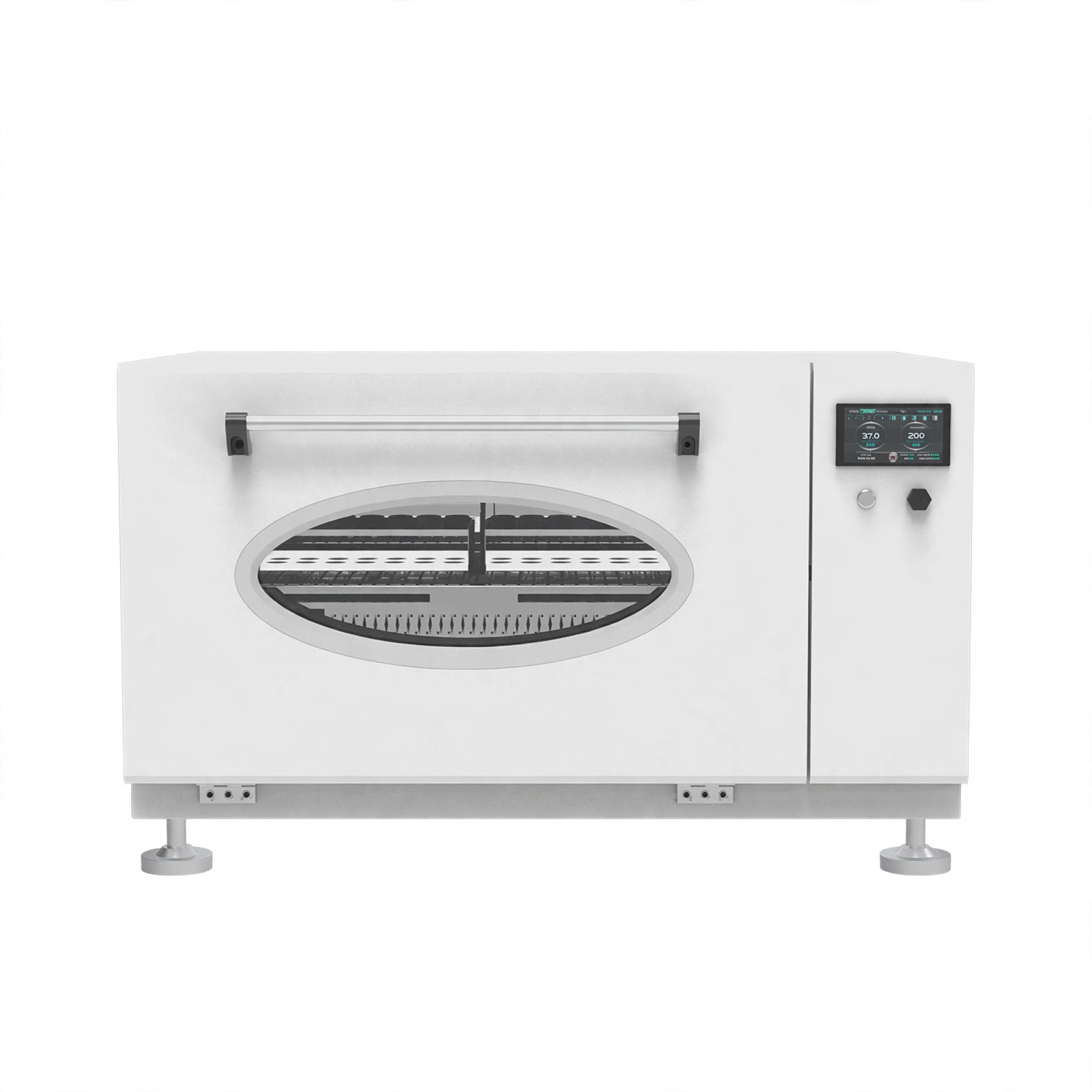

Stacked Large Capacity Shaking Incubator

Model BJPX-SDW10 BJPX-SDW20 BJPX-SDW10-L BJPX-SDW20-L Large capacity Refrigerated

The Stacked Large Capacity Shaking Incubator is designed for laboratories and research facilities requiring efficient incubation and mixing for large volumes of samples.

Max. speed
300 rpm
Capacity
200L
Temperature
RT+5~65℃ / 4~65℃ / RT…
Power
1500W / 2200W / 1500W…
Net weight
305kg / 325kg / 305kg…
Dimensions
1150*780*640mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Multiple methods to monitor equipment temperature, complete recording of information and traceability of quality control data.

2. High quality brushless DC motor, low vibration, low noise, high efficiency, maintenance free, energy saving, lasting operation.

3. 5 inch touch screen /LCD screen, clear and intuitive interface, easy to operate.

4. With UV disinfection function, the cavity to maintain a clean and sterile environment.

5. LED lighting function, open the door and turn on the light automatically.

6. With power failure recovery function, the equipment can automatically resume operation according to the original program.

7. Electric heating toughened glass perspective window, easy to observe, good temperature insulation effect, anti condensation.

Technical Parameters:

Model BJPX-SDW10 BJPX-SDW20 BJPX-SDW10-L BJPX-SDW20-L
Capacity

200L
Temp. Sensor

PT100
Temp. Range RT+5~65℃ 4~65℃ RT+5~65℃ 4~65℃
Temp. Fluctuation

≤±0.1℃
Temp. Uniformity

≤±0.45℃(37℃)
Temp. Precision

0.1℃
Timing Range

0~999h

0~9999min
Controller

PID
Display

5 inch touch screen

3-inch LCD screen
Circulation Mode

Forced convection
Shaking Mode

Rotary shaking
Drive Mode

Single axis balanced drive type
Vibration Range

Φ26mm
Rotating Speed

0, 20~300r/min
Rotating Accuracy

±1r/min
Shaking Plate Size

720*490mm
Shaking Plate Quantity

1pc
Max. Capacity

250ml*34 or 500ml*24 or 1000ml*15 or 2000ml*8 or 3000ml*6(Flask clamp)

Tube rack*4

96-well plate*21

Clamping rod shaking plate*2(For 3000ml, 1. Install a wide-mouth flask, height ≤310mm; 2. When the universal spring clamp is selected, it can not be placed)
Standard. Capacity

500ml*24
Lighting Mode

LED lamp*1
Sterilization Mode

UV lamp*2
Refrigerant / R290, 80g / R290, 80g
Ambient Temp.

15~35℃
Internal Material

304 stainless steel
External Material

Cold rolled steel sheet

Data Storage

USB data storage and output function

Standard

Optional
Printer

built-in micro printer(Optional)

(Need to be matched with USB data storage and output function)
Safety Function

Upper and lower limit over-temperature audible and visual alarm

Upper and lower limit over-speed alarm

Sensor fault identification

Independent over-temperature protector

Independent leakage or over-current protection

Refrigerator over-load protection
Consumption 1500W 2200W 1500W 2200W
Power Supply

AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
Internal Size(W*D*H)

870*590*398mm(Per unit)
External Size(W*D*H)

1150*780*640mm(Per unit)
Package Size(W*D*H)

1345*970*910mm(Per unit)
Net Weight 305kg(Per unit) 325kg(Per unit) 305kg(Per unit) 325kg(Per unit)
Gross Weight 335kg(Per unit) 355kg(Per unit) 335kg(Per unit) 355kg(Per unit)

Optional Accessory：

Model

 Specification Model Tube Rack Specification

Flask Clamp

 BS-A10 50ml

Tube Rack

 BS-A20 54-well, for 10ml centrifuge tube
BS-A11 100ml BS-A21 54-well, for 15ml centrifuge tube
BS-A12 150ml BS-A22 28-well, for 50ml centrifuge tube
BS-A13 200ml BS-A23 24-well, for 100ml centrifuge tube
BS-A14 250ml BS-A24 54-well, for 15*150mm tube
BS-A15 500ml BS-A25 54-well, for 18*180mm tube
BS-A16 1000ml BS-A26 54-well, for 20*200mm tube
BS-A17 2000ml BS-A27 32-well, for 25*200mm tube

BS-A18

3000ml

 BS-A28 28-well, for 30*200mm tube
BS-A50 54-well, for 7ml sampling tube
96-well Plate BS-A30 130*87*52mm BS-A51 54-well, for 10ml sampling tube

Clamping Rod Shaking Plate

BS-A40

320*300*70mm(for 50~2000ml conical flask)

 BS-A52 54-well, for 20ml sampling tube
BS-A53 54-well, for 30ml sampling tube
The details

Specifications

Model
BJPX-SDW10 / BJPX-SDW20 / BJPX-SDW10-L / BJPX-SDW20-L
Capacity
200L
Temp. Sensor
PT100
Temp. Range
RT+5~65℃ / 4~65℃ / RT+5~65℃ / 4~65℃
Temp. Fluctuation
≤±0.1℃
Temp. Uniformity
≤±0.45℃(37℃)
Temp. Precision
0.1℃
Timing Range
0~999h / 0~9999min / 0~9999min / 0~9999min
Controller
PID
Display
5 inch touch screen / 3-inch LCD screen / 3-inch LCD screen / 3-inch LCD screen
Circulation Mode
Forced convection
Shaking Mode
Rotary shaking
Drive Mode
Single axis balanced drive type
Vibration Range
Φ26mm
Rotating Speed
0, 20~300r/min
Rotating Accuracy
±1r/min
Shaking Plate Size
720*490mm
Shaking Plate Quantity
1pc
Max. Capacity
250ml*34 or 500ml*24 or 1000ml*15 or 2000ml*8 or 3000ml*6(Flask clamp)Tube rack*496-well plate*21Clamping rod shaking plate*2(For 3000ml, 1. Install a wide-mouth flask, height ≤310mm; 2. When the universal spring clamp is selected, it can not be placed)
Standard. Capacity
500ml*24
Lighting Mode
LED lamp*1
Sterilization Mode
UV lamp*2
Refrigerant
/ / R290, 80g / / / R290, 80g
Ambient Temp.
15~35℃
Internal Material
304 stainless steel
External Material
Cold rolled steel sheet
Data Storage
USB data storage and output function
Data Storage
Standard / Optional / Optional / Optional
Printer
built-in micro printer(Optional)(Need to be matched with USB data storage and output function)
Safety Function
Upper and lower limit over-temperature audible and visual alarmUpper and lower limit over-speed alarmSensor fault identificationIndependent over-temperature protectorIndependent leakage or over-current protectionRefrigerator over-load protection
Consumption
1500W / 2200W / 1500W / 2200W
Power Supply
AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
Internal Size(W*D*H)
870*590*398mm(Per unit)
External Size(W*D*H)
1150*780*640mm(Per unit)
Package Size(W*D*H)
1345*970*910mm(Per unit)
Net Weight
305kg(Per unit) / 325kg(Per unit) / 305kg(Per unit) / 325kg(Per unit)
Gross Weight
335kg(Per unit) / 355kg(Per unit) / 335kg(Per unit) / 355kg(Per unit)
