Shaking Incubator

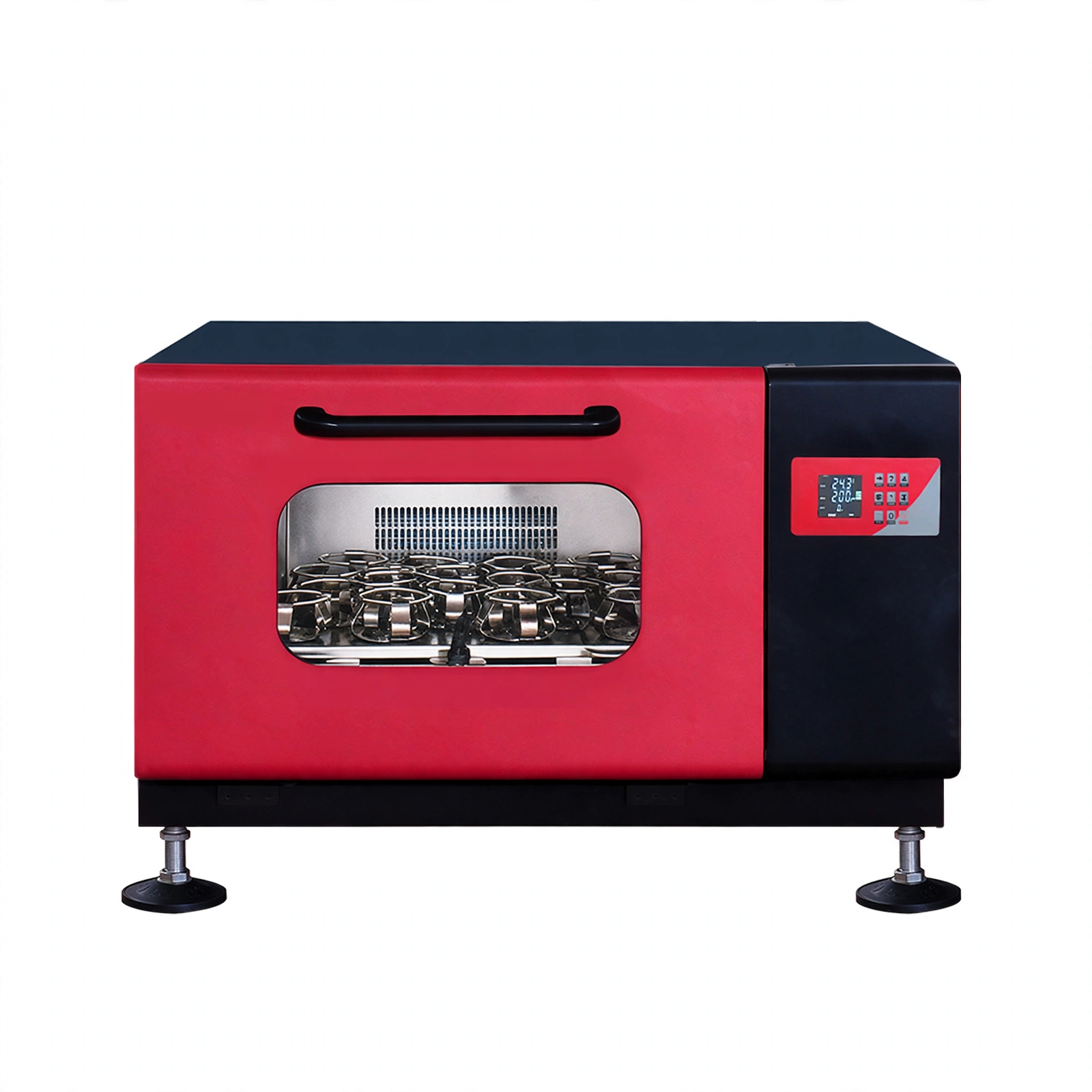

Stacked Large Capacity Shaking Incubator(BJPX-N/RN)

Model BJPX-2012N, BJPX-2012RN Large capacity Refrigerated

It is widely used in bacterial cuture, fermentation, hybridization, biochemical reaction, enzyme and celltissue research. It has extensive and major applications in research and application fields such as biology, molecular science, food, and environment.

Max. speed
350 rpm
Capacity
180L
Temperature
RT+5~65℃ / 4~65℃
Power
1000W / 1200W
Net weight
175kg / 190kg
Dimensions
1120*790*620mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. High quality servo motor.

2. Multi-steps rotate speed, temperature and time control systems.

3. Slow accelerate and decelerate design.

4. Advantaged air duct design.

5. Automatic defrosting function(only BJPX-2012RN).

6. High-precision speed control.

7. High-precision temperature control.

8. Unique drive system.

9. Open door protection.

10. LCD display with bright illumination.

11. Memorized and protected operating parameters.

12. Continuously running or timing.

13. Unique slow-start design.

14. Standard of illumination and UV light.

Technical Parameters:

Model BJPX-2012N BJPX-2012RN
Capacity

180L(Per unit)
Temp. Sensor

PT100
Temp. Range RT+5~65℃ 4~65℃(@ 20℃)
Temp. Fluctuation

≤0.1℃(@ 37℃）
Temp. Uniformity

±0.6℃(@ 37℃)
Temp. Precision

±0.1℃
Timing Range

0~9999h/min or continuous
Controller

PID
Display

LCD
Circulation Mode

Forced convection
Shaking Mode

Rotary shaking
Drive Mode

Multidimensional drive
Vibration Range

Φ26mm(Can customize φ35(20~250rpm); φ50(20~200rpm))
Rotating Speed 0; 20~350rpm(Top layer 20~300rpm, static culture, reverse rotation or alternate operation)
Rotating Accuracy

±1rpm
Shaking Plate Size

610*460mm
Shaking Plate Quantity

1pc
Max. Capacity

250ml*32 or 500ml*21 or 1000ml*13 or 2000ml*7(flask clamp)

250ml*32 or 500ml*20 or 1000ml*12 or 2000ml*8(haftplatte)
Standard Capacity

Flask clamp: 500ml*20
Internal Material

Stainless steel
External Material

Sprayed steel plate
Refrigerant / R134a
Safety Function

Audio and visual alarm for over-temperature

Alarm for over-speeds

Independent over-temperature protector

Shutdown protection for door opening

Leakage or over-current protection

Ultraviolet disinfection function

Calibration of monitoring temperature and ambient temperature

Overload protection of refrigeration unit and delayed start of incoming call(only BJPX-2012RN)
Consumption 1000W(Per unit) 1200W(Per unit)
Power Supply AC220V, 50Hz(Standard); 220V, 60Hz(Optional); 110V, 50/60Hz(Optional, external transformer)
Internal Size(W*D*H)

715*550*450mm(Per unit)
External Size(W*D*H)

1120*790*620mm(Per unit)
Package Size(W*D*H)

1275*950*810mm(Per unit)
Net Weight 175kg(Per unit) 190kg(Per unit)
Gross Weight 205kg(Per unit) 220kg(Per unit)
The details

Specifications

Model
BJPX-2012N / BJPX-2012RN
Capacity
180L(Per unit)
Temp. Sensor
PT100
Temp. Range
RT+5~65℃ / 4~65℃(@ 20℃)
Temp. Fluctuation
≤0.1℃(@ 37℃）
Temp. Uniformity
±0.6℃(@ 37℃)
Temp. Precision
±0.1℃
Timing Range
0~9999h/min or continuous
Controller
PID
Display
LCD
Circulation Mode
Forced convection
Shaking Mode
Rotary shaking
Drive Mode
Multidimensional drive
Vibration Range
Φ26mm(Can customize φ35(20~250rpm); φ50(20~200rpm))
Rotating Speed
0; 20~350rpm(Top layer 20~300rpm, static culture, reverse rotation or alternate operation)
Rotating Accuracy
±1rpm
Shaking Plate Size
610*460mm
Shaking Plate Quantity
1pc
Max. Capacity
250ml*32 or 500ml*21 or 1000ml*13 or 2000ml*7(flask clamp)250ml*32 or 500ml*20 or 1000ml*12 or 2000ml*8(haftplatte)
Standard Capacity
Flask clamp: 500ml*20
Internal Material
Stainless steel
External Material
Sprayed steel plate
Refrigerant
/ / R134a
Safety Function
Audio and visual alarm for over-temperatureAlarm for over-speedsIndependent over-temperature protectorShutdown protection for door openingLeakage or over-current protectionUltraviolet disinfection functionCalibration of monitoring temperature and ambient temperatureOverload protection of refrigeration unit and delayed start of incoming call(only BJPX-2012RN)
Consumption
1000W(Per unit) / 1200W(Per unit)
Power Supply
AC220V, 50Hz(Standard); 220V, 60Hz(Optional); 110V, 50/60Hz(Optional, external transformer)
Internal Size(W*D*H)
715*550*450mm(Per unit)
External Size(W*D*H)
1120*790*620mm(Per unit)
Package Size(W*D*H)
1275*950*810mm(Per unit)
Net Weight
175kg(Per unit) / 190kg(Per unit)
Gross Weight
205kg(Per unit) / 220kg(Per unit)
