Shaking Incubator

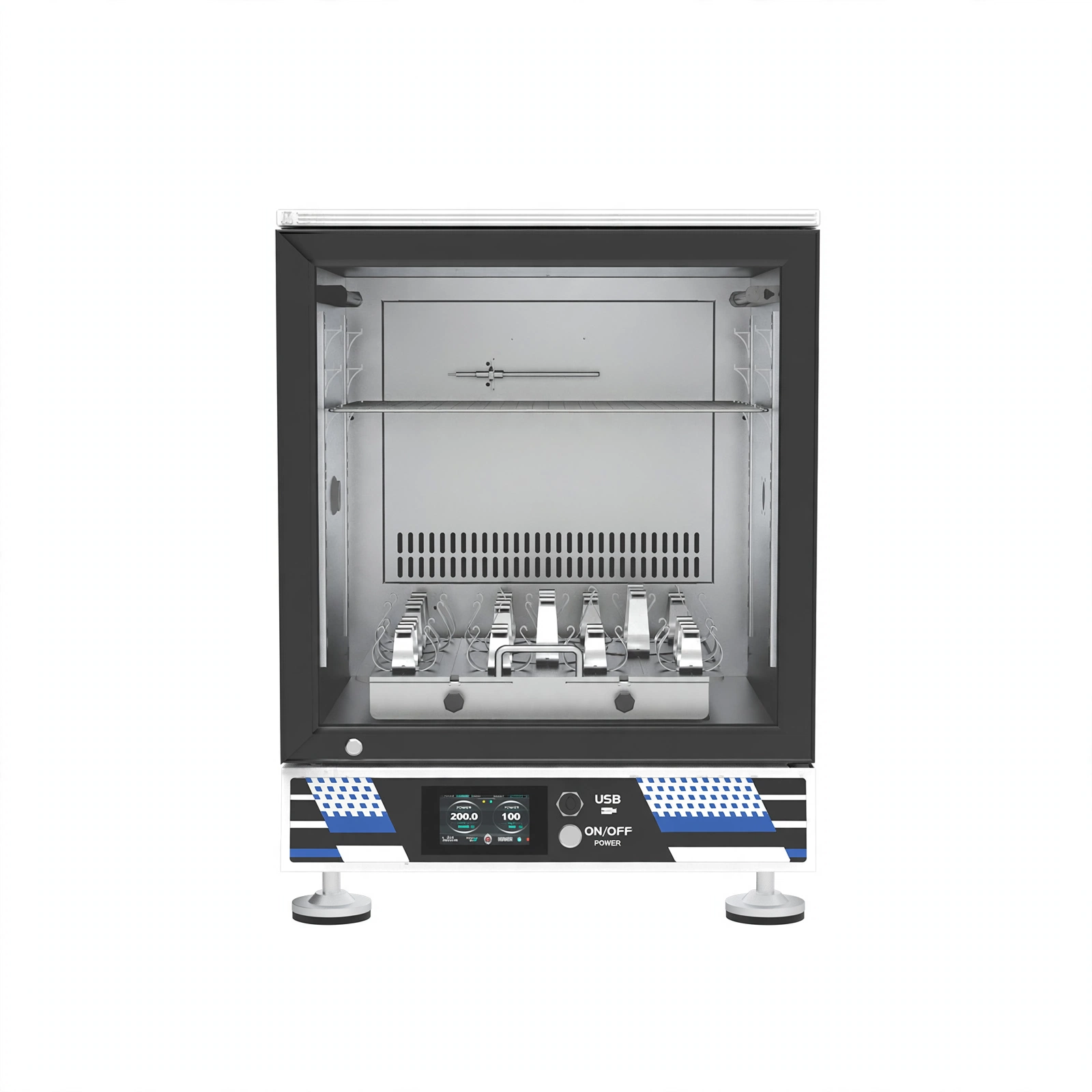

Stacked Large Capacity Shaking Incubator(BJPX-SDL)

Model BJPX-SDL10 BJPX-SDL20 Large capacity Refrigerated

The Stacked Large Capacity Shaking Incubator is a high-performance device designed for large-scale cell culture, microbial fermentation, and other temperature-sensitive shaking applications. With its stacked design, this incubator maximizes space efficiency in laboratories while offering increased capacity for simultaneous experiments.

Max. speed
300 rpm
Capacity
155L
Temperature
RT+5~60℃ / 4~60℃
Power
1200W / 1800W
Net weight
195kg / 215kg
Dimensions
650*840*810mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Brushless DC motor, low noise, lasting operation.

2. 5 inch touch screen, clear and intuitive interface.

3. Run parameter encryption lock, parameter memory function.

4. With power failure recovery function.

5. Motor overheat, temperature control, abnormal over temperature instrument automatically cut off their power supply.

6. With USB data export function to achieve data traceability.

7. With ultraviolet disinfection function.

8. Standard equipped with LED light, open the door of the box light automatically open.

Technical Parameters:

Model

 BJPX-SDL10 BJPX-SDL20

Capacity

155L

Temp. Sensor

PT100

Temp. Range

 RT+5~60℃ 4~60℃

Temp. Fluctuation

≤±0.5℃

Temp. Uniformity

≤±1℃(37℃）

Temp. Precision

0.1℃

Timing Range

0~999min

Controller

PID

Display

5-inch touch screen

Circulation Mode

Forced convection

Shaking Mode

Rotary shaking

Drive Mode

Single axis balanced drive type

Vibration Range

Φ26mm

Rotating Speed

30~300r/min

Rotating Accuracy

±1r/min

Shaking Plate Size

460*450mm

Max. Capacity

 Single Layer Shaker Plate

250ml*20 or 500ml*14 or 1000ml*9 or 2000ml*6 or 5000ml*3(Flask clamp)

Tube rack*2

96-well plate*12

Clamping rod shaking plate*1
Double Layer Shaker Plate

Upper Layer: 50ml*60 or 100ml*60 or 250ml*40 or 500ml*30(Flask clamp)

Lower Layer: Universal spring clamp

Standard. Capacity

500ml*14(Single layer)

Lighting Mode

LED lamp*1

Sterilization Mode

UV lamp*1

Refrigerant

 / R290, 80g

Ambient Temp.

15~35℃

Internal Material

304 stainless steel

External Material

Cold rolled steel sheet

Safety Function

High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm

Consumption

 1200W 1800W

Power Supply

AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)

Internal Size(W*D*H)

560*500*555mm(Per unit)

External Size(W*D*H)

 650*840*810mm(Per unit)

Package Size(W*D*H)

775*1005*1070mm(Per unit)

Net Weight

 195kg(Per unit) 215kg(Per unit)

Gross Weight

 225kg(Per unit) 245kg(Per unit)
The details

Specifications

Model
BJPX-SDL10 / BJPX-SDL20
Capacity
155L
Temp. Sensor
PT100
Temp. Range
RT+5~60℃ / 4~60℃
Temp. Fluctuation
≤±0.5℃
Temp. Uniformity
≤±1℃(37℃）
Temp. Precision
0.1℃
Timing Range
0~999min
Controller
PID
Display
5-inch touch screen
Circulation Mode
Forced convection
Shaking Mode
Rotary shaking
Drive Mode
Single axis balanced drive type
Vibration Range
Φ26mm
Rotating Speed
30~300r/min
Rotating Accuracy
±1r/min
Shaking Plate Size
460*450mm
Max. Capacity
Single Layer Shaker Plate / 250ml*20 or 500ml*14 or 1000ml*9 or 2000ml*6 or 5000ml*3(Flask clamp)Tube rack*296-well plate*12Clamping rod shaking plate*1
Max. Capacity
Double Layer Shaker Plate / Upper Layer: 50ml*60 or 100ml*60 or 250ml*40 or 500ml*30(Flask clamp)Lower Layer: Universal spring clamp
Standard. Capacity
500ml*14(Single layer)
Lighting Mode
LED lamp*1
Sterilization Mode
UV lamp*1
Refrigerant
/ / R290, 80g
Ambient Temp.
15~35℃
Internal Material
304 stainless steel
External Material
Cold rolled steel sheet
Safety Function
High/low temperature, abnormal shutdown, motor failure, equipment door is not closed properly automatic alarm, alarm mode is sound and light alarm
Consumption
1200W / 1800W
Power Supply
AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
Internal Size(W*D*H)
560*500*555mm(Per unit)
External Size(W*D*H)
650*840*810mm(Per unit)
Package Size(W*D*H)
775*1005*1070mm(Per unit)
Net Weight
195kg(Per unit) / 215kg(Per unit)
Gross Weight
225kg(Per unit) / 245kg(Per unit)
