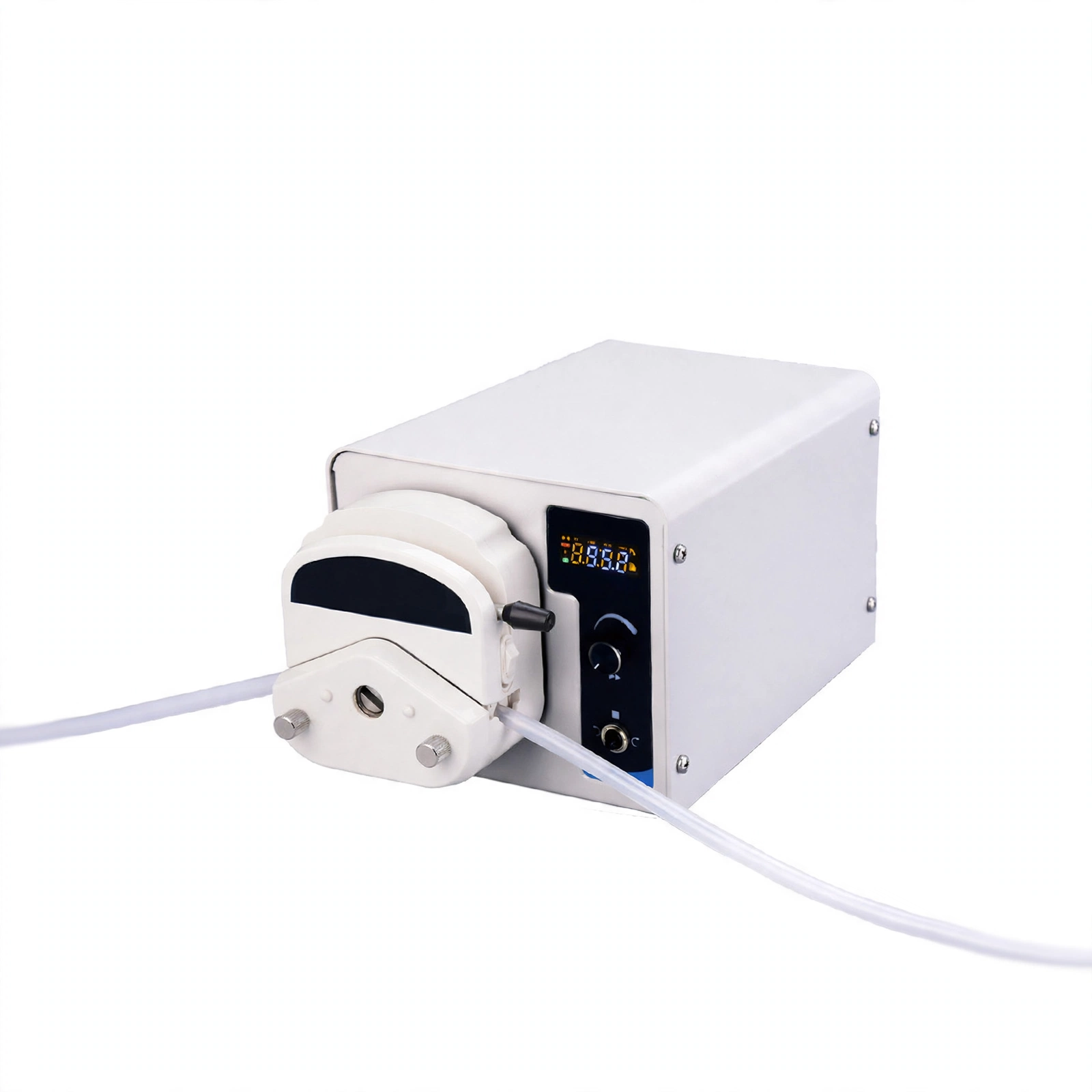

The Standard Peristaltic Pump is a robust and reliable fluid handling device designed for precise, contamination-free transfer of liquids in laboratory, medical, and industrial applications.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. LED display.
2. Support RS485/MODBUS communication protocol, analog control(0~5V, 0~10V, 4~20mA…) foot switch control.
3. Program control.
4. Memory function data will be stored in time after power off.
5. Full speed function one button to control full speed operation, used for quick cleaning, filling and emptying tubes, etc.
Technical Parameters:
| Model | SPP-BT100M | SPP-BT300M | SPP-BT600M |
| Pump Head |
YZ1515X, YZ2515X, DG series(only SPP-BT100M) |
||
| Speed Range | 0.1~100rpm(Reversible) | 0.1~300rpm(Reversible) | 0.1~600rpm(Reversible) |
| Speed Resolution |
0.1rpm |
||
| Flow Range | 0.0015~380ml/min | 0.007~1140ml/min | 0.007~2280ml/min |
| Filling Precision |
<±0.5% |
||
| Display |
4-LED display |
||
| Back Suction Speed | 10~100rpm |
10~300rpm |
|
| Optional Accessory |
Foot switch |
||
| Environmental
Conditions |
Temperature: 0~ 40°C; Humidity: <80%, no condensation |
||
| Consumption | 22W | 35W | 50W |
| Power Supply |
AC110/220V±10%, 50/60Hz |
||
| Instrument Size(W*D*H) |
234*154*143mm |
254*184*150mm | |
| Package Size(W*D*H) |
393*243*243mm |
403*283*253mm | |
| Gross Weight |
5.15kg |
5.8kg | |
Pump Head:
Pump Parameters:
|
Standard Peristaltic |
Model | SPP-BT100M | SPP-BT300M | SPP-BT600M | |
| Speed Range Tubing |
0.1~100rpm
(Reversible) |
0.1~300rpm
(Reversible) |
0.1~600rpm
(Reversible) |
||
|
Pump Head&Single |
YZ1515x | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 0.007~380ml/min | 0.007~1140ml/min | 0.007~2280ml/min |
| YZ2515x | 15#, 24# | 0.17~290ml/min | 0.17~870ml/min | 0.17~1740ml/min | |
| 2*YZ1515x | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 0.007~380ml/min | 0.007~1140ml/min | 0.007~2280ml/min | |
| 2*YZ2515x | 15#, 24# | 0.17~290ml/min | 0.17~870ml/min | 0.17~1740ml/min | |
| DG-1(6) |
0.5*0.8, 1*1, 2*1, 2.4*0.8, 3*1 |
0.002~36ml/min | / | / | |
| DG-1(10) | 0.0015~27ml/min | / | / | ||
| DG-2(6) | 0.002~36ml/min | / | / | ||
| DG-2(10) | 0.0015~27ml/min | / | / | ||
| DG-4(6) | 0.002~36ml/min | / | / | ||
| DG-4(10) | 0.0015~27ml/min | / | / | ||
Remark: Customers can choose any one model hose as the standard configuration and the standard length is 2 meters.
