Peristaltic pumps are mainly used for various liquid transfer. The peristaltic pump driver provides power to drive the pump head to run, and the rotor in the pump head rotates, relying on the pumping efficiency generated by the alternate extrusion and release of several rotors along an elastic hose to work. The squeezed fluid in the tube produces flow output, and when the tube returns to its original state by its own elasticity after the pressure disappears, the volume increases, a vacuum is generated, the fluid is sucked in, and the cycle is repeated.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features：
1. Full speed function: realize fast filling and emptying.
2. Speed regulation function: The speed can be adjusted manually, or controlled through an external control interface.
3. Direction function: reversible forward and reverse.
4. Display function: display the current speed, direction and status.
5. Power-off memory function: memorize the working state before power-off(continuous work for more than 5s).
Technical Parameters：
| Model | SPP-100-2J | SPP-300-2J |
| Speed Range | 0.1~100rpm | 0.1~300rpm |
| Speed Resolution | 0.1rpm | 0.1~99.9rpm: 0.1rpm; 100~300rpm: 1rpm |
| Adjusting Method |
Membrane button continuous adjustment |
|
| Display |
LED displays current speed |
|
| Power | ≤30W | ≤75W |
| Flow Range | 0.0002~380ml/min | 0.06~1140ml/min |
| External Size |
254*140*140mm |
|
| Protection Class |
IP31 |
|
| Pump Model |

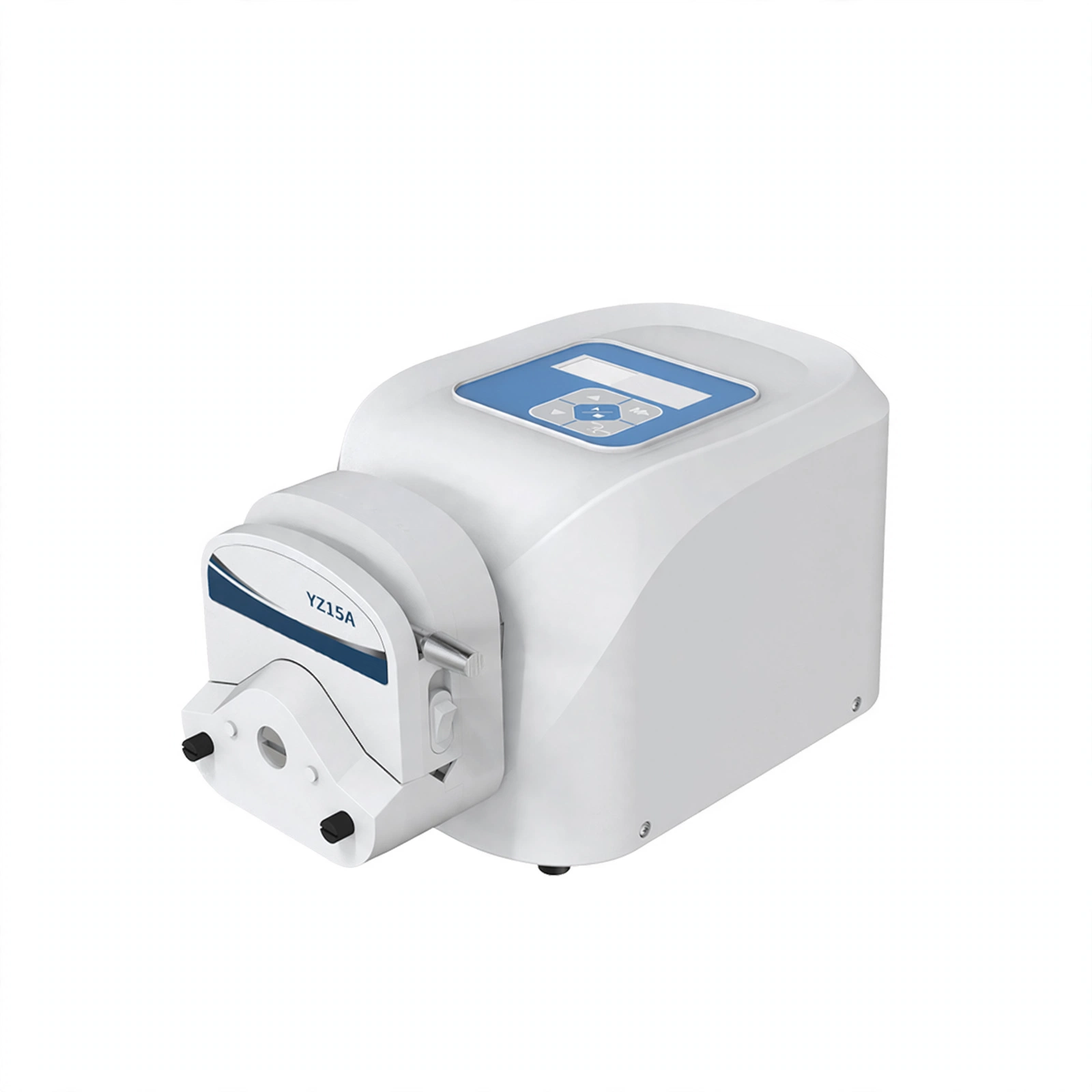

YZ15A |
|
| Suitable Pump Hose |
13# 14# 19# 16# 25# 17# 18# |
|
| Ambient Temperature |
10℃~40℃ |
|
| Relative Humidity |
≤80% |
|
| Atmosphere Pressure |
860hPa~1060hPa |
|
| Power Supply | 100~240V, 50/60Hz | 100~270V, 50/60Hz |
| Full Speed Function |
Fast filling and emptying |
|
| Speed Adjustable Function |
Manual speed adjustment |
|
| Direction Function |
Reversible |
|
| Display Function |
Display current speed,direction and status |
|
| Power-off memory function |
Memory of working status before power failure(working continuously for more than 5 seconds) |
|
| Standard Accessories |
YZ15A pump head, 2 meters of 14# pump hose |
|
| Optional Accessory |
Foot switch |
|
| Packing Size |
390mm*340mm*240mm |
|
| Gross Weight |
3.3kg |
|
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
The Dispensing Peristaltic Pump is an advanced liquid handling device designed for precise and controlled dispensing of a wide range of fluids.
Peristaltic pump is mainly used for the transmission of various liquids. The drive provides power to drive the pump head, and the rotor inside the pump head rotates, relying on several rotors along an elastic hose alt…

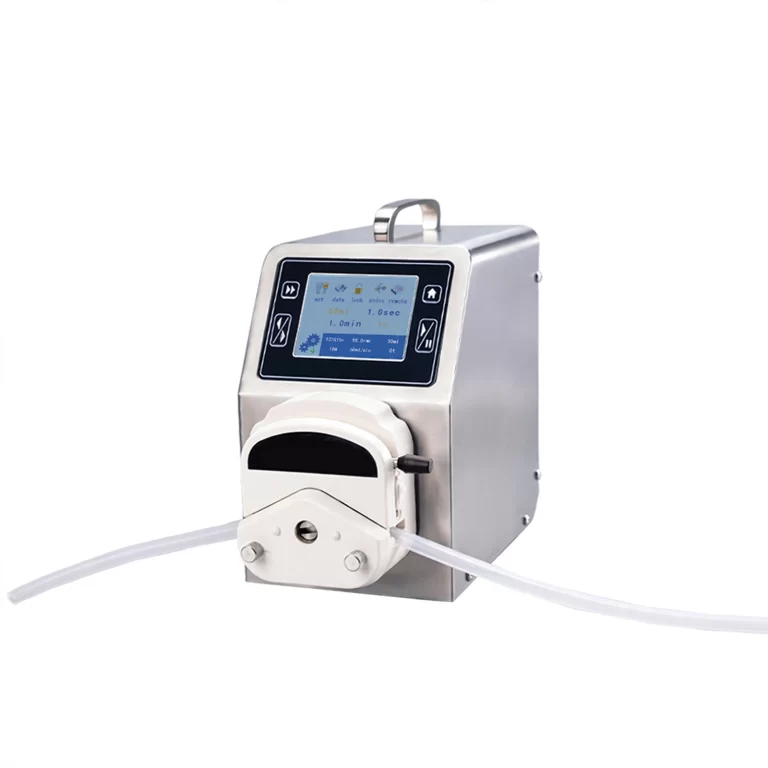

The Dispensing Peristaltic Pump is an advanced liquid handling device designed for precise and controlled dispensing of a wide range of fluids.
