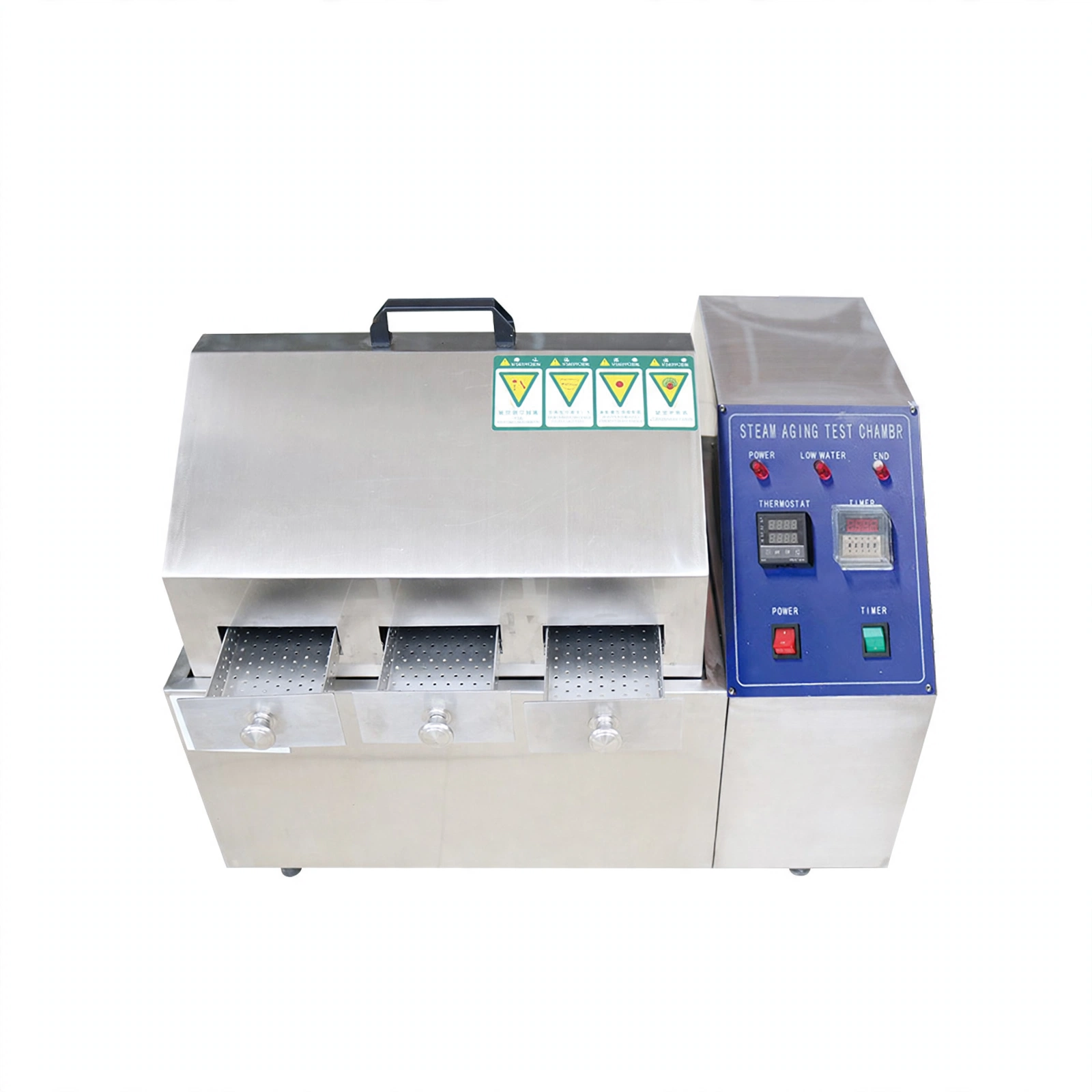

Steam Aging Test Chamber

Model BK-SA-500

Steam aging test chamber is a device used for material aging performance testing. It accelerates the aging process of materials by simulating a high-temperature and high-humidity environment, thereby assessing their durability and stability in actual use. It is widely applied in industries such as electronics, automotive manufacturing, aerospace, building materials, and rubber and plastics.

Power
2000W
Net weight
22kg
Dimensions
730*500*570mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Both the inner and outer chamber are made of high-quality 304 stainless steel.

2. Equipped with water shortage protection, overheating protection, and safety warning light.

3. Automatic water replenishment system activates when water level is low.

4. There are three test chambers that can conduct tests simultaneously.

Technical Parameters:

Model BK-SA-500
Heating System U-shaped stainless steel heating tube
Control Function PID+SSR, digital display
Heating Up Time About 45min(RT~97℃)
Temp. Accuracy ±1℃
Temp. Uniformity ±1℃
Steam Temperature 97℃
Humidity Range ≥97±3%
Timing Function 1~9999h/m/s(With timer alarm function, power off upon time completion)
Power 2000W
Power Supply AC100~240V, 50/60Hz
Test Chamber Size(W*D*H) 100*35*280mm*3
Internal Size(W*D*H) 500*170*400mm
External Size(W*D*H) 730*500*570mm
Package Size(W*D*H) 850*600*660mm
Net Weight 22kg
Gross Weight 48kg

Note: The device heats up relatively slowly at 110V. To achieve rapid heating, an external transformer can be optionally equipped.

The details

Specifications

Model
BK-SA-500
Heating System
U-shaped stainless steel heating tube
Control Function
PID+SSR, digital display
Heating Up Time
About 45min(RT~97℃)
Temp. Accuracy
±1℃
Temp. Uniformity
±1℃
Steam Temperature
97℃
Humidity Range
≥97±3%
Timing Function
1~9999h/m/s(With timer alarm function, power off upon time completion)
Power
2000W
Power Supply
AC100~240V, 50/60Hz
Test Chamber Size(W*D*H)
100*35*280mm*3
Internal Size(W*D*H)
500*170*400mm
External Size(W*D*H)
730*500*570mm
Package Size(W*D*H)
850*600*660mm
Net Weight
22kg
Gross Weight
48kg
