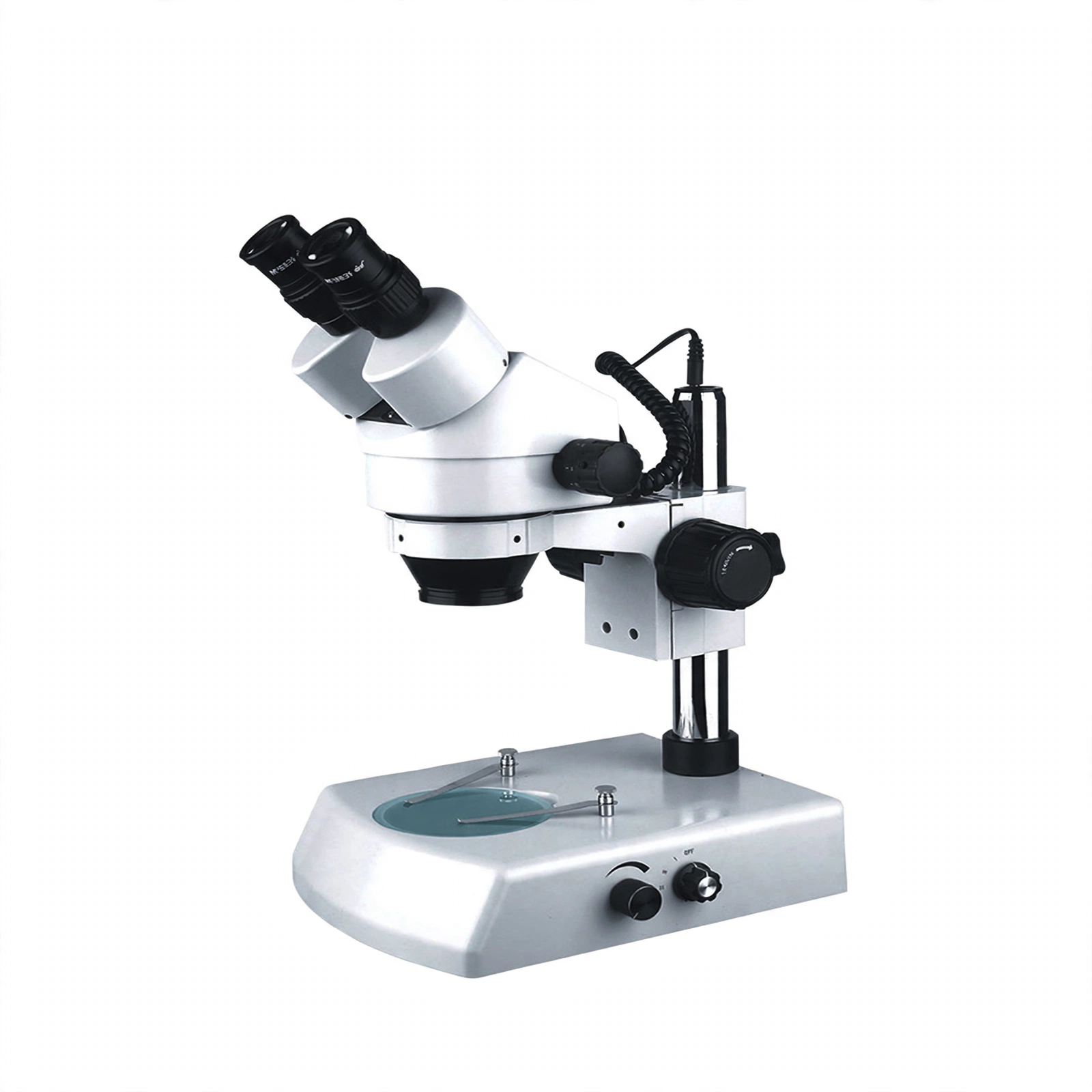

A stereo zoom microscope is a kind of microscope that provides stereo vision and continuous zoom function, mainly used for observing and studying objects. It combines the features of stereo microscopy and zoom microscopy to provide clear stereoscopic images in three-dimensional space, and the magnification can be continuously changed by adjusting the lens assembly.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model | Specification | SZM-45 | SZM-45T |
|
Observation Head |
Binocular observation head tilted 45 ° | √ | |
| Trinocular body tilted 45° | √ | ||
| Digital stereoscope body 45° tilt | |||
| Eyepiece | High point wide field of view adjustable eyepiece WF10X | √ | √ |
| Zoom Objective | 0.7X~4.5X | √ | √ |
| Zoom Ratio | 6.4:1 | √ | √ |
| Working Distance | 100mm | √ | √ |
| Focusing Bracket | Focusing frame adjustment knob | √ | √ |
| Interpupillary Distance | 55~75mm | √ | √ |
| Uplighting | LED lights | √ | √ |
| Downlighting | LED lights | √ | √ |
| Power Supply | AC100~240V, 50/60Hz | √ | √ |
| Package | Foam carton | √ | √ |
| Packing Size(W*D*H) | mm |
500*260*370 |
|
| Gross Weight | kg |
8 |
|
| Model | ST-20 | ST-40 |
ST-60 |
|
| Lighting | Natural light binocular | Transmissive illuminator/oblique light binocular |
Ring light binocular |
|
| Observation Head&Main Body | Straight head | Tilt observation, rotatable body |
Tilt viewing body can be rotated 360° |
|
| Objective Lens | 2X | 2X&4X, rotate 90° |
2X&4X, 360° rotation |
|
| Working Distance | 80mm | 57mm |
100mm |
|
| Eyepiece |
WF10X |
WF10X | ||
| Power Supply | / |
AC100~240V, 50/60Hz |
||
| Packing Size(W*D*H) | 300*200*150mm | 360*170*290mm |
400*250*360mm |
|
| Gross Weight | 3kg | 6kg |
8kg |
|
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
