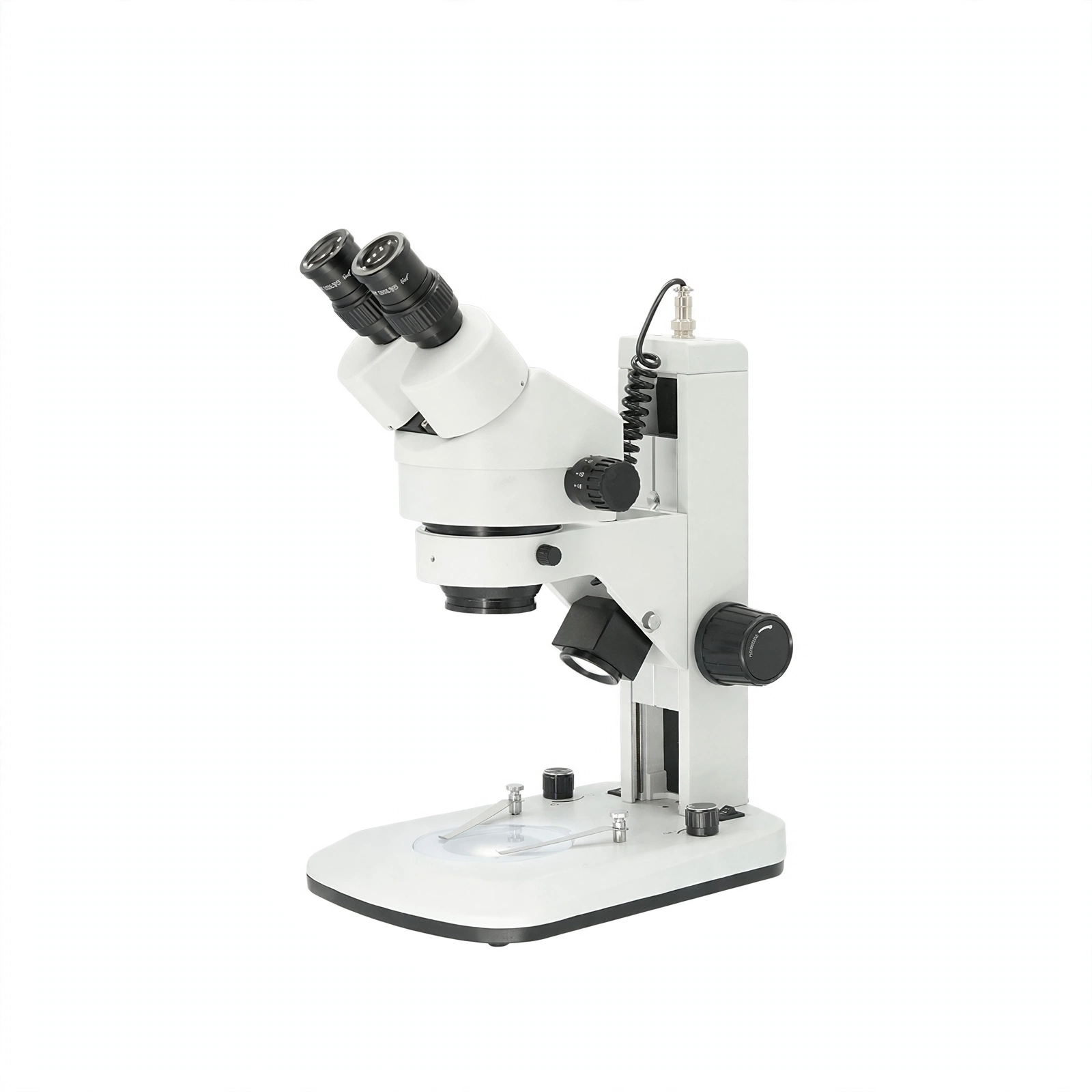

A stereo zoom microscope is a kind of microscope that provides stereo vision and continuous zoom function, mainly used for observing and studying objects. It combines the features of stereo microscopy and zoom microscopy to provide clear stereoscopic images in three-dimensional space, and the magnification can be continuously changed by adjusting the lens assembly.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
| Model |
SZM-XTZD |
||
|
Eyepiece (Working distance 100mm) |
10X, φ20mm |
Magnification | Field diameter |
| 7X | 28mm | ||
| 45X | 4.3mm | ||
|
20X, φ10mm (Optional) |
Magnification | Field diameter | |
| 14X | 14.3mm | ||
| 90X | 2.2mm | ||
|
Objective (Working distance 30mm) |
2X (Optional) |
Magnification | Field diameter |
| 28X | 7.1mm | ||
| 180X | 1.1mm | ||
| Magnification |
7~45X |
||
| Interpupillary Distance |
55mm~75mm |
||
| Focusing Bracket |
Hole, φ76mm |
||
| Slide Focusing Range |
60mm |
||
| Working Distance |
235mm |
||
| Light Source |
12V 3W, LED light |
||
| Stage |
Glass stage, φ95mm |
||
| Base Size |
Size: 275mm*205mm, thickness: 33mm |
||
| Power Supply |
AC100~240V, 50/60Hz |
||
| Package Size (W*D*H) |
490*415*330mm |
||
| Gross Weight |
8kg |
||
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
