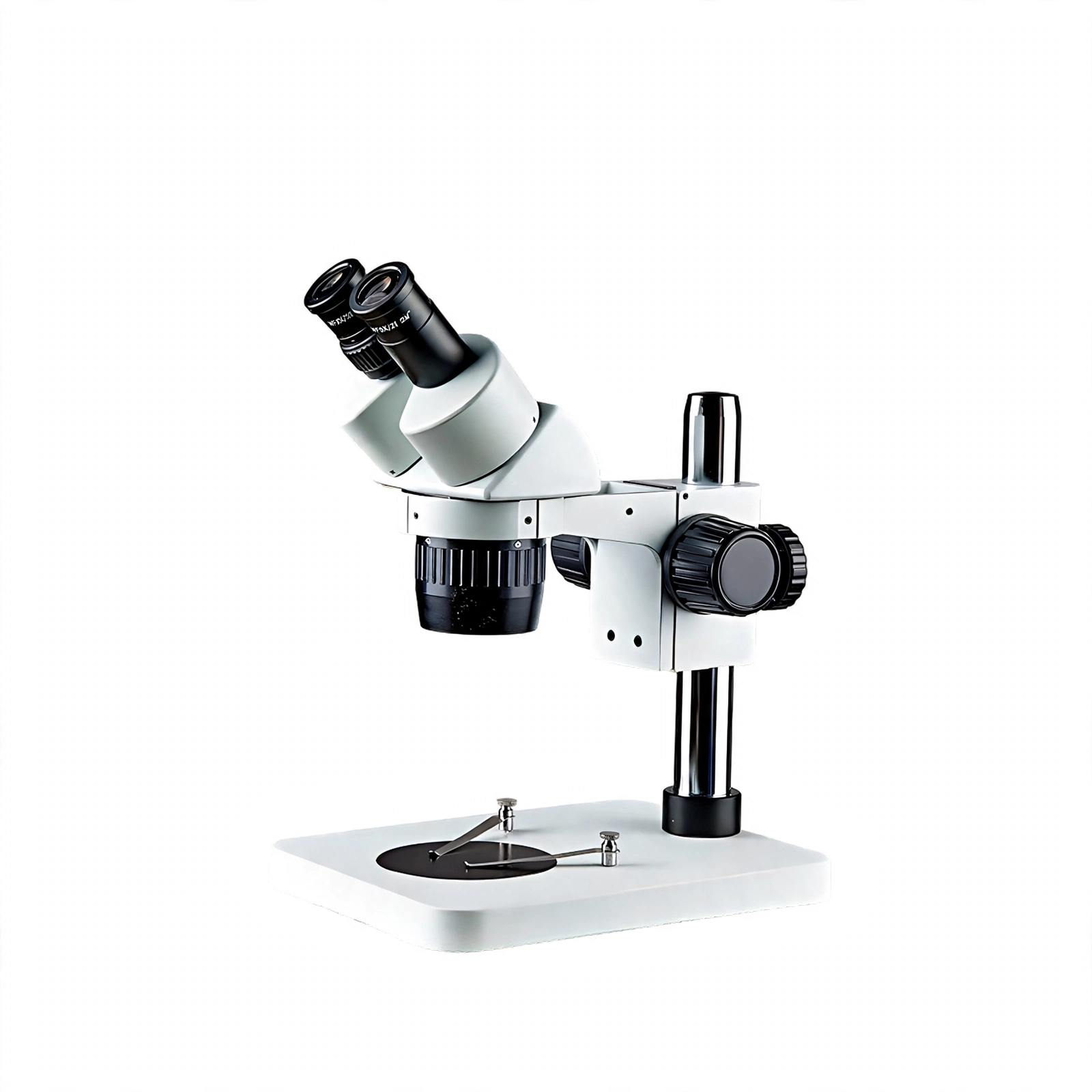

The stereozoom microscope is a microscope that combines zoom technology and stereoscopic microscopy, which allows the user to view the sample in different focal planes, resulting in a sharper and three-dimensional image. The stereo zoom microscope adjusts the focal length through the zoom technology to observe different levels of the sample, while the stereo microscopy technology combines multiple view images of the sample into a stereo image to display the three-dimensional structure of the sample.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
|
Model |
SZM-EB2040C | SZM-E2040C | SZM-E40X | |
|
Objective |
2X Objectives | / | / | / |
| 4X Objectives | / | / | √ | |
| 2X&4X Objectives Can Convertible | √ | √ | / | |
| Eyepiece | Wide Field Eyepiece:
WF10X(WF20X optional) |
√ | √ | √ |
|
Viewing Head |
Binocular, tilted 45°, pupil distance 48~75mm | √ | √ | / |
| Binocular, 90° straight cylinder, pupil distance 48~75mm | / | / | √ | |
|
Base |
φ60 black and white tabletop, slicing and pressing | / | / | √ |
| φ90 black and white tabletop, slicing and pressing, complimentary φ90 glass panels | 260*380*20mm
Large flat base |
√ | / | |
|
Light Source |
No light source | / | / | √ |
| Upper light source | / | / | / | |
| Up and down light sources | √ | √ | / | |
| Lighting | 100~230V/12V, 5W LED | √ | √ | / |
|
Package Size(W*D*H)mm |
515*268*380 | 370*180*300 | 160*220*310 | |
|
Gross Weight(kg) |
5 | 3.2 | 1.7 | |
|
Model |
SZM-E0745C | SZM-E0745CS | SZM-E0745CLT | SZM-E0745CLTS | |
| Objective | 0.7~4.5X zoom objective | √ | √ | √ | √ |
| Eyepiece | Wide Field Eyepiece: WF10X(20mm)(WF20X optional) | √ | √ | √ | √ |
|
Viewing Head |
Binocular, tilted 45°, pupil distance 48~75 | √ | / | √ | / |
| Trinocular tilted 45°Pupil distance 48~75 | / | √ | / | √ | |
| 90°straight tube, C-interface | / | / | / | / | |
|
Base |
260*380*20mm | / | / | / | / |
| 200*255*22mm | / | / | / | / | |
| 200*255*60mm | √ | √ | / | / | |
| 205*275*40mm | / | / | √ | √ | |
|
Light Source |
No light source | / | / | / | / |
| Upper light source | / | / | √ | / | |
| Up and down light sources | √ | √ | √ | √ | |
| Can optional LED circular light | √ | √ | √ | √ | |
| Lighting | 100~230V/12V, 5W LED | √(Optional: 220V/6V 20W or 110V/6V 20W halogen lamp) | √(Optional: 220V/6V 20W or 110V/6V 20W halogen lamp) | √ | √ |
|
Package Size(W*D*H)mm |
515*268*380 | 515*268*380 | 510*360*295 | 510*360*295 | |
|
Gross Weight(kg) |
6.2 | 6.5 | 7 | 7.5 | |
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
