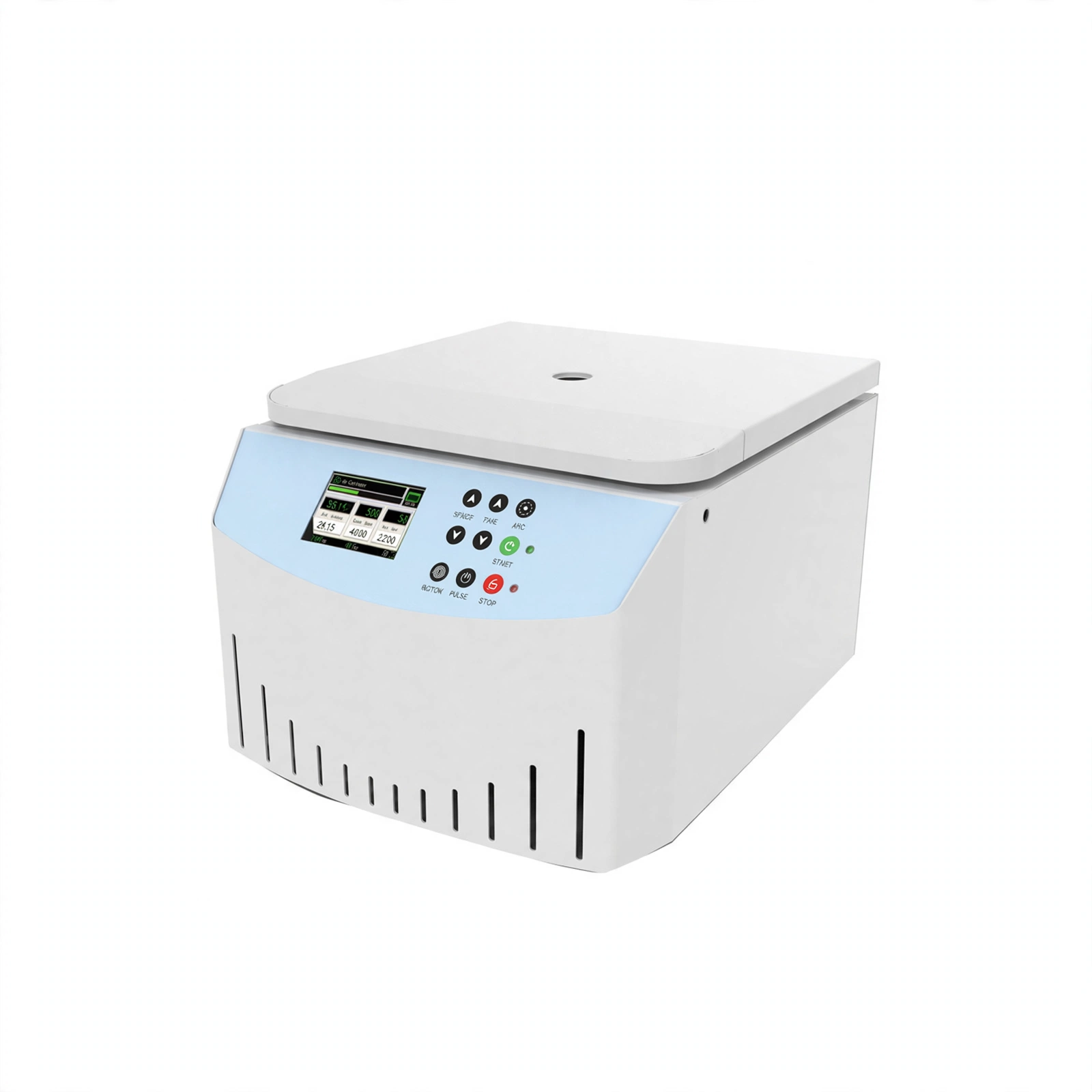

Table Top Low Speed Centrifuge BKC-TL5E – Overflowing Tech (OBTC)

A closer look

About this equipment

Features:

1. Embedded microprocessor control, push-button programming.

2. Can store and recall 20 sets of operating programs.

3. Support speed 1rpm and time 1s fine-tuning; power-down self-recovery.

4. Adjustable parameters during operation, convenient and quick.

5. 10 lifting rates to choose from, fast lifting speeds.

6. Equipped with program memory function, automatically retains the parameters from the last run and automatically restores the set parameters before shutdown.

7. Automatic door opening and alert when centrifugation is complete.

8. Multi-stage shock absorption, multiple protection for over-speed, imbalance and door cover.

Technical Parameters:

Model	BKC-TL5E
Max Speed	5000rpm
Max RCF	3500×g
Max Capacity	42100ml
Speed Precision	±1% or ±20rpm
Timing Range	1s~999min
Noise	≤65dB
Consumption	500W
Power Supply	AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional, external transformer)
External Size(WDH)	615450368mm
Package Size(WDH)	770600660mm
Net Weight	44kg
Gross Weight	60.5kg

Rotor:

No.	Rotor	Capacity	Max. Speed(rpm)	Max. RCF(×g)	Adapter
No.1	Swing Rotor Support	4*250ml	/	/	/
	Hanging Cup	4*250ml	4000	3023	/
	Adapter	41100ml	4000	2379	/
		4150ml		2379	/
		4910ml		2379	/
	Tube Rack	4450ml	4000	3500	/
		4250ml(▲)		3500	/
		4205ml		3500	/
		4185ml blood collection tube(L106mm)		3500	72*2ml
		4125ml blood collection tube(L75mm)		3500	/
		4125ml blood collection tube(L100mm)		3500	48*2ml
		4125ml blood collection tube(L106mm)		3500	48*2ml
		4105ml blood collection tube(L106mm)		3500	40*2ml
No.2	Angle Rotor	12*10ml	5000	3440	12*5ml
No.3	Angle Rotor	18*10ml	5000	3516	18*5ml
No.4	Angle Rotor	24*10ml	5000	3516	24*5ml
No.5	Angle Rotor	8*15ml	5000	3300	/
No.6	Angle Rotor	12*15ml	5000	3438	/
No.7	Angle Rotor	12*20ml	5000	3360	/
No.8	Angle Rotor	4*50ml	5000	3400	/
No.9	Angle Rotor	6*50ml	5000	3281	/
No.10	Angle Rotor	4*100ml	4000	2100	/

Note: The default is round-bottom tube, with mark (▲) is sharp-bottom tube. The swing rotor should select support+hanging cup+adapter or support+tube rack.

The details

Specifications

Model: BKC-TL5E
Max Speed: 5000rpm
Max RCF: 3500×g
Max Capacity: 4*2*100ml
Speed Precision: ±1% or ±20rpm
Timing Range: 1s~999min
Noise: ≤65dB
Consumption: 500W
Power Supply: AC220V, 50/60Hz(Standard);AC110V, 60Hz(Optional, external transformer)
External Size(W*D*H): 615*450*368mm
Package Size(W*D*H): 770*600*660mm
Net Weight: 44kg
Gross Weight: 60.5kg
