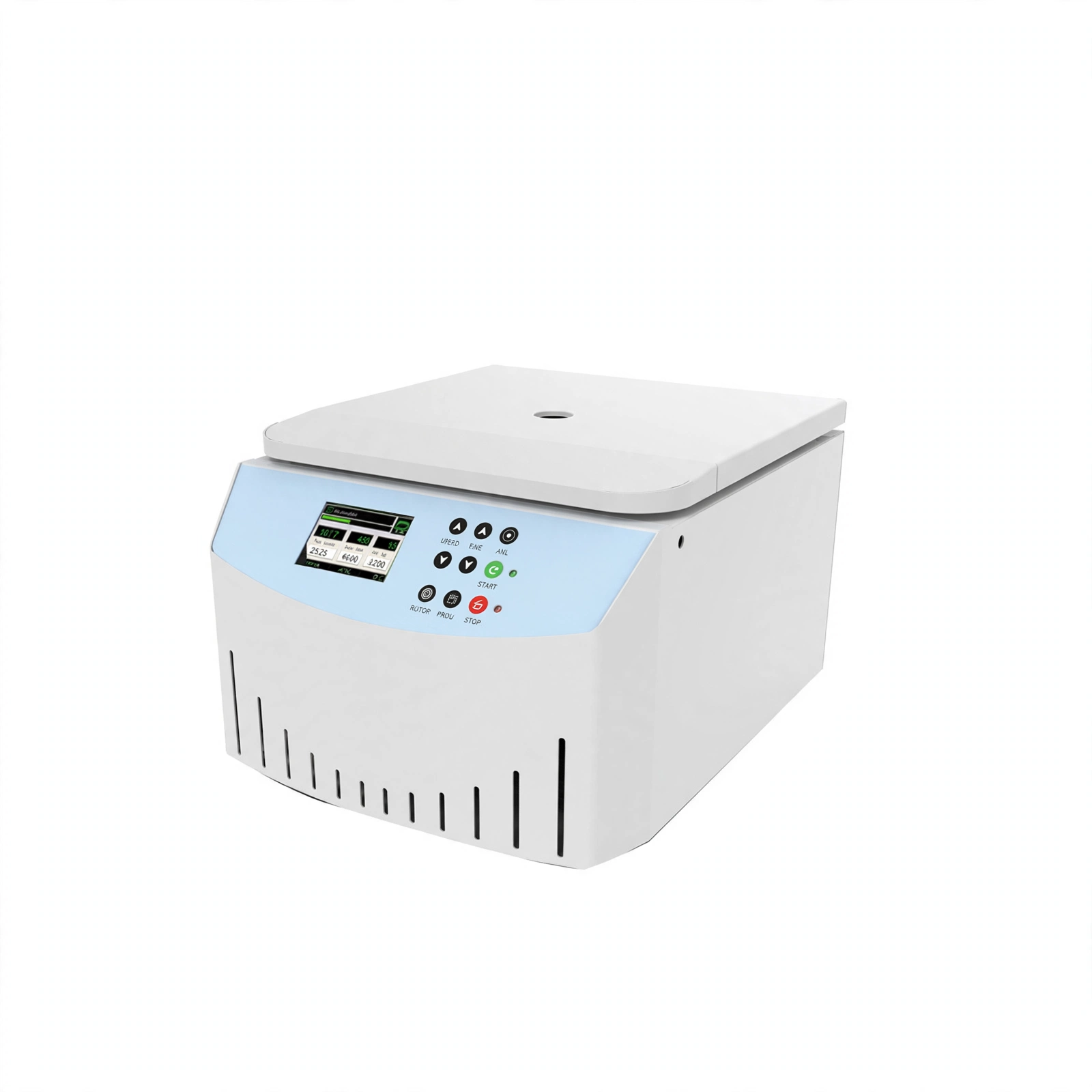

Table Top Low Speed Centrifuge BKC-TL5M – Overflowing Tech (OBTC)

A closer look

About this equipment

Features:

1. Embedded microprocessor control, push-button programming.

2. Can store and recall 20 sets of operating programs.

3. Support speed 1rpm and time 1s fine-tuning; power-down self-recovery.

4. Adjustable parameters during operation, convenient and quick.

5. 10 lifting rates to choose from, fast lifting speeds.

6. Equipped with program memory function, automatically retains the parameters from the last run and automatically restores the set parameters before shutdown.

7. Automatic door opening and alert when centrifugation is complete.

8. Multi-stage shock absorption, multiple protection for over-speed, imbalance and door cover.

Technical Parameters:

Model	BKC-TL5M
Max Speed	5000rpm
Max RCF	4390×g
Max Capacity	2000ml
Speed Precision	±20rpm
Timing Range	1s~999min
Noise	≤70dB
Consumption	550W
Power Supply	AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional, external transformer)
External Size(WDH)	615450368mm
Package Size(WDH)	770600660mm
Net Weight	44kg
Gross Weight	60.5kg

Rotor:

No.	Rotor	Capacity	Max. Speed(rpm)	Max. RCF(×g)	Adapter
No.1	Swing Rotor Support	4*500ml	/	/	/
	Hanging Cup	4*500ml	/	/	/
	Adapter	4*250ml	4000	3023	/
		42100ml		3023	/
		4*100ml(▲)		3023	/
		4*100ml		3023	/
		4350ml		3023	/
		4250ml		3023	/
		4*50ml		2808	/
		4430ml PP tube		2808	/
		4915ml		2808	/
		4815ml(▲)		2808	/
		4815ml		2808	/
		41210ml		3184	/
		4125ml blood collection tube		2808	48*2ml
	Tube Rack	41610ml	4000	2810	/
		4207ml PP tube		3139	/
		4245ml blood collection tube(106mm)		3032	96*2ml
		4245ml blood collection tube(100mm)		3032	96*2ml
		4205ml blood collection tube(106mm)		3050	80*2ml
		4242ml blood collection tube		2585	/
		4202ml blood collection tube(80mm)		3050	/
		4251.5ml		2808	/
No.2	Swing Rotor Support	4*250ml	/	/	/
	Hanging Cup	4*250ml	/	/	/
	Adapter	41100ml	4000	2379	/
		4150ml		2379	/
		4910ml		2379	/
	Tube Rack	4450ml	4000	3500	/
		4250ml(▲)		3023	/
		4205ml		3139	/
		4185ml blood collection tube(L106mm)		2808	72*2ml
		4125ml blood collection tube(L75mm)		2808	/
		4125ml blood collection tube(L100mm)		2808	48*2ml
		4125ml blood collection tube(L106mm)		2808	48*2ml
		4105ml blood collection tube(L106mm)		2808	40*2ml
No.3	Swing Rotor Support	SUS304 Support	/	/	/
	Hanging Basket	42100ml	4000	3175	/
		41100ml		3007	/
		4250ml		3022	50ml(▲), 15ml(●)
		4150ml		2846	50ml(▲), 15ml(●)
		4815ml		3030	15ml(▲), 10ml(▲), 10ml blood collection tube, 5ml blood collection tube, 2ml blood collection tube(L75)
		4615ml		2705
		4415ml		2705
		4810ml		3030	/
		4610ml		2705	/
		4410ml		2705	/
No.4	Microplate Rotor	2296well	4000	2300	/
No.5	Angle Rotor	12*10ml	5000	3440	12*5ml
No.6	Angle Rotor	18*10ml	5000	3516	18*5ml
No.7	Angle Rotor	24*10ml	5000	3516	24*5ml
No.8	Angle Rotor	8*15ml	5000	3300	/
No.9	Angle Rotor	12*15ml	5000	3438	/
No.10	Angle Rotor	12*20ml	5000	3360	/
No.11	Angle Rotor	4*50ml	5000	3400	/
No.12	Angle Rotor	6*50ml	5000	3281	/
No.13	Angle Rotor	4*100ml	4000	2100	/

Note: The default is round-bottom tube, with mark (▲) is sharp-bottom tube. The swing rotor should select support+hanging cup+adapter or support+tube rack.

The details

Specifications

Model: BKC-TL5M
Max Speed: 5000rpm
Max RCF: 4390×g
Max Capacity: 2000ml
Speed Precision: ±20rpm
Timing Range: 1s~999min
Noise: ≤70dB
Consumption: 550W
Power Supply: AC220V, 50/60Hz(Standard);AC110V, 60Hz(Optional, external transformer)
External Size(W*D*H): 615*450*368mm
Package Size(W*D*H): 770*600*660mm
Net Weight: 44kg
Gross Weight: 60.5kg
