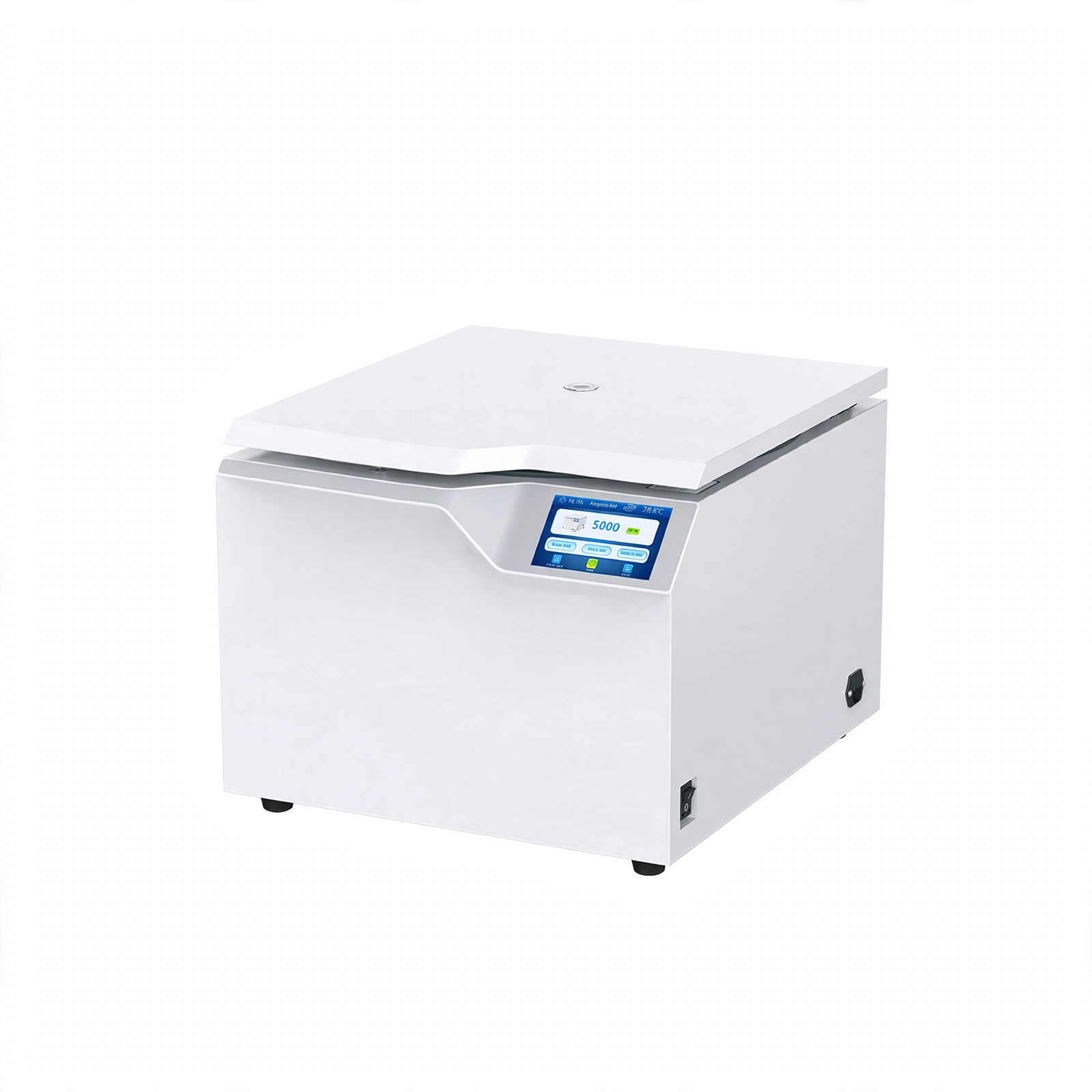

Table Top Low Speed Large Capacity Centrifuge BKC-TL5C

A closer look

About this equipment

Features:

1. It can store 100 programs, automatic memory form the lasting running programs.

2. Adjustable acceleration levels: 20, deceleration levels: 20.

3. All-metal structure multi-layer explosion-proof design, strong and durable.

4. Embedded microprocessor control, DC brushless motor drive, maintenance free, smooth operation.

5. 5 inch touch LCD screen, real-time display all running parameters, the operation interface is intuitive and simple.

6. Support small language customization.

7. Mechanical and electrical integration door lock, easy to use, safe and reliable.

8. Silicone integral sealing ring to avoid aerosol overflow.

9. With self-test, block, overspeed, imbalance, over temperature detection and alarm functions, excellent shock absorption device.

10. Store multiple groups of user-defined programs, boot for the last program.

11. Optional automatic rotor recognition.

Technical Parameters:

Model	BKC-TL5C
Max. Speed	5000rpm
Max. RCF	3962xg
Max. Capacity	4*500ml
Speed Precision	±10rpm
Time Range	1s~99h59min/Continuous/Short-span
Power Supply	Standard: AC220V, 50/60Hz Optional: AC110V, 50/60Hz
Noise	≤65dB(A)
External Size(LWH)	500620410mm
Package Size(LWH)	620740710mm
Net Weight	56kg
Gross Weight	80kg(220V), 85kg(110V)

Rotor:

Type	NO.	Volume	Max. Speed(r/min)	Max. RCF(xg)	Adapters
Swing Rotor	5M00024	48*2/3/4/5/7ml blood collection tube	4000	2952	/
	5M00025	48*5/7ml blood collection tube		2952	2/3/4ml blood collection tube
	5M00026	72*2/3/4/5/7ml blood collection tube		2808	/
	5M00052	80*2/3/4/5/7ml blood collection tube		2808	/
	5M00027	96*2/3/4/5/7ml blood collection tube		3104	/
	5M00029	16*10/15ml		2957	2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲)
	5M00030	24*10/15ml		2957
	5M00031	32*10/15ml		2952
	5M00080	48*15ml		3282	/
	5M00032	4*50ml	4500	3962	50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5/2ml
	5M00033	8*50ml	4000	2952	50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5/2ml
	5M00034	4*100ml	4500	3962	162/3/4ml blood collection tube, 165/7ml blood collection tube
	5M00036	8*100ml	4000	3077	322/3/4ml blood collection tube, 325/7ml blood collection tube
	5M00037	4*250ml(▲)		3578	/
	5M00038	4*250ml(flat bottom)		2780	481.5/2ml, 402/3/4/5/7ml blood collection tube, 482/3/4/5/7ml blood collection tube, 2410ml(▲), 2810ml, 2015ml, 450ml(▲), 850ml(●), 4*100ml
	5M00053	4*250ml(biosafety)		3041
	5M00058	4*300ml		3220	/
	5M00039	4*500ml(flat bottom)		3130	482/3/4/5/7ml blood collection tube, 642/3/4/5/7ml blood collection tube, 3610ml(●), 3610ml(▲), 3615ml(●), 3615ml(▲), 1250ml(●), 1250ml(▲), 1650ml(●), 1650ml(▲), 4815ml(▲), 4250ml, 3215ml(▲), 4810ml(●)
	5M00054	4*500ml(biosafety)		3399
	5M00040	4*500ml(▲)		3578	/
Auto Uncapped Swing Rotor	5M00047	80*2/3/4/5/7ml blood collection tube(auto uncapped)		3220	/
Microplate Rotor	5M00045	2296well		2361	/
Microplate Rotor	5M00043	4296well		2987	/
Angle Rotor	5M00072	12*20ml	5000	3516	15ml, 10ml, 5ml, 1.5/2ml
	5M00073	12*15ml		3354	1.5/2ml, 2/3/4ml blood collection tube
	5M00074	8*15/20ml		2655	1.5/2ml, 2/3/4ml blood collection tube
	5M00069	24*10/15ml		3494	2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲)
	5M00075	24*10ml		3354	1.5/2ml, 2/3/4ml blood collection tube
	5M00076	18*10ml		3354
	5M00077	12*10ml		3354
	5M00084	6*50ml		2711	50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5/2ml

Note: With mark(●) or no mark is round-bottom tube, with mark(▲) is sharp-bottom tube.

The details

Specifications

Model: BKC-TL5C
Max. Speed: 5000rpm
Max. RCF: 3962xg
Max. Capacity: 4*500ml
Speed Precision: ±10rpm
Time Range: 1s~99h59min/Continuous/Short-span
Power Supply: Standard: AC220V, 50/60HzOptional: AC110V, 50/60Hz
Noise: ≤65dB(A)
External Size(L*W*H): 500*620*410mm
Package Size(L*W*H): 620*740*710mm
Net Weight: 56kg
Gross Weight: 80kg(220V), 85kg(110V)
