Low Speed Centrifuge

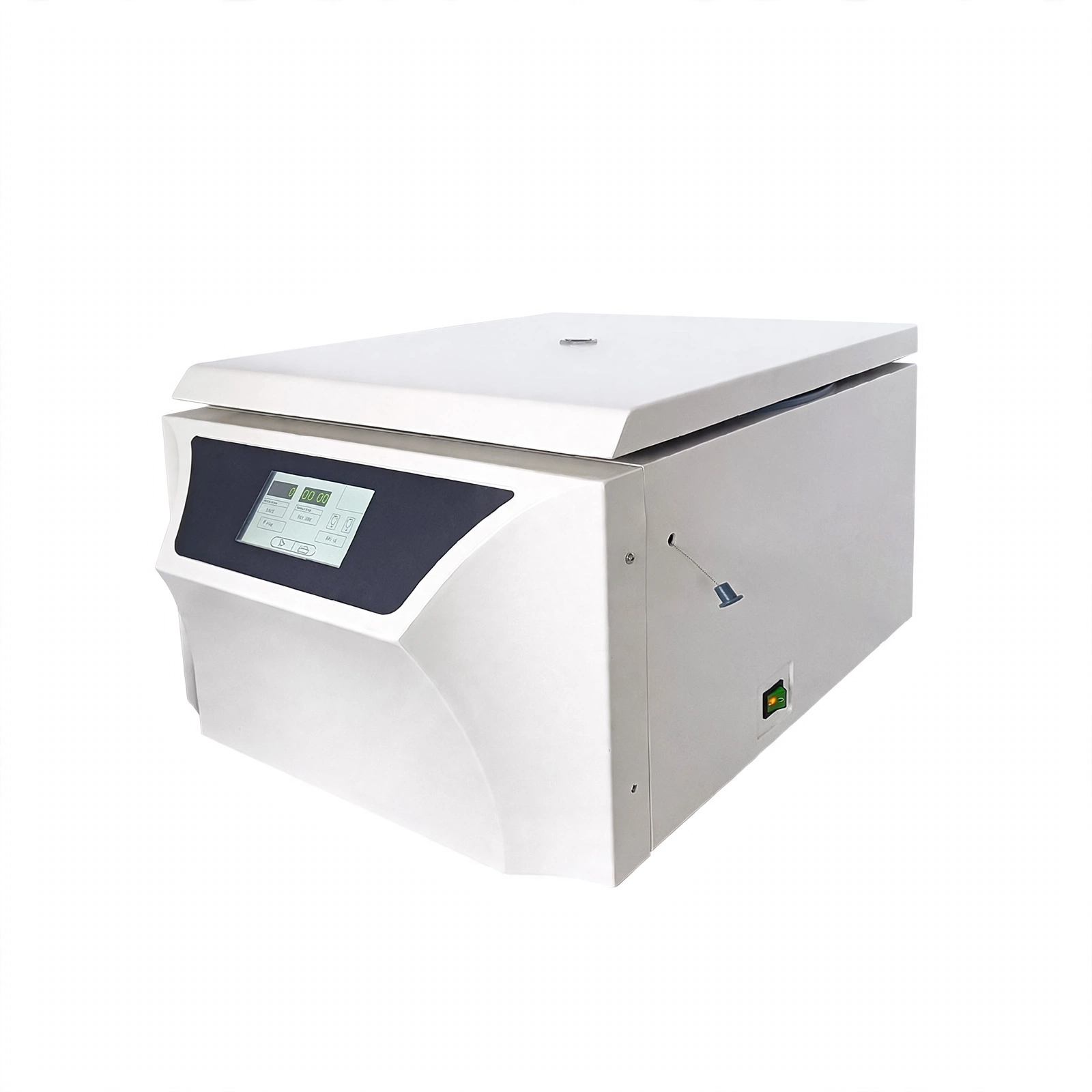

Table Top Low Speed Large Capacity Centrifuge BKC-TL5LII

Model BKC-TL5LII Table-top Low speed Large capacity

Low speed large capacity centrifuges utilize the principle of accelerated sedimentation in centrifuges to separate, concentrate or purify cells(particles) of different densities in a solution under the action of centrifugal force(field). It is suitable for qualitative analysis of serum, plasma and urea in blood stations, clinical trials and biochemical laboratories.

Max. speed
5,500 rpm
Max. RCF
4,390 ×g
Capacity
4*750mL
Noise
< 65dB
Net weight
55
Dimensions
458*620*380
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. 5-inch high-definition touch screen, easily operated, visual display.

2. Automatically identify 4 kinds of different rotors, eliminate hidden danger brought by users’ maloperation.

3. 9 ranges for raising speed, 10 ranges for speed reduction, to effectively avoid secondary sedimentation, with better centrifugation effect.

4. Available to store 20 series of procedure for users to adjust.

5. AC frequency conversion motor, high precision of rotary speed control.

6. Diverse protection setting: overspeed, door protection, imbalance protection, to ensure safety of both human and machine.

7. Free conversion between rotary speed and centrifugal force.

Technical parameter：

Model BKC-TL5LII
Max. Speed 5500rpm
Max. RCF 4390×g
Max. Capacity 4*750mL
Motor AC frequency conversion motor
Speed Accuracy ±20r/min
Time Range Centrifugal time:1min～99 min59sec

Continuous centrifuge: Hold
Power Supply AC220±22V 50/60Hz (Standard);

AC110V 60Hz (Optional)
Noise < 65dB(A)
External Size(W*D*H) mm 458*620*380
Packing Size(W*D*H) mm 800*520*570
Net Weight(kg) 55
Gross Weight(kg) 80

Rotor：

No. Rotor Max. Speed(rpm) RCF (xg) capacity Dimension of Tube (mm)
NO.1 Angle Rotor 5500 4390 12*10ml Φ16*83
NO.2 Angle Rotor 5500 4390 12*15ml Φ17*121

NO.3

 Swing Rotor / / Support /

Tube Rack

 5000 4390 4*100ml Φ38*116

4000

2810

 4*2*100ml Φ38*116
4*4*10ml Φ16*106
4*6*10ml Φ16*106
4*8*10ml Φ16*106
4*4*15ml(▲/●) Φ16*120
4*6*15ml(▲/●) Φ16*120
4*8*15ml(▲/●) Φ16*120
5000 4390 4*50ml(▲/●) Φ29*116
4000 2180 4*2*50ml(▲/●) Φ29*116

NO.4

 Swing Rotor 4200 3500 4*250ml Φ62*126

Adapter

4200

3500

 4*8*5ml /
4*8*7ml /
4*7*10ml /
4*6*15ml /
4*2*50ml(●) /
4*1*50ml(▲) /
4*100ml /

NO.5

 Swing Rotor 4000 3040 4*500ml Φ80*137

Adapter

4000

3040

 4*15*5ml /
4*15*7ml /
4*12*10ml /
4*8*15ml(▲) /
4*4*50ml(▲/●) /
4*2*100ml /
4*250ml /
NO.6 Swing Rotor 4000 3180 4*750ml Φ99*137
NO.7 Swing Rotor 4200 3500 4*12*7/5ml Φ13*100/90
NO.8 Swing Rotor 4000 3040 4*24*7/5ml Φ13*100/90
NO.9 Microplate Rotor 4000 2000 2*2*48well Microplate
NO.10 Microplate Rotor 4200 2360 2*2*96well Microplate

With mark(●) or no mark is round-bottom tube, with mark(▲) is sharp-bottom tube

The details

Specifications

Model
BKC-TL5LII
Max. Speed
5500rpm
Max. RCF
4390×g
Max. Capacity
4*750mL
Motor
AC frequency conversion motor
Speed Accuracy
±20r/min
Time Range
Centrifugal time:1min～99 min59secContinuous centrifuge: Hold
Power Supply
AC220±22V 50/60Hz (Standard);AC110V 60Hz (Optional)
Noise
< 65dB(A)
External Size(W*D*H) mm
458*620*380
Packing Size(W*D*H) mm
800*520*570
Net Weight(kg)
55
Gross Weight(kg)
80
