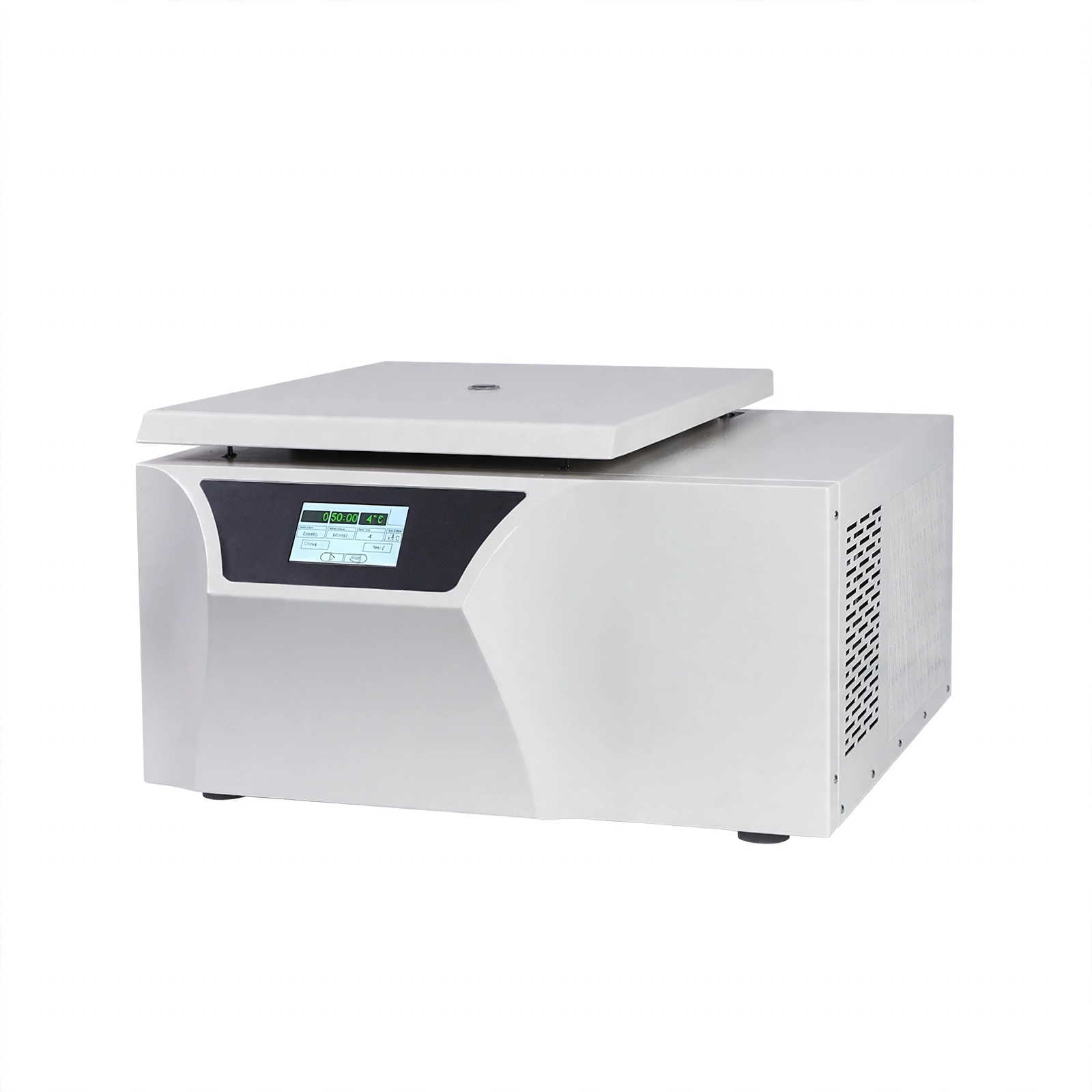

Table Top Low Speed Refrigerated Centrifuge BKC-TL6RD

A closer look

About this equipment

Features:

1. 5-inch high-definition touch screen, easily operated, visual display.

2. Automatically identify 4 kinds of different rotors, eliminate hidden danger brought by users’ maloperation.

3. 9 ranges for raising speed, 10 ranges for speed reduction, to effectively avoid secondary sedimentation, with better centrifugation effect.

4. Available to store 15 series of procedure for users to adjust.

5. AC frequency conversion motor, high precision of rotary speed control. Freon-free compressor import from Europe.

6. Diverse protection setting: overspeed, door protection, imbalance protection, to ensure safety of both human and machine.

7. Free conversion between rotary speed and centrifugal force.

Technical Parameters:

Model	BKC-TL6RD
Max. Speed	5500rpm
Max. RCF	4390×g
Max. Capacity	4*500ml
Motor	AC frequency conversion motor
Speed Accuracy	±30r/min
Time Range	Centrifugal time: 1min~99 min59sec Continuous centrifuge: Hold
Temperature Range	-20℃~+40℃
Temperature Accuracy	±1.0℃
Power Supply	AC220±22V, 50/60Hz(Standard); AC110V, 60Hz(Optional)
Noise	< 60dB(A)
External Size(LDH)mm	703710400
Package Size(LDH)mm	910825570
Net Weight(kg)	110
Gross Weight(kg)	130

Rotor:

No.	Rotor	Max. Speed(rpm)	RCF (xg)	Capacity	Dimension of Tube (mm)
NO.1	Angle Rotor	5500	4390	12*10ml	Φ16*83
NO.2	Swing Rotor	/	/	Support	/
	Tube Rack	4000	2810	4*100ml	Φ38*116
				42100ml	Φ38*116
				4410ml	Φ16*106
				4610ml	Φ16*106
				4810ml	Φ16*106
				4415ml(▲/●)	Φ16*120
				4615m(▲/●)	Φ16*120
				4815ml(▲/●)	Φ16*120
				4*50ml(▲/●)	Φ29*116
				4250ml(▲/●)	Φ29*116
NO.3	Swing Rotor	4200	3500	4*250ml	Φ62*126
	Adapter:	4200	3500	485ml	/
				487ml	/
				4710ml	/
				4615ml(▲/●)	/
				4250ml(●)	/
				4150ml(▲)	/
				4*100ml	/
NO.4	Swing rotor	4000	3040	4*500ml	Φ80*137
	Adapter	4000	3040	4155ml	/
				4157ml	/
				41210ml	/
				4815ml(▲)	/
				4450ml(▲/●)	/
				42100ml	/
				4*250ml	/
NO.5	Swing Rotor	4200	3500	4127/5ml	Φ13*110
NO.6	Swing Rotor	4200	3500	4187/5ml	Φ13*110
NO.7	Swing Rotor	4000	3040	4247/5ml	Φ13*110
NO.8	Microplate Rotor	4000	2300	2248well	Microplate
NO.9	Microplate Rotor	4200	2360	2296well	Microplate
NO.10	Microplate Rotor	4000	2670	4296well	Microplate

Note: With mark(●) or no mark is round-bottom tube, with mark(▲) is sharp-bottom tube.

The details

Specifications

Model: BKC-TL6RD
Max. Speed: 5500rpm
Max. RCF: 4390×g
Max. Capacity: 4*500ml
Motor: AC frequency conversion motor
Speed Accuracy: ±30r/min
Time Range: Centrifugal time: 1min~99 min59secContinuous centrifuge: Hold
Temperature Range: -20℃~+40℃
Temperature Accuracy: ±1.0℃
Power Supply: AC220±22V, 50/60Hz(Standard); AC110V, 60Hz(Optional)
Noise: < 60dB(A)
External Size(L*D*H)mm: 703*710*400
Package Size(L*D*H)mm: 910*825*570
Net Weight(kg): 110
Gross Weight(kg): 130
