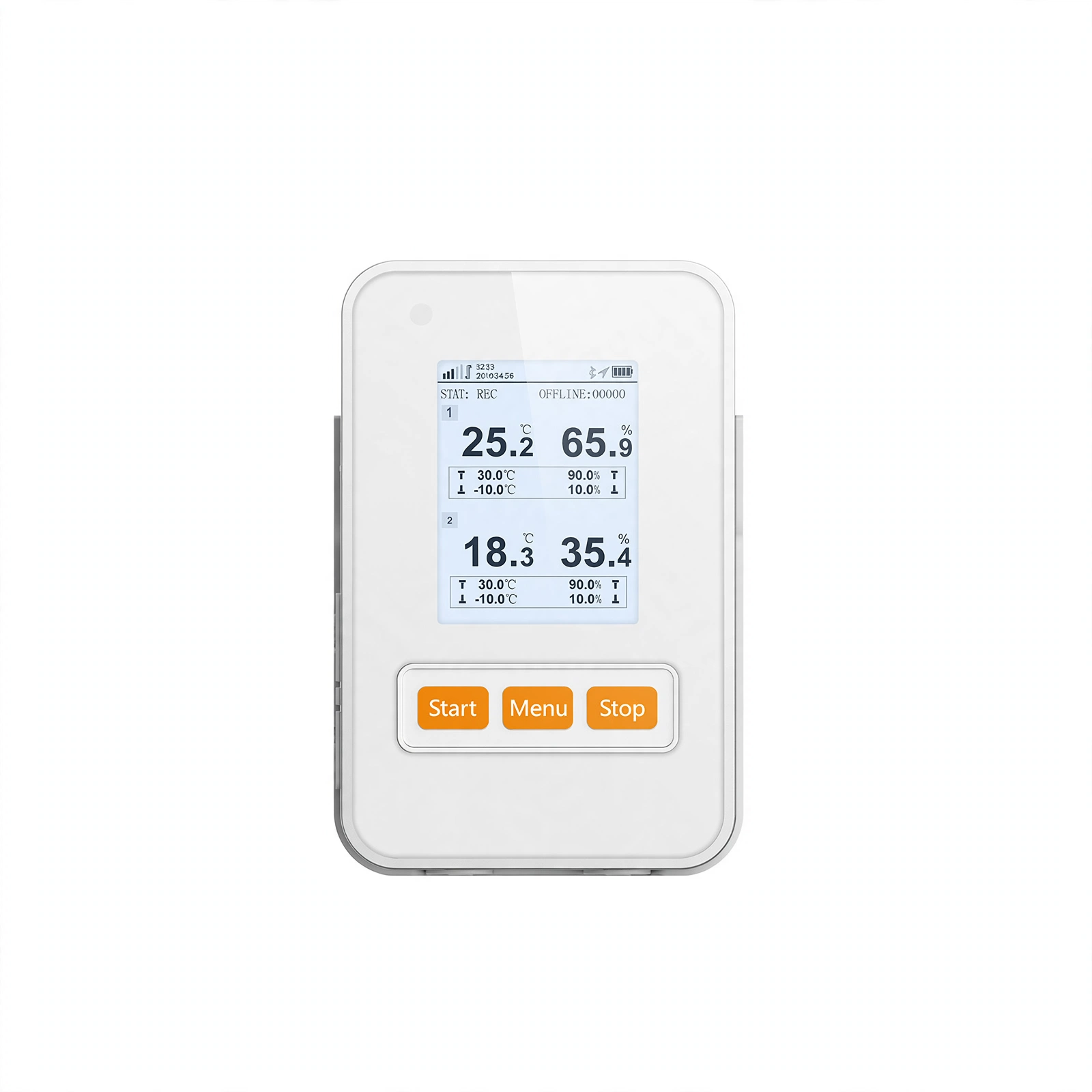

Temperature Recorder RCW-360P-T RCW-360PW-T RCW-360P-THE RCW-360PW-THE RCW-360P-TLE RCW-360PW-TLE

Model RCW-360P-T / RCW-360PW-T / RCW-360P-THE / RCW-360PW-THE +2 Refrigerated Blood & clinical

This series is mainly targeted at international warehousing and logistics, including 4G and WiFi versions. It is widely used in small cold storage, refrigerator, refrigerated trucks and other logistics transportation, blood band refrigerators, and other scenes.

Temperature
-40℃～80℃ / -40℃～80℃ /…
Battery
3.7V 5000mAh Recharge…
Net weight
201g / 201g / 314g /…
Dimensions
110*70*18mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Feature:

1.Beautiful appearance design, 2.4 inch TFT screen display

2.Built-in large capacity lithium battery, long running time

3.Built-in Bluetooth, Bluetooth print data anytime and anywhere

4.LBS(base station) +GPS accurate positioning, monitoring the movement track at any time

5.Equipped with magnet adsorption mounting bracket, easy installation and easy operation

6.GPRS4Gwifi three transmission modes can be selected, transmission distance is not limited

7.Real-time monitoring, support SMS, Wechat, email, APP push four alarm methods

8.Remote temperature and humidity data monitoring record, data cloud storage, safe and reliable

Parameter:

Model RCW-360P-T

RCW-360PW-T

RCW-360P-THE

RCW-360PW-THE

RCW-360P-TLE

RCW-360PW-TLE
Communication 4G

WIFI

4G

WIFI

4G

WIFI
Sensor Channel

External, temperature sensor *1

External, temperature sensor *1, humidity sensor*1

External, ultra low temperature sensor*1
Usage Type

Reuse
Sensors Type

STS31

SHT31

PT100
Sensor Parameter

5m Cable + Sensor: ∮5.4mm*30mm

5m Cable + Sensor: ∮5.4mm*30mm (

aviation connector)
Temperature Range

-40℃～80℃

-40℃～80℃

-200℃～150℃
Humidity Range

0%RH～100%RH

/

/
Temperature Accuracy

±0.5℃

±0.5℃ (-50℃～85℃)
±1℃ (Other range)
Humidity Accuracy 　/

　/

±5%RH

/

/
Resolution

Temperature: 0.1℃; Humidity: 0.1%RH
Memory Capacity

100000
Logging Interval

1min～24 hour
Logging Mode

Real-time recording
Alarm Ranges

High and low temperature (Humidity)
Alarm Type

Buzzer
Alarm Mode

SMS, Wechat, APP, email
Battery

3.7V 5000mAh Rechargeable lithium battery
Power Supply

Power Adapter: 5V/1A, DC
Display

TFT Screen
Display Information

Temperature And Humidity, Signal, Network, Number of Offline Records, Upper and Lower Limits, Maximum/Minimum/Average Value
Button

Switch, Start, Stop, Menu
Automatic Data File

Export Excel or PDF report
Compatible OS

Windows/IOS/Android
Storage Temperature

+15℃~30℃
Protection Class

IP64
External Size(W*D*H)

110*70*18mm
Packed Size(W*D*H)

174*127*69mm
Net weight

201g

201g

314g

357g

314g

 314g
Gross weight

431g

431g

544g

587g

544g

 544g
The details

Specifications

Model
RCW-360P-T / RCW-360PW-T / RCW-360P-THE / RCW-360PW-THE / RCW-360P-TLE / RCW-360PW-TLE
Communication
4G / WIFI / 4G / WIFI / 4G / WIFI
Sensor Channel
External, temperature sensor *1 / External, temperature sensor *1, humidity sensor*1 / External, ultra low temperature sensor*1 / External, ultra low temperature sensor*1 / External, ultra low temperature sensor*1 / External, ultra low temperature sensor*1
Usage Type
Reuse
Sensors Type
STS31 / SHT31 / PT100 / PT100 / PT100 / PT100
Sensor Parameter
5m Cable + Sensor: ∮5.4mm*30mm / 5m Cable + Sensor: ∮5.4mm*30mm (aviation connector) / 5m Cable + Sensor: ∮5.4mm*30mm (aviation connector) / 5m Cable + Sensor: ∮5.4mm*30mm (aviation connector) / 5m Cable + Sensor: ∮5.4mm*30mm (aviation connector) / 5m Cable + Sensor: ∮5.4mm*30mm (aviation connector)
Temperature Range
-40℃～80℃ / -40℃～80℃ / -200℃～150℃ / -200℃～150℃ / -200℃～150℃ / -200℃～150℃
Humidity Range
/ 0%RH～100%RH / / / / / / / /
Temperature Accuracy
±0.5℃ / ±0.5℃ (-50℃～85℃)±1℃ (Other range) / ±0.5℃ (-50℃～85℃)±1℃ (Other range) / ±0.5℃ (-50℃～85℃)±1℃ (Other range) / ±0.5℃ (-50℃～85℃)±1℃ (Other range) / ±0.5℃ (-50℃～85℃)±1℃ (Other range)
Humidity Accuracy
/ / / / ±5%RH / / / / / /
Resolution
Temperature: 0.1℃; Humidity: 0.1%RH
Memory Capacity
100000
Logging Interval
1min～24 hour
Logging Mode
Real-time recording
Alarm Ranges
High and low temperature (Humidity)
Alarm Type
Buzzer
Alarm Mode
SMS, Wechat, APP, email
Battery
3.7V 5000mAh Rechargeable lithium battery
Power Supply
Power Adapter: 5V/1A, DC
Display
TFT Screen
Display Information
Temperature And Humidity, Signal, Network, Number of Offline Records, Upper and Lower Limits, Maximum/Minimum/Average Value
Button
Switch, Start, Stop, Menu
Automatic Data File
Export Excel or PDF report
Compatible OS
Windows/IOS/Android
Storage Temperature
+15℃~30℃
Protection Class
IP64
External Size(W*D*H)
110*70*18mm
Packed Size(W*D*H)
174*127*69mm
Net weight
201g / 201g / 314g / 357g / 314g / 314g
Gross weight
431g / 431g / 544g / 587g / 544g / 544g
