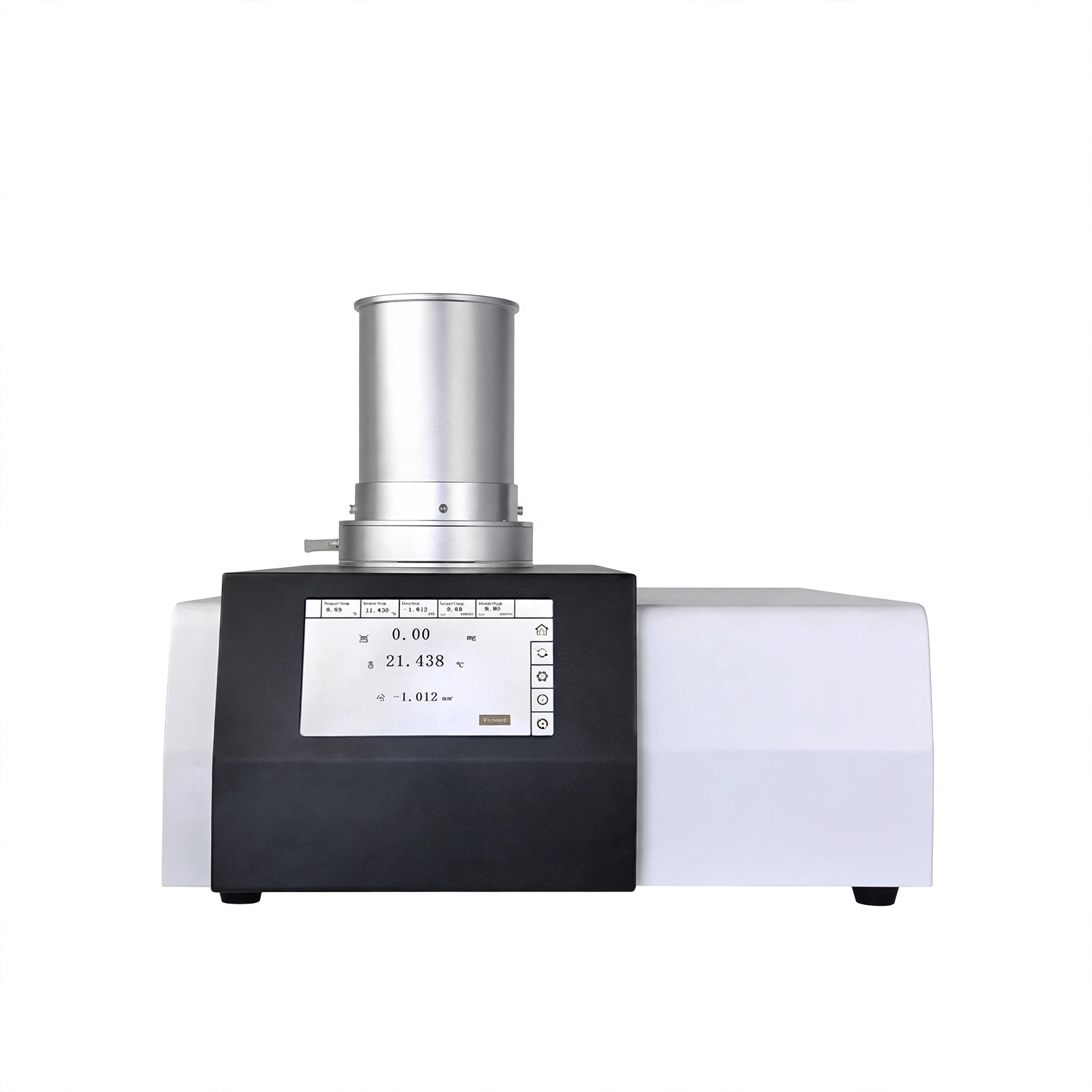

Thermal Gravimetric Analyzer BK-TGA101

Model BK-TGA101 Refrigerated

Application: Thermogravimetric analysis(TG, TGA) monitors changes in sample mass over time and temperature during heating, temperature control, or cooling processes. Its purpose is to investigate the thermal stability and composition of materials. It is widely used in research and development, process optimization, and quality control in various fields, including plastics, rubber, coatings, catalysts, inorganic materials, metal materials, and composite materials.

Temperature
RT~1250℃
Net weight
29.5kg
Dimensions
460*530*410mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. The furnace heating system utilizes double-row precious metal alloy wire.

2. The tray sensor is heat-resistant and corrosion-resistant.

3. The power supply and heat dissipation components are separated from the main unit.

4. The top-opening lid design provides easy operation.

5. The furnace body features a double thermal insulation design for improved linearity.

Technical Parameters:

Model BK-TGA101
Temperature Range RT~1250℃
Temperature Resolution 0.01℃
Temperature Accuracy 0.1℃
Heating Rate 0.1~100℃/min
Temperature Control Method PID algorithm control, heating, maintaining temperature, cooling
Constant Temperature Time 0~300min, arbitrarily set
Weighing System Measurement Range 0.01mg~3g, can be expanded to 50g
Weighing System Accuracy 0.01mg
Power Supply Standard: AC220V 50/60Hz, optional: AC110V 50/60Hz
External Size(W*D*H) 460*530*410mm
Net Weight 29.5kg
Packing Size(W*D*H) 670*590*505mm
Gross Weight 44kg
The details

Specifications

Model
BK-TGA101
Temperature Range
RT~1250℃
Temperature Resolution
0.01℃
Temperature Accuracy
0.1℃
Heating Rate
0.1~100℃/min
Temperature Control Method
PID algorithm control, heating, maintaining temperature, cooling
Constant Temperature Time
0~300min, arbitrarily set
Weighing System Measurement Range
0.01mg~3g, can be expanded to 50g
Weighing System Accuracy
0.01mg
Power Supply
Standard: AC220V 50/60Hz, optional: AC110V 50/60Hz
External Size(W*D*H)
460*530*410mm
Net Weight
29.5kg
Packing Size(W*D*H)
670*590*505mm
Gross Weight
44kg
