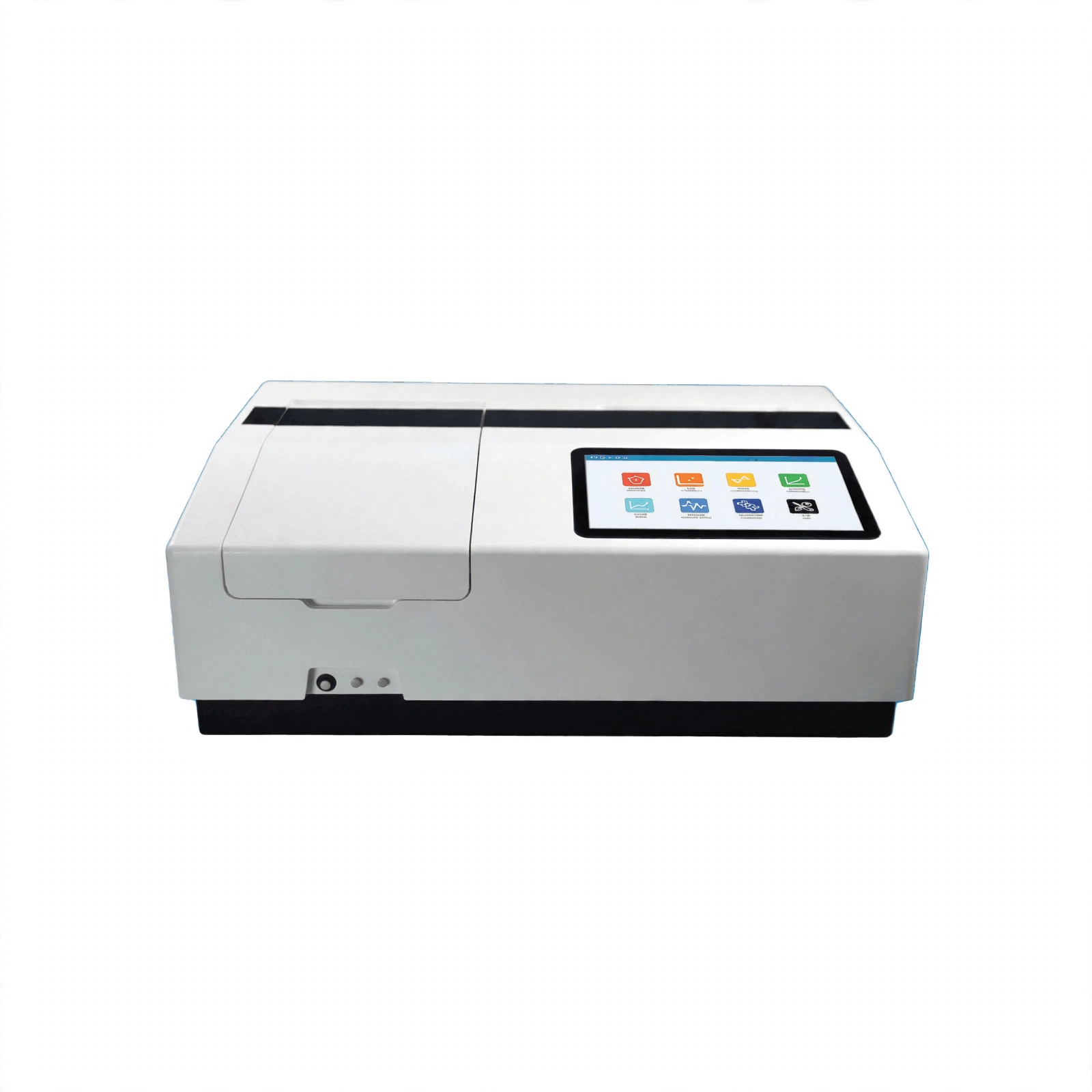

TOUCH Vis & UV/VIS SPECTROPHOTOMETER

Model BK-DT9 BK-DT9P BK-DT9S

TOUCH Vis & UV/VIS SPECTROPHOTOMETER(Customized)

Noise
±0.0002Abs
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters:

Model BK-DT9 BK-DT9P BK-DT9S
Optical System 1200 line/mm Grating, Double Beam 1200 line/mm Grating, Double Beam 1200 line/mm Grating, Double Beam
Wavelength Range 190~1100nm 190~1100nm 190~1100nm
Spectral Bandwidth 1.8nm 1.0nm 0.5 ,1.0 ,2.0 ,4.0, 5.0nm
Wavelength Accuracy ± 0.3nm(± 0.1nm @596.1) ± 0.3nm(± 0.1nm @596.1) ± 0.3nm(± 0.1nm @596.1)
Wavelength Repeatability ≤ 0.1nm ≤ 0.1nm ≤ 0.1nm
Photometric Accuracy ±0.002A(0-0.5Abs),

±0.004A(0.5-1.0Abs), ±0.2%T(0-100%T)

 ±0.002A(0-0.5Abs),

±0.004A(0.5-1.0Abs),

±0.2%T(0-100%T)

 ±0.002A(0-0.5Abs),

±0.004A(0.5-1.0Abs),

±0.2%T(0-100%T)
Photometric Repeatability ±0.001A(0-0.5Abs),

±0.002A(0.5-1.0Abs), ±0.1%T(0-100% T)

 ±0.001A(0-0.5Abs),

±0.002A(0.5-1.0Abs),

±0.1%T(0-100%T)

 ±0.001A(0-0.5Abs),

±0.002A(0.5-1.0Abs),

±0.1%T(0-100%T)
Stray Light ≤0.02T@360nm, 220nm ≤0.02T@360nm, 220nm ≤0.02T@360nm, 220nm
Stability ±0.0002A/h@500nm ±0.0002A/h@500nm ±0.0002A/h@500nm
Baseline Flatness ±0.0004A ±0.0004A ±0.0004A
Noise ±0.0002Abs ±0.0002Abs ±0.0002Abs
Display 1024*600 10 inch touch screen 1024*600 10 inch touch screen 1024*600 10 inch touch screen
Photometric Mode T, A, C, E T, A, C, E T, A, C, E
Photometric Range 0-200% T, -4.0-4.0A, 0-9999.9C 0-200% T, -4.0-4.0A, 0-9999.9C 0-200% T, -4.0-4.0A, 0-9999.9C
Detector Silicon Photodiode Silicon Photodiode Silicon Photodiode
Light Source Deuterium Lamp, Tungsten Lamp Deuterium Lamp, Tungsten Lamp Deuterium Lamp, Tungsten Lamp
Input Touch Screen Touch Screen Touch Screen
Interface USB-A2, USB-B1, Blue Tooth USB-A2, USB-B1, Blue Tooth USB-A2, USB-B1, Blue Tooth
The details

Specifications

Model
BK-DT9 / BK-DT9P / BK-DT9S
Optical System
1200 line/mm Grating, Double Beam
Wavelength Range
190~1100nm
Spectral Bandwidth
1.8nm / 1.0nm / 0.5 ,1.0 ,2.0 ,4.0, 5.0nm
Wavelength Accuracy
± 0.3nm(± 0.1nm @596.1)
Wavelength Repeatability
≤ 0.1nm
Photometric Accuracy
±0.002A(0-0.5Abs), ±0.004A(0.5-1.0Abs), ±0.2%T(0-100%T)
Photometric Repeatability
±0.001A(0-0.5Abs), ±0.002A(0.5-1.0Abs), ±0.1%T(0-100% T) / ±0.001A(0-0.5Abs), ±0.002A(0.5-1.0Abs), ±0.1%T(0-100%T) / ±0.001A(0-0.5Abs), ±0.002A(0.5-1.0Abs), ±0.1%T(0-100%T)
Stray Light
≤0.02T@360nm, 220nm
Stability
±0.0002A/h@500nm
Baseline Flatness
±0.0004A
Noise
±0.0002Abs
Display
1024*600 10 inch touch screen
Photometric Mode
T, A, C, E
Photometric Range
0-200% T, -4.0-4.0A, 0-9999.9C
Detector
Silicon Photodiode
Light Source
Deuterium Lamp, Tungsten Lamp
Input
Touch Screen
Interface
USB-A2, USB-B1, Blue Tooth
