- Measurement Condition
- d/0(Scattered light source, 0-degree observation Angle）(CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、JIS Z8722 Condition c)
- Integrating Sphere
- Φ40mm, Avian-D Full diffuse reflection surface coating
- Lighting Source
- CLEDs(Full-band balanced Led light source）
- Inductor
- Dual-optical path sensing array sensor
- Wavelength Range
- 400~700nm
- Wavelength Coverage
- 10nm
- Half-band Width
- 5nm
- Measuring Range
- 0~200%
- Resolution Ratio
- 0.0001
- Observer's Perspective
- 2°/10°
- Observe the Light Source
- A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CMF, U30, DLF, NBF, TL83, TL84
- Display
- Transmission graph/data, sample chromaticity value, color difference value/graph, pass/fail result, color bias, color simulation, historical data color simulation, manual input of standard sample, test report
- Measurement Interval
- 1s
- Measure time
- 1s
- Measure Aperture
- Φ10mm
- Color Space
- CIE Lab, LCh, CIE Luv, XYZ, Yxy, transmissivity, Hunter Lab Munsel, MI, CMYK
- Color Difference Formula
- ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*94, ΔE*00
- Other Indicators
- WI(ASTM E313-00, ASTM E313-73, CIE/ISO, Hunter, Taube Berger Stensby),YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313-00), Isomerism index Milm, color fastness, Color fastness, APHA, Pt-Co(platinum-to-cobalt index), Gardner(Gardner Index), Saybolt(Sebert Index), Astm Color, Saybolt, ASTM Color
- Repeatability
- Spectral transmittance: Standard deviation within 0.08%, chromaticity value: ΔE*ab 0.015(After correction, measure the standard deviation of air 30 times at intervals of 5 seconds), maximum value
- Inter-instrument Agreement
- ΔE*ab0.2
- Data Interface
- USB
- Data Storage
- Massive Storage(PC)
- Size
- 475*340*150mm(L*W*H)
- Weight
- 7kg
- Operating Temperatur
- The temperature range is 0 to 45℃, with a relative humidity of 80% or lower(at 35°C), and no water vapor condensation
- Storage Temperature
- From -25°C to 55°C, with a relative humidity of 80% or lower(at 35°C), and no condensation of water vapor
- Standard Equipment

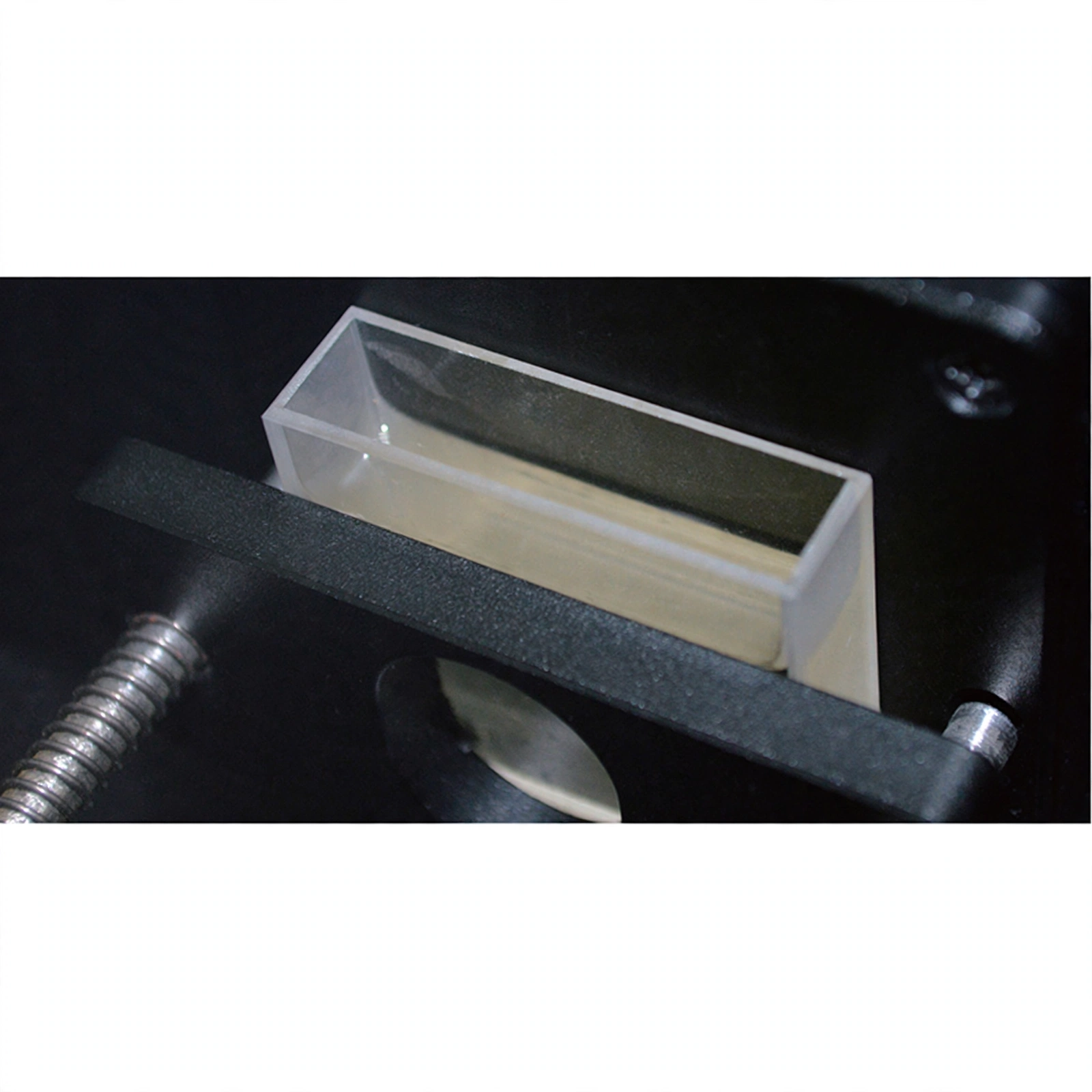

- Power cord, color management software, driver software, data cable, black correction board, 40*10mm cuvette
- Optional Accessories
- 40*33mm cuvette(for measuring ASTM color), 40*100mm cuvette(for measuring Saybolt)
