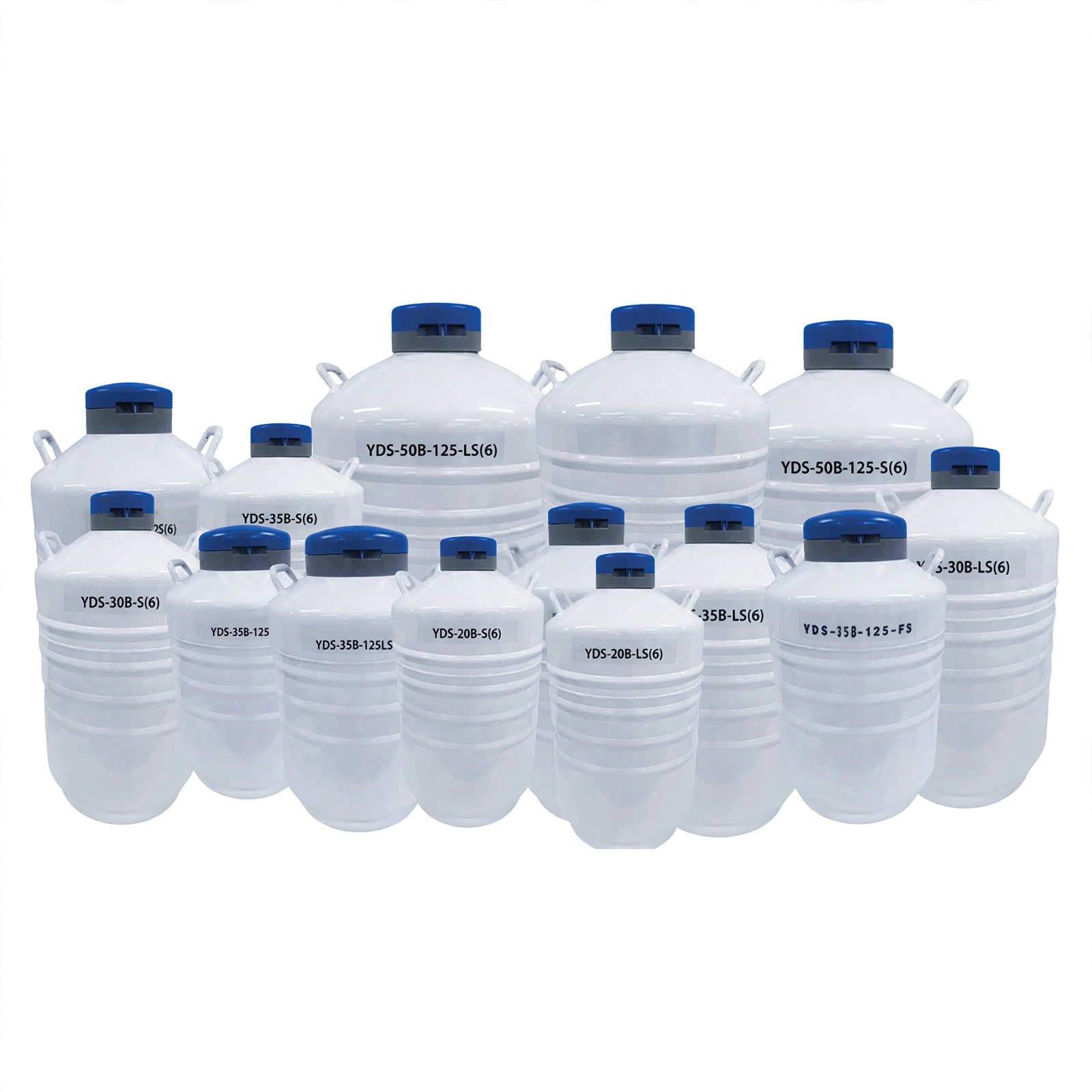

Liquid Nitrogen Container

Transportation Liquid Nitrogen Container

Model YDS-20B-LS(6) / YDS-20B-S(6) / YDS-20B / YDS-30B-LS(6) +16

Features ①High vacuum, multi-layer insulation design ②Low static evaporation rate ③Made of high-quality alloy aluminum ④Insulation material bracket, lower evaporation, safe and reliable transportation

Capacity
L / 20.1 / 20.1 / 20.…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters

Model Unit YDS-20B-LS(6) YDS-20B-S(6) YDS-20B YDS-30B-LS(6) YDS-30B-S(6) YDS-30B YDS-35B-80LS(6) YDS-35B-80S(6) YDS-35B-80 YDS-35B-125-FS YDS-35B-125LS(6) YDS-35B-125S(6) YDS-35B-125 YDS-35B-LS(6) YDS-35B-S(6) YDS-35B YDS-50B-125-FS YDS-50B-125LS(6) YDS-50B-125S(6) YDS-50B-125
Capacity L 20.1 20.1 20.1 31.5 31.5 31.5 35.5 35.5 35.5 35.5 35.5 35.5 35.5 35.5 35.5 35.5 50 50 50 50
Empty Weight kg 13.78 13.22 12.42 17.9 17.3 15.6 20.3 19.1 17.9 25.4 22.52 20.61 18.3 18.45 17.85 17.1 28.5 23.7 22 21
Caliber mm 50±1 50±1 50±1 50±1 50±1 50±1 80±1 80±1 80±1 125±1 125±1 125±1 125±1 50±1 50±1 50±1 125±1 125±1 125±1 125±1
Outer Diameter mm 409±2 409±2 409±2 455±2 455±2 455±2 455±2 455±2 455±2 455±2 455±2 455±2 455±2 455±2 455±2 455±2 508±2 508±2 508±2 508±2
Height mm 680±4 680±4 675±4 670±4 670±4 665±4 735±4 735±4 725±4 735±4 735±4 735±4 720±4 735±4 735±4 725±4 818±4 818±4 818±4 818±4
Static Evaporation Loss L/d ≤0.20 ≤0.20 ≤0.20 ≤0.20 ≤0.20 ≤0.20 ≤0.30 ≤0.30 ≤0.30 ≤0.41 ≤0.41 ≤0.41 ≤0.41 ≤0.20 ≤0.20 ≤0.20 ≤0.45 ≤0.45 ≤0.45 ≤0.45
Static Holding Time d ≥101 ≥101 ≥101 ≥159 ≥159 ≥159 ≥119 ≥119 ≥119 ≥86 ≥86 ≥86 ≥86 ≥179 ≥179 ≥179 ≥110 ≥110 ≥110 ≥110
Canister Specification mm Round: Diameterφ38±1; Height276±1 Round: Diameterφ38±1; Height 120±1 NO Round: Diameterφ38±1; Height  276±1 Round: Diameterφ38±1; Height 120±1 NO Round: Diameterφ60±1; Height  276±1 Round: Diameterφ60±1; Height 120±1 NO Square: 82*84mm.With 5*5 2ml cryobox, 750pcs cryogetic vials Round: Diameterφ97±1; Height 276±1 Round: Diameterφ97±1; Height 120±1 NO Round: Diameterφ38±1; Height 276±1 Round: Diameterφ38±1; Height 120±1 NO Square: 82*84mm.With 5*5 2ml cryobox, 900pcs cryogetic vials Round: Diameterφ97±1; Height  276±1 Round: Diameterφ97±1; Height  120±1 NO
Canister No.(Standard) pc 6 6 NO 6 6 NO 6 6 NO 6 6 6 NO 6 6 NO 6 6 6 NO
Canvas Protective Sleeve pc 1 1 NO 1 1 NO 1 1 NO 1 1 1 NO 1 1 NO NO NO NO NO
Lockable Lid set Yes Yes NO Yes Yes NO Yes Yes NO Yes Yes Yes NO Yes Yes NO Yes Yes Yes NO
Packing Size mm

457*457*720

502*502*795

550*550*830
Gross Weight kg 15.7 15 14.1 21 19.3 17.6 22.3 21.1 19.9 22.5 25.1 22.7 20.3 20.6 19.9 19.1 32.3 27.5 27.3 24.8
The details

Specifications

Model
Unit / YDS-20B-LS(6) / YDS-20B-S(6) / YDS-20B / YDS-30B-LS(6) / YDS-30B-S(6) / YDS-30B / YDS-35B-80LS(6) / YDS-35B-80S(6) / YDS-35B-80 / YDS-35B-125-FS / YDS-35B-125LS(6) / YDS-35B-125S(6) / YDS-35B-125 / YDS-35B-LS(6) / YDS-35B-S(6) / YDS-35B / YDS-50B-125-FS / YDS-50B-125LS(6) / YDS-50B-125S(6) / YDS-50B-125
Capacity
L / 20.1 / 20.1 / 20.1 / 31.5 / 31.5 / 31.5 / 35.5 / 35.5 / 35.5 / 35.5 / 35.5 / 35.5 / 35.5 / 35.5 / 35.5 / 35.5 / 50 / 50 / 50 / 50
Empty Weight
kg / 13.78 / 13.22 / 12.42 / 17.9 / 17.3 / 15.6 / 20.3 / 19.1 / 17.9 / 25.4 / 22.52 / 20.61 / 18.3 / 18.45 / 17.85 / 17.1 / 28.5 / 23.7 / 22 / 21
Caliber
mm / 50±1 / 50±1 / 50±1 / 50±1 / 50±1 / 50±1 / 80±1 / 80±1 / 80±1 / 125±1 / 125±1 / 125±1 / 125±1 / 50±1 / 50±1 / 50±1 / 125±1 / 125±1 / 125±1 / 125±1
Outer Diameter
mm / 409±2 / 409±2 / 409±2 / 455±2 / 455±2 / 455±2 / 455±2 / 455±2 / 455±2 / 455±2 / 455±2 / 455±2 / 455±2 / 455±2 / 455±2 / 455±2 / 508±2 / 508±2 / 508±2 / 508±2
Height
mm / 680±4 / 680±4 / 675±4 / 670±4 / 670±4 / 665±4 / 735±4 / 735±4 / 725±4 / 735±4 / 735±4 / 735±4 / 720±4 / 735±4 / 735±4 / 725±4 / 818±4 / 818±4 / 818±4 / 818±4
Static Evaporation Loss
L/d / ≤0.20 / ≤0.20 / ≤0.20 / ≤0.20 / ≤0.20 / ≤0.20 / ≤0.30 / ≤0.30 / ≤0.30 / ≤0.41 / ≤0.41 / ≤0.41 / ≤0.41 / ≤0.20 / ≤0.20 / ≤0.20 / ≤0.45 / ≤0.45 / ≤0.45 / ≤0.45
Static Holding Time
d / ≥101 / ≥101 / ≥101 / ≥159 / ≥159 / ≥159 / ≥119 / ≥119 / ≥119 / ≥86 / ≥86 / ≥86 / ≥86 / ≥179 / ≥179 / ≥179 / ≥110 / ≥110 / ≥110 / ≥110
Canister Specification
mm / Round: Diameterφ38±1; Height276±1 / Round: Diameterφ38±1; Height 120±1 / NO / Round: Diameterφ38±1; Height 276±1 / Round: Diameterφ38±1; Height 120±1 / NO / Round: Diameterφ60±1; Height 276±1 / Round: Diameterφ60±1; Height 120±1 / NO / Square: 82*84mm.With 5*5 2ml cryobox, 750pcs cryogetic vials / Round: Diameterφ97±1; Height 276±1 / Round: Diameterφ97±1; Height 120±1 / NO / Round: Diameterφ38±1; Height 276±1 / Round: Diameterφ38±1; Height 120±1 / NO / Square: 82*84mm.With 5*5 2ml cryobox, 900pcs cryogetic vials / Round: Diameterφ97±1; Height 276±1 / Round: Diameterφ97±1; Height 120±1 / NO
Canister No.(Standard)
pc / 6 / 6 / NO / 6 / 6 / NO / 6 / 6 / NO / 6 / 6 / 6 / NO / 6 / 6 / NO / 6 / 6 / 6 / NO
Canvas Protective Sleeve
pc / 1 / 1 / NO / 1 / 1 / NO / 1 / 1 / NO / 1 / 1 / 1 / NO / 1 / 1 / NO / NO / NO / NO / NO
Lockable Lid
set / Yes / Yes / NO / Yes / Yes / NO / Yes / Yes / NO / Yes / Yes / Yes / NO / Yes / Yes / NO / Yes / Yes / Yes / NO
Packing Size
mm / 457*457*720 / 502*502*795 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830 / 550*550*830
Gross Weight
kg / 15.7 / 15 / 14.1 / 21 / 19.3 / 17.6 / 22.3 / 21.1 / 19.9 / 22.5 / 25.1 / 22.7 / 20.3 / 20.6 / 19.9 / 19.1 / 32.3 / 27.5 / 27.3 / 24.8
