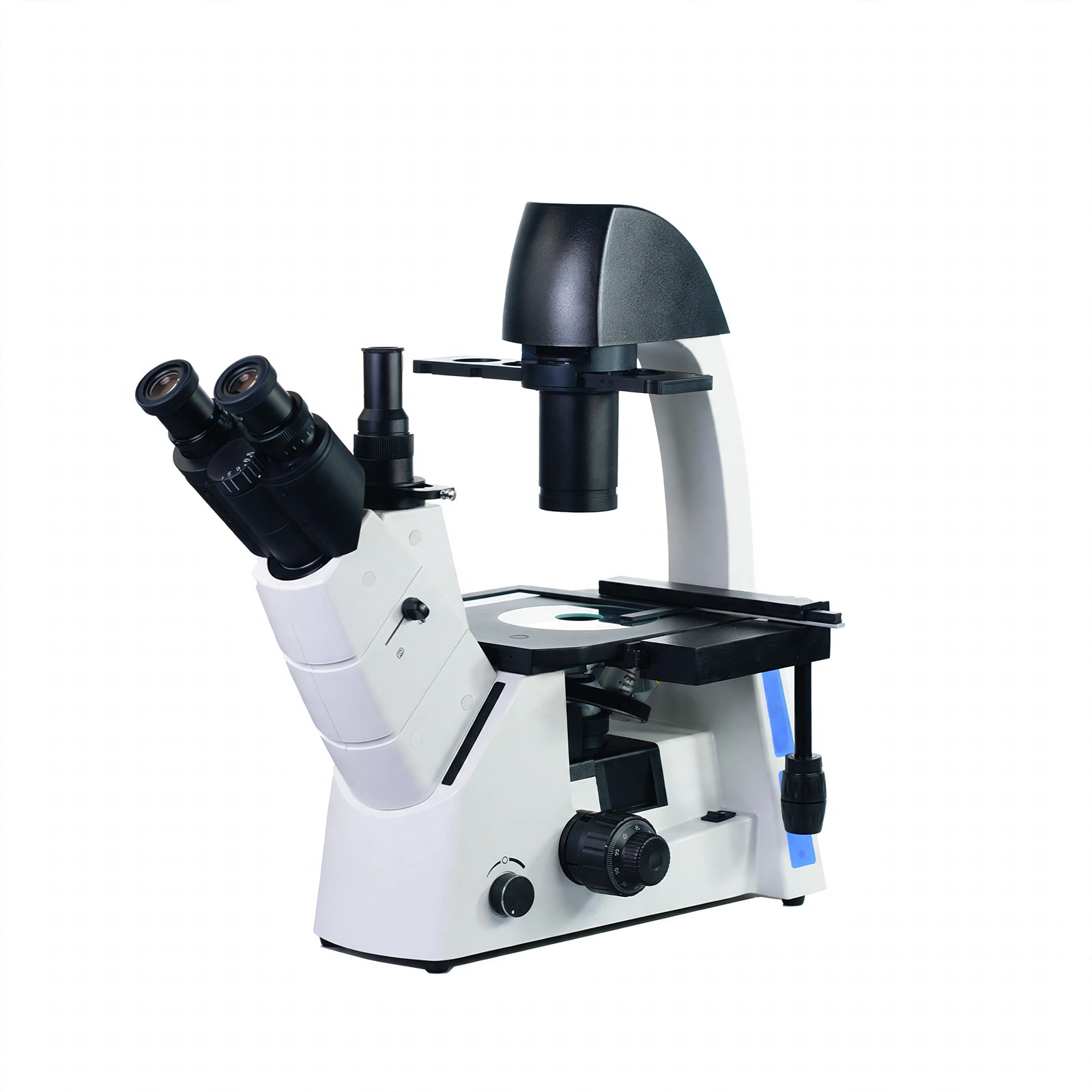

Trinocular head Inverted microscope equipped with full series of objectives that covers most applications. The head implements an extremely innovative design, that permits adjustments to compensate for operator height. Every control is easy to reach and each component has been designed with ease of use in mind. The focusing and specimen translation controls are designed to allow the user to rest wrists on the table. The light intensity regulation is placed very close to the focusing knobs.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
|
Model |
BMI-37XC | BMI-37XE | |
|
Optical System |
Infinite optical system |
||
|
View Head |
Compensation free trinocular head, Inclined at 45°, 360° rotatable, Interpupillary 50~75mm |
||
|
Eyepiece |
WF10X/22mm, WF16X/20mm | WF10X/20mm | |
|
Objective |
Infinite LWD Plan Achromatic Objective | 4X NA=0.13 WD=12.00mm
40X NA=0.60 WD=2.50mm |
10X NA=0.25 WD=4.27mm
20X NA=0.40 WD=8.00mm 40X NA=0.60 WD=3.50mm |
| Infinite LWD Plan Phase Contrast Objective | 10X NA=0.25 WD=8.10mm
20X NA=0.40 WD=4.80mm |
10X NA=0.25 WD=4.27mm
20X NA=0.40 WD=8.00mm(Optional) 40X NA=0.60 WD=3.50mm(Optional) |
|
|
Focusing |
Coaxial coarse & fine adjustable system, pinion and rack adjustable, fine division 0.002mm |
||
|
Stage |
242*172mm, glass slide ø110mm, moving range 120*75mm | 224* 208mm; movement range: 112*79mm; | |
|
Condenser |
ELWD Condenser with Iris Diaphragm & Filter, LWD 75mm | Long working distance condenser lens, working distance 70mm, with insert-type phase contrast device. | |
|
Illumination |
Halogen lamp 12V/30W, brightness adjustable | LED lamp, 9W, brightness adjustable | |
|
Power Supply |
AC85~240V, 50/60Hz |
||
|
Package Size(W*D*H) |
655*305*630mm | 650*430*600mm | |
|
Gross Weight |
14kg | 16kg | |
Ask our team for the full specification sheet for this model.
Request a quote on WhatsApp, or add several items to your enquiry list and send them together.
We confirm configuration, voltage, accessories, availability and a delivered price.
We handle procurement, packing and international shipping to your facility.
