UIS biomicroscope is widely used in research institutes of biology, cytology, histology, etc, It can be used by research institutes, colleges and universities in the laboratory.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:

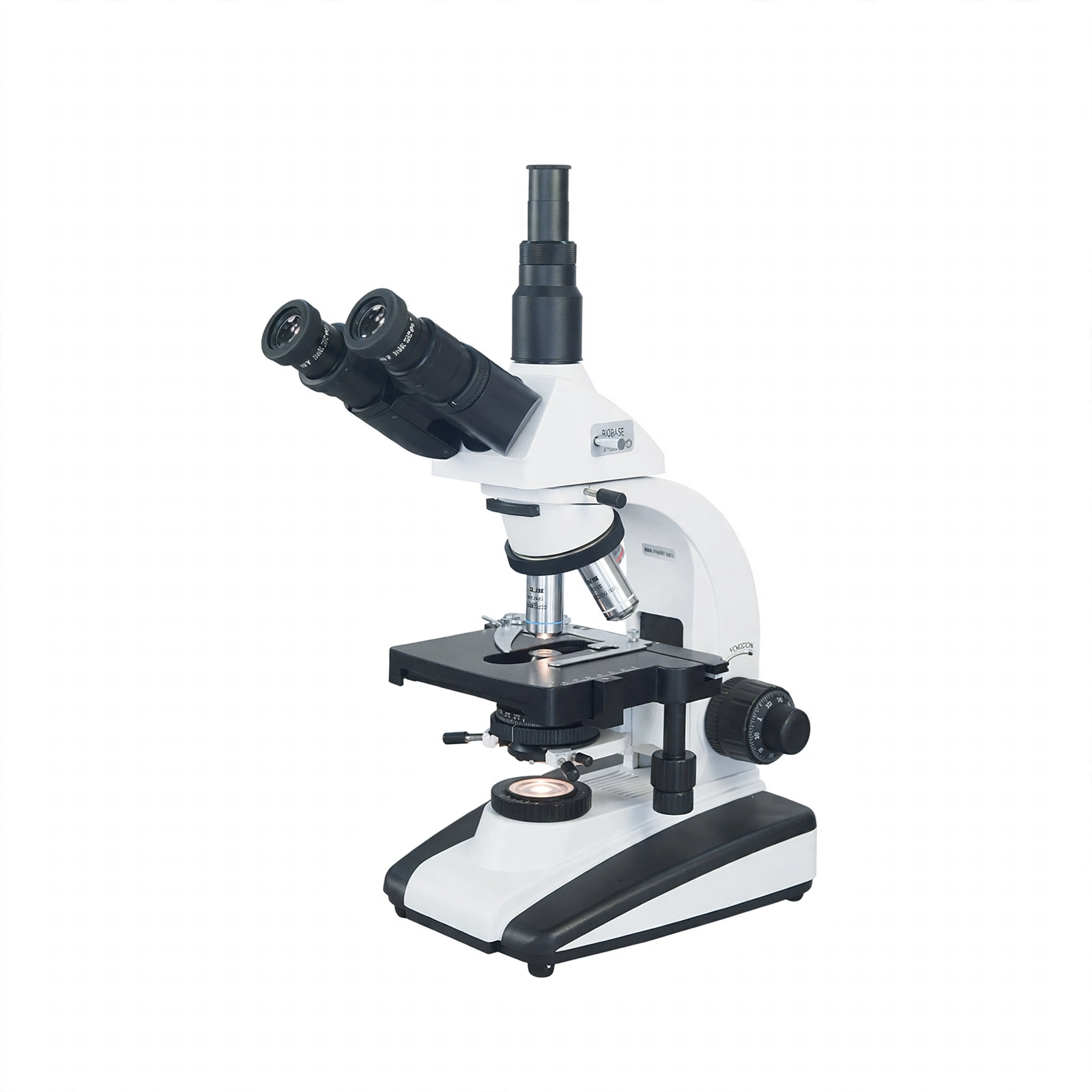

| Model | BM-20A | BM-20AD |
| Optical System |
Infinite optical system |
|
| View Head |
Compensation free trinocular head, Inclined at 30°, 360° rotatable, interpupillary 48~75mm |
|
| Eyepiece |
WF10X/22mm, WF16X/15mm |
|
|
Infinite Plan Achromatic Objective |
4X N.A=0.10 WD=20.00mm |
|
|
10X N.A=0.25 WD=13.50mm |
||
|
40X N.A=0.65 WD=0.68mm |
||
|
100X(Oil) N.A=1.25 WD=0.20mm |
||
|
20X N.A=0.40 WD=2.00mm |
||
| Focusing |
Coaxial Coarse＆Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
|
| Stage |
Double Layers Mechanical Stage 155*145mm, Moving Range 75*50mm |
|
| Condenser |
Abbe NA1.25 centerable condenser with lris Diaphragm&Filter |
|
| Illumination |
LED, brightness adjustable |
|
| Filter |
Blue, yellow, green |
|
| Imaging System | / | 500W CMOS Camera, MCL-Z adapter |
| Power Supply |
AC85~240V, 50/60Hz |
|
| Package Size(W*D*H) | 430*330*430mm | 440*340*455mm |
| Net Weight | 9kg | 11kg |
| Gross Weight | 10kg | 12kg |
