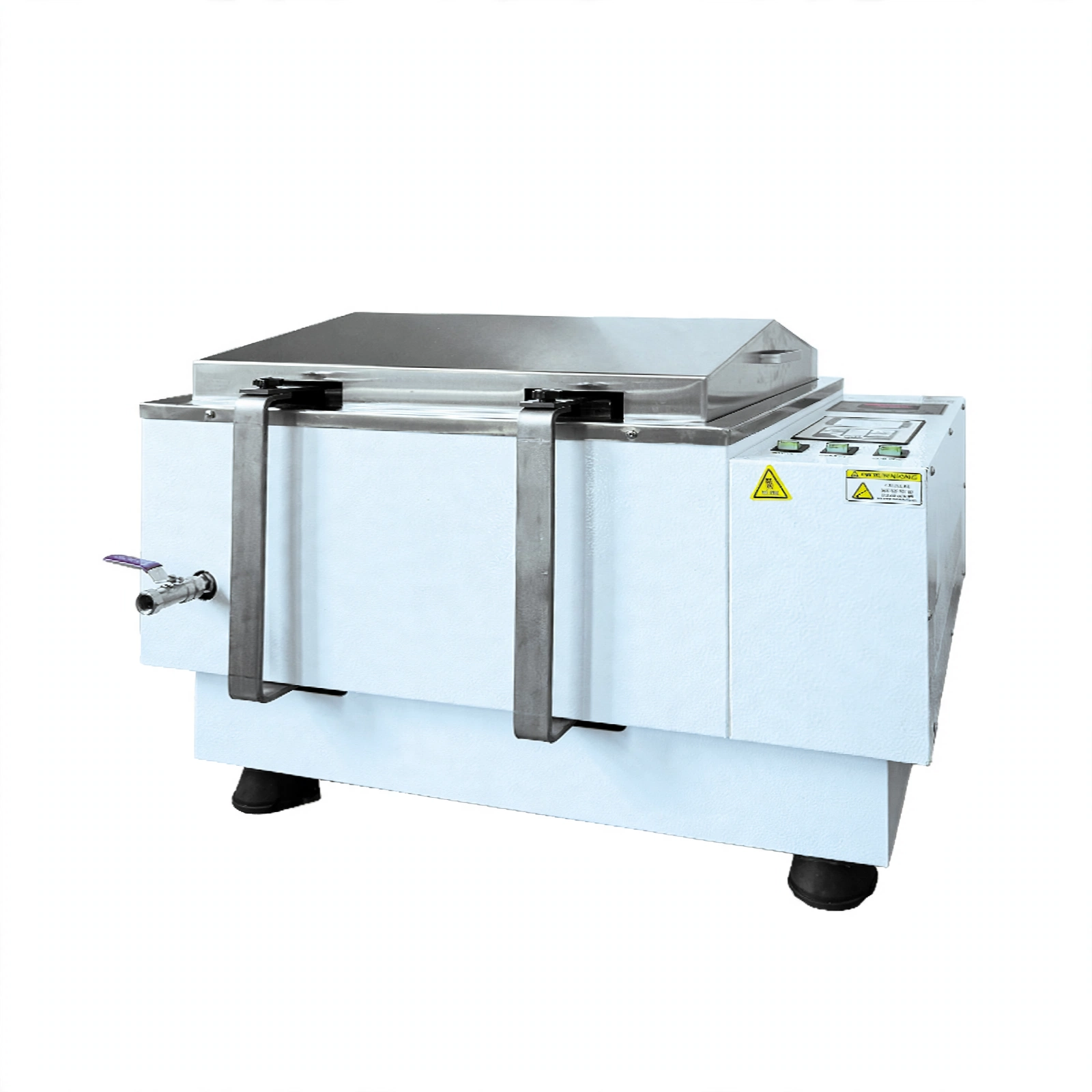

The Ultrasonic Thermostatic Shaking Water Bath integrates strong cavitation, accurate heating, and variable-speed orbital motion into one compact unit. High-efficiency transducers pair with adaptive circuitry to sustain peak acoustic output as conditions shift. Shaking speed adjusts seamlessly for uniform processing, while built-in safeguards protect against excess temperature and electrical faults.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features:
1. Equipped with over-temperature alarm, as well as over-voltage, over-current and output short-circuit protection.
2. Stepless speed regulation, stable operation, simple and safe operation.
3. Adopts imported high-quality high-Q transducers and a unique ultrasonic generator, delivering strong and powerful ultrasonic output.
4. Automatic frequency tracking, which ensures optimal performance under various conditions and improves cleaning efficiency.
Technical Parameters:
| Model | SHZ-S10 |
| Shaking Amplitude | 20mm |
| Shaking Method | Reciprocation |
| Display | LCD display |
| Speed Range | 40~300rpm |
| Temp. Range | RT+5~100℃ |
| Temp. Resolution | 0.1℃ |
| Temp. Fluctuation | ≤±0.5℃ |
| Temp. Uniformity | ≤±1℃(@37) |
| Ultrasonic Frequency | 40KHz |
| Time Range | 1~9999min/h or continuous |
| Tray Size | 300*400mm |
| Power Supply | AC220V, 50/60Hz(Standard)；
AC110V, 60Hz(Optional, external transformer) |
| Ultrasonic Consumption | 600W |
| Heating Consumption | 1500W |
| Consumption | ≤2100W |
| Internal Size(W*D*H) | 490*390*170mm |
| External Size(W*D*H) | 700*550*490mm |
| Net Weight | 45kg |
| Packing Size(W*D*H) | 800*620*700mm |
| Gross Weight | 58kg |
