UV Lamp

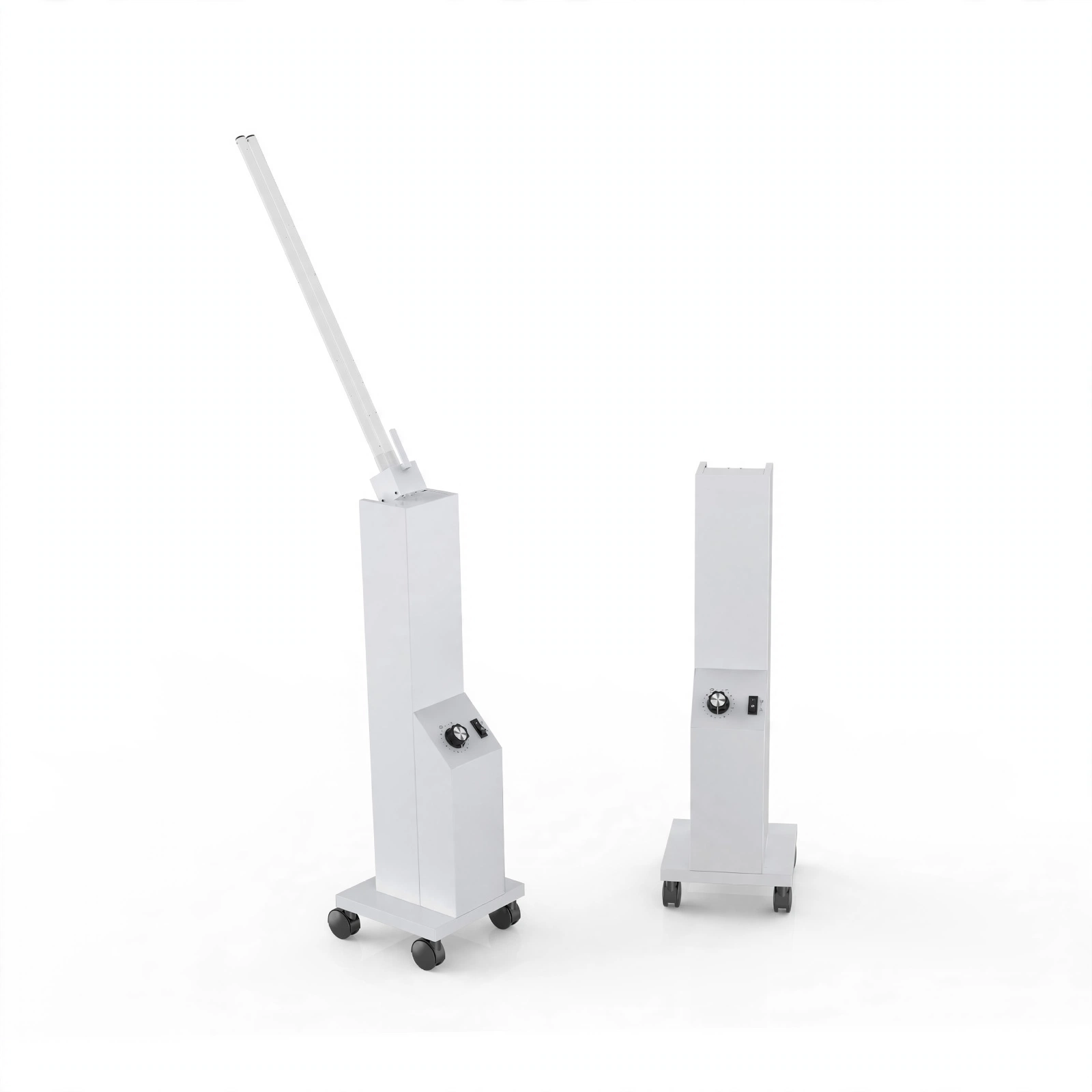

UV Disinfection Trolley ZY-II-ZW65D17W ZY-II-ZW120D17W OLB-UDT1

Model ZY-II-ZW65D17W ZY-II-ZW120D17W OLB-UDT1

It is suitable for public places such as medical treatment, families, kindergartens, as well as food manufacturing, animal husbandry and poultry breeding, and can also be used for bacterial research units, industry for bacterial research, photochemical reactions, etc., to solve the problems caused by traditional disinfection methods.

Net weight
2.55kg / 3.22kg / 6kg
Dimensions
200*200*674mm / 251*2…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Chassis 360° universal wheels, all-round sterilization and disinfection.

2. The UV disinfection lamp can be adjusted freely within 0~180 degrees without fixed restrictions.

3. Safety quartz glass lamp, high ultraviolet perspective, high intensity, long life.

4. Optional wireless remote control switch.

5. Delayed start, one-button sterilization and disinfection(Only for ZY-II-ZW65D17W and ZY-II-ZW120D17W)

6. It can be timed for 120 minutes, and the required sterilization time can be set according to the area of the disinfected place.

7. Fully enclosed UV lamp holder, not easy to fall off. The lamp can be concealed for convenient storage and better protection (Only for MF-Ⅱ-ZW30S19W).

Technical Parameters:

Model ZY-II-ZW65D17W

ZY-II-ZW120D17W

 MF-Ⅱ-ZW30S19W
Applicable Space

≥30m3
UV Lamp Life

≤8000h

 ≤5000h
UV Wavelength

253.7nm
Length of Lamp Tube

530mm

 700mm 894mm*2
Adjustable Angle of Lamp Tube

0~180°
Illumination

≥200μW/cm2

 Single lamp tube: ≥107μW/cm2

Two light tubes: ≥214μW/cm2
Knob Timer

20, 40, 60, 80, 100, 120 minutes timing

 0~120 minutes adjustable
Teleswitch (Optional)

Remote control distance:

220V ≤30 meters

110V ≤10 meters

can penetrate the wall, controllable switch

 Remote control distance ≤30 meters, can penetrate the wall thickness 80, 110cm, controllable switch, 15, 30, 60, 120 minutes timing(Only for 220V)
Power of Light Lamp Tube 65W

120W

 30W*2
Power Supply

AC220V, 50/60Hz (Standard); AC110V, 50/60Hz (Optional)
External Size (W*D*H) 200*200*674mm

251*251*872mm

 280*340*1080mm
Net Weight 2.55kg

3.22kg

 6kg
Package Size (W*D*H) 221*221*760mm

273*273*895mm

 220*310*1060mm
Gross Weight 3.5kg

5.1kg

 7kg
The details

Specifications

Model
ZY-II-ZW65D17W / ZY-II-ZW120D17W / MF-Ⅱ-ZW30S19W
Applicable Space
≥30m3
UV Lamp Life
≤8000h / ≤5000h / ≤5000h
UV Wavelength
253.7nm
Length of Lamp Tube
530mm / 700mm / 894mm*2
Adjustable Angle of Lamp Tube
0~180°
Illumination
≥200μW/cm2 / Single lamp tube: ≥107μW/cm2Two light tubes: ≥214μW/cm2 / Single lamp tube: ≥107μW/cm2Two light tubes: ≥214μW/cm2
Knob Timer
20, 40, 60, 80, 100, 120 minutes timing / 0~120 minutes adjustable / 0~120 minutes adjustable
Teleswitch (Optional)
Remote control distance:220V ≤30 meters110V ≤10 meterscan penetrate the wall, controllable switch / Remote control distance ≤30 meters, can penetrate the wall thickness 80, 110cm, controllable switch, 15, 30, 60, 120 minutes timing(Only for 220V) / Remote control distance ≤30 meters, can penetrate the wall thickness 80, 110cm, controllable switch, 15, 30, 60, 120 minutes timing(Only for 220V)
Power of Light Lamp Tube
65W / 120W / 30W*2
Power Supply
AC220V, 50/60Hz (Standard); AC110V, 50/60Hz (Optional)
External Size (W*D*H)
200*200*674mm / 251*251*872mm / 280*340*1080mm
Net Weight
2.55kg / 3.22kg / 6kg
Package Size (W*D*H)
221*221*760mm / 273*273*895mm / 220*310*1060mm
Gross Weight
3.5kg / 5.1kg / 7kg
