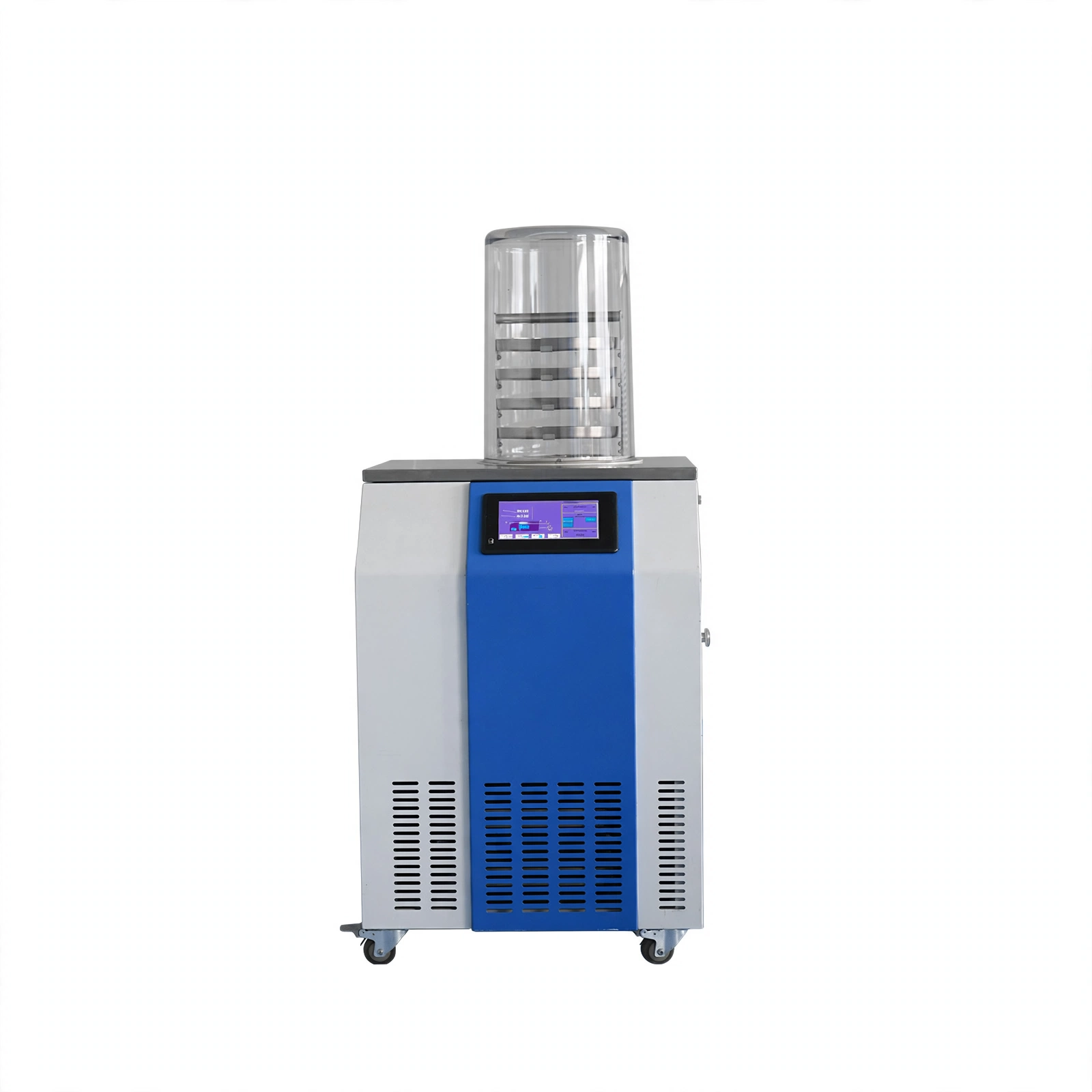

Vacuum freeze-drying technology is also known as sublimation drying. The principle is to freeze a sample containing water in advance, and then sublimate its moisture under vacuum. The original biological, chemical and physical properties of the freeze-dried samples remain basically the same, and they are easy to be stored for a long time. After adding water, the samples can be restored to the state before freeze-drying, and their original biochemical characteristics can be maintained. Therefore, freeze-drying technology is widely used in food, chemical, biological products and other fields.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Technical Parameters:
|
Model |
BK-FD18S | BK-FD18P | BK-FD18T | BK-FD18PT | |
|
Type |
Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold |
|
|
Freeze Drying Area |
0.18㎡(Standard) 0.27㎡(Optional) |
0.09㎡ |
|||
|
Tray |
4pcs(Standard) 6pcs(Optional) |
3pcs |
|||
|
Height Between Trays |
75mm |
/ |
|||
|
Cold Trap Temperature |
≤-60℃(No load)(-80℃, -110℃optional) |
||||
|
Cold Trap Capacity |
28L |
||||
|
Cold Trap Size(Diameter*H) |
Φ300*410mm |
||||
|
Vacuum Degree |
≤5Pa |
||||
|
Water Capture Capacity |
6L/24h |
||||
|
Tray Size(D*H) |
Φ240*20mm |
Φ200*20mm |
|||
|
Freeze Drying Time |
24~36h |
||||
|
Suggested Loading Capacity (Liquid) |
1.8L(Standard) 2.7L(Optional) |
0.9L |
|||
|
Total Loading Capacity(Liquid) |
3.6L(Standard) 5.4L(Optional) |
1.8L |
|||
|
Drying Chamber Size(Diameter*H) |
Φ300*465mm |
||||
|
Total Qty. of Vial Φ22 |
244(Standard) 366(Optional) |
183 |
|||
|
Total Qty. of Vial Φ16 |
460(Standard) 690(Optional) |
345 |
|||
|
Total Qty. of Vial Φ12 |
820(Standard) 1230(Optional) |
615 |
|||
|
Refrigerant |
-60℃: R600a, R23 -80℃: R404a, R23 |
||||
|
Cooling System |
Standard: Air cooling Optional: Water cooling |
||||
|
Power Supply |
Standard: 220V, 50Hz Optional: 220V, 60Hz, 110V, 60Hz |
||||
|
Power Consumption |
1800W |
||||
|
Standard Accessory |
Vacuum pump 4L/S, Material tray*4(Material tray*3 for T/PT), Drying rack*1, Cover*1, Acrylic bucket*1(all models) Conical-mouth flask 100ml*2pcs, 200ml*2pcs, 250ml*2pcs, 500ml*2pcs, Switch valve*8 pcs(only for model BK-FD18P/PT), USB port |
||||
|
Optional Function&Accessory |
Vacuum pump of other specifications, oil mist filter, automatic air intake function, automatic water drainage function, and other customization(for all models) 600ml/1200ml wide-mouth flask(for BK-FD18P/PT) Tray*2(for BK-FD10S/P) |
||||
|
External Size(W*D*H) |
542*686*938mm |
||||
|
Package Size(W*D*H) |
Main Body |
835*680*1230mm |
|||
| Accessory |
725*665*705mm |
||||
|
Gross Weight |
Main Body |
-60℃: 118kg -80℃: 136kg |
|||
| Accessory | 52kg | 54kg | 60kg | 62kg | |
