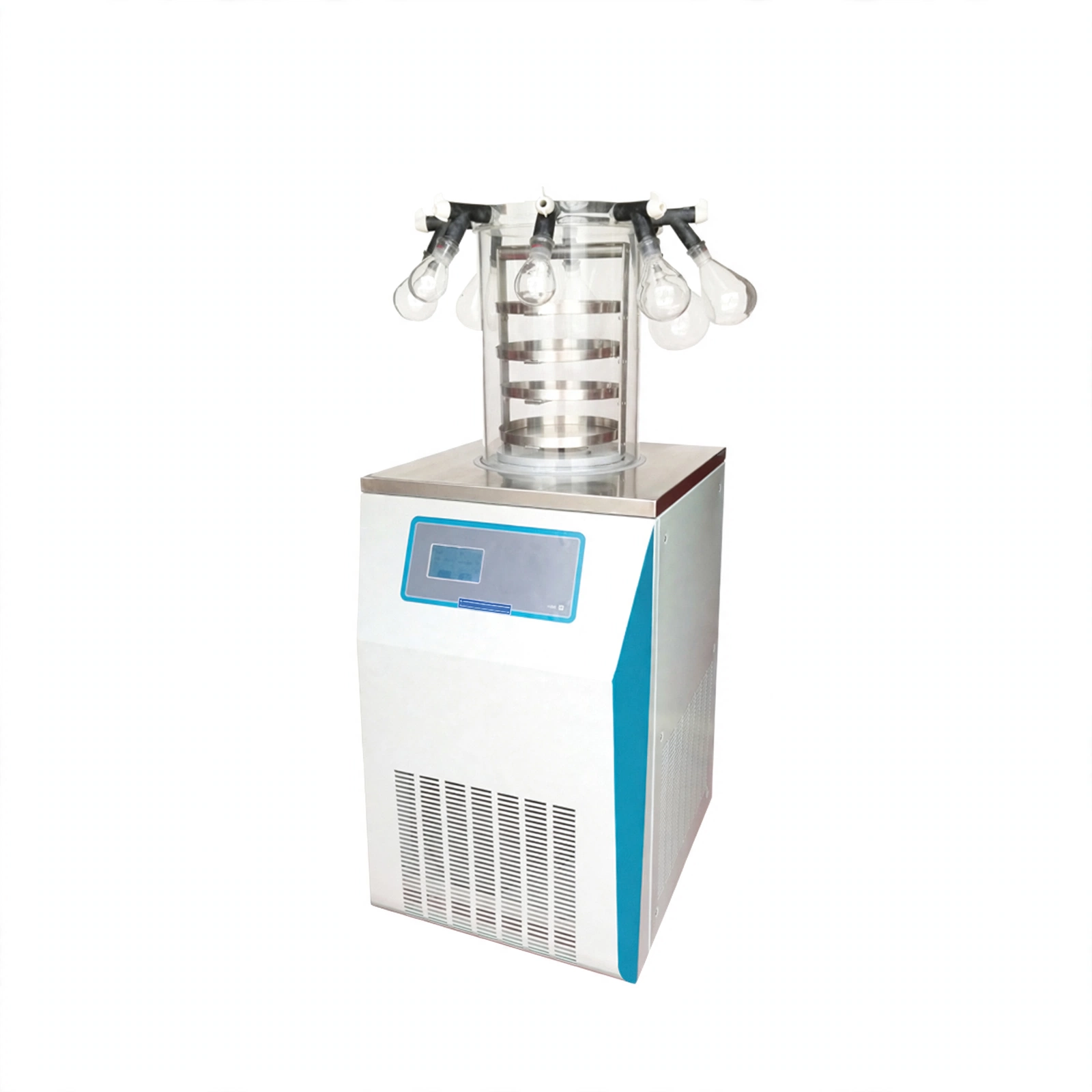

The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples. Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Models:
|
Model |
BK-FD18S(-56/-80) | BK-FD18P(-56/-80) | BK-FD18T(-56/-80) | BK-FD18PT(-56/-80) | |
|
Type |
Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold |
|
|
Freeze Drying Area |
0.18m² |
0.09m² |
|||
|
Tray |
4pcs |
3pcs |
|||
|
Height Between Trays |
70mm |
||||
|
Cold Trap Temperature |
≤-56℃/-80℃(Optional) |
||||
|
Cold Trap Capacity |
23L |
||||
|
Cold Trap Size (Dr*H) |
Φ270*400mm |
||||
|
Vacuum Degree |
<5Pa |
||||
|
Water Capture Capacity |
6kg/24h |
||||
|
Tray Size (D*H) |
Φ240*18mm |
Φ200*18mm |
|||
|
Freeze Drying Time |
18-36h |
||||
|
Loading Capacity/Shelf (Liquid) |
0.45L |
0.3L |
|||
|
Total Loading Capacity (Liquid) |
1.8L |
0.9L |
|||
|
Drying Chamber Size (D*H) |
Φ300*445mm | Φ300*465mm | Φ300*540mm | Φ300*570mm | |
|
Can Load Vials Qty |
Φ22mm |
/ |
270 |
||
| Φ16mm |
/ |
555 |
|||
| Φ12mm |
/ |
990 |
|||
|
Refrigerant |
R404+R23 |
||||
|
Cooling System |
Air cooling |
||||
|
Consumption |
-56℃: 1.4KW; |
-56℃: 1.4KW; -80℃: 2.1KW. |
|||
|
Power Supply |
AC220V, 50Hz/60Hz (single phase); 110V, 60Hz (single phase) |
||||
|
Standard Accessory |
-56℃ cold trap, Vacuum pump 4L/S, 14.4m³, Material tray(for all models) Flasks 100ml*2, 250ml*2, 500ml*2, 1000ml*2 (only for model BK-FD18P/PT) |
||||
|
Optional Function & Accessory |
-80℃ -110℃ cold trap, Anti-reverse oil stop valve, Oil mist filter, Import vacuum pump(for all models); Conical-mouth flask and wide-mouth flask(for BK-FD18P/PT) |
||||
|
External Size (W*D*H) |
630*580*970/1415mm | 630*580*970/1435mm | 630*580*970/1510mm | 630*580*970/1810mm | |
|
Package Size(W*D*H)mm / |
Main Body |
790*690*1200(148kg) |
|||
| Drying Chamber | 420*420*560(14kg) |
430*430*660 (26kg) |
|||
| Vacuum Pump |
620*370*450 (32kg) |
||||
