Shaking Incubator

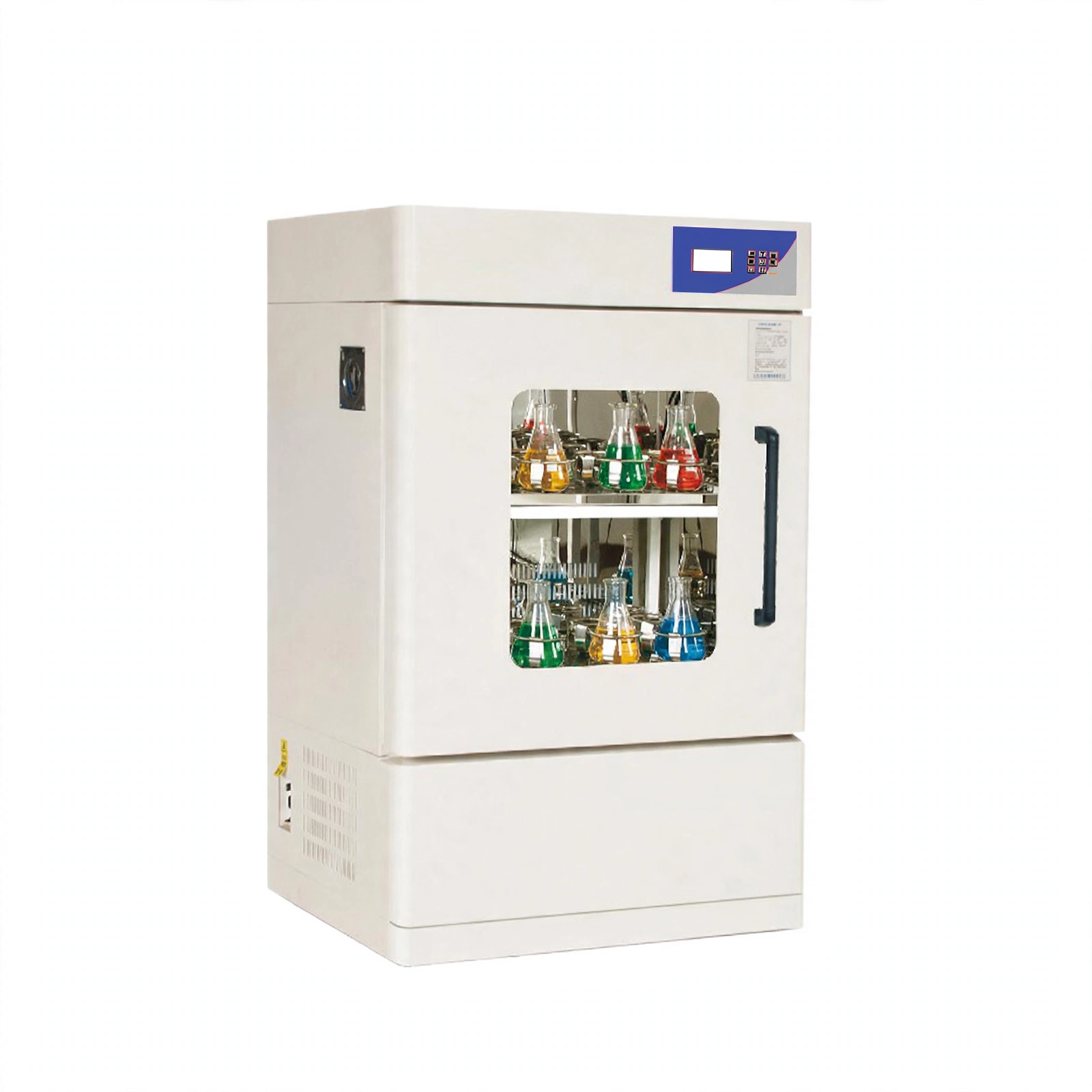

Vertical Type Shaking Incubator Single Door Double Door(BJPX-D)

Model BJPX-1102D BJPX-2102D

The Vertical Type Shaking Incubator is a versatile laboratory device designed for cultivating microorganisms, cell cultures, and other biological samples that require controlled temperature and shaking conditions.

Capacity
175L
Power
600W / 850W
Net weight
160kg / 180kg
Dimensions
700*580*1280mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Multi-section speed, temperature, time control system. A variety of different speed, temperature and time experimental modes can be set at one time, and the operation mode can be automatically changed during operation.

2. Super low speed start, the speed is out of control, automatic lock, adjustable starting speed. Unique dynamic balance design to ensure smooth operation.

3. Silent fan design, forced convection mode and unique air duct design ensure good temperature uniformity.

4. Automatic refrigeration mode, using environmentally friendly refrigerant, can automatically adjust the opening and closing of the refrigeration system according to the change of environmental temperature, without manual operation.(Refrigeration type)

5. Intelligent refrigeration frost-free operation technology, automatic defrosting function, defrosting time and defrosting interval can be set freely, so that the equipment can run stably for a long time under low temperature. And has the refrigeration delay start function, effectively protect the compressor.(Refrigeration type)

6. Users can freely set three operation modes: forward, reverse and forward and reverse.

7. LCD liquid crystal display, temperature, time, speed with the interface display.

Technical Parameters:

Model BJPX-1102D BJPX-2102D
Capacity

175L
Temperature Control Range Ambient temperature+5~65℃ 4~65℃(@20℃)
Temperature Control Accuracy

±0.1℃
Temperature Uniformity

±0.5℃(@37℃, effective working surface)
Temperature Fluctuation

≤0.1℃(@37℃)
Timing Range

0~9999h/min(Can be untimed, continuous operation)
Control Mode

PID microcomputer control
Display

LCD display
Circulation Mode

Forced convection
Oscillation Mode

Rotary shaking
Control System Standard mode; Static mode; Persistent mode; Program control mode(Multi-section temperature, speed, time control)
Cyclotron Frequency Range

0, 20~350rpm(Can do static culture, cross or alternate operation)
Cyclotron Frequency Accuracy

±1rpm
Swing Amplitude of The Plate

Φ26mm(Can be customized Ф35(20~250rpm), Φ50(20~200rpm)
Refrigerant / R134a/210g
Max Capacity

Clamp Flask: 100ml*60 or 250ml*38 or 500ml*22 or 1000ml*16

Haftplatte: 100ml*60 or 250ml*36 or 500ml*24 or 1L*16
Defrost Function / Automatic defrosting
Auxiliary Function

Ultra-low speed start, adjustable start speed, over-speed automatic protection, monitoring timer, parameter memory, power restoration function, refrigeration unit overload protection and call delay start(for BJPX-2102D), upper and lower limit over-temperature sound and light alarm, automatic stop upon opening door, set parameters to check, monitor temperature and ambient temperature correction,UV disinfection function.
Material

External material: ABS; Internal material: stainless steel
Power Supply

AC220V, 50Hz(Standard); 220V, 60Hz; 110V, 50/60Hz(Optional, external transformer)
Consumption 600W 850W
Shelves

500*360mm, 2pcs
Standard Accessories

Clamp Flask: 250ml*24, shelf*2
Optional Accessories

Lighting function,  printer, haftplatte
External Size(W*D*H)

700*580*1280mm
Package Size(W*D*H)

825*720*1490mm
Net Weight 160kg 180kg
Gross Weight 200kg 220kg
The details

Specifications

Model
BJPX-1102D / BJPX-2102D
Capacity
175L
Temperature Control Range
Ambient temperature+5~65℃ / 4~65℃(@20℃)
Temperature Control Accuracy
±0.1℃
Temperature Uniformity
±0.5℃(@37℃, effective working surface)
Temperature Fluctuation
≤0.1℃(@37℃)
Timing Range
0~9999h/min(Can be untimed, continuous operation)
Control Mode
PID microcomputer control
Display
LCD display
Circulation Mode
Forced convection
Oscillation Mode
Rotary shaking
Control System
Standard mode; Static mode; Persistent mode; Program control mode(Multi-section temperature, speed, time control)
Cyclotron Frequency Range
0, 20~350rpm(Can do static culture, cross or alternate operation)
Cyclotron Frequency Accuracy
±1rpm
Swing Amplitude of The Plate
Φ26mm(Can be customized Ф35(20~250rpm), Φ50(20~200rpm)
Refrigerant
/ / R134a/210g
Max Capacity
Clamp Flask: 100ml*60 or 250ml*38 or 500ml*22 or 1000ml*16Haftplatte: 100ml*60 or 250ml*36 or 500ml*24 or 1L*16
Defrost Function
/ / Automatic defrosting
Auxiliary Function
Ultra-low speed start, adjustable start speed, over-speed automatic protection, monitoring timer, parameter memory, power restoration function, refrigeration unit overload protection and call delay start(for BJPX-2102D), upper and lower limit over-temperature sound and light alarm, automatic stop upon opening door, set parameters to check, monitor temperature and ambient temperature correction,UV disinfection function.
Material
External material: ABS; Internal material: stainless steel
Power Supply
AC220V, 50Hz(Standard); 220V, 60Hz; 110V, 50/60Hz(Optional, external transformer)
Consumption
600W / 850W
Shelves
500*360mm, 2pcs
Standard Accessories
Clamp Flask: 250ml*24, shelf*2
Optional Accessories
Lighting function, printer, haftplatte
External Size(W*D*H)
700*580*1280mm
Package Size(W*D*H)
825*720*1490mm
Net Weight
160kg / 180kg
Gross Weight
200kg / 220kg
