Shaking Incubator

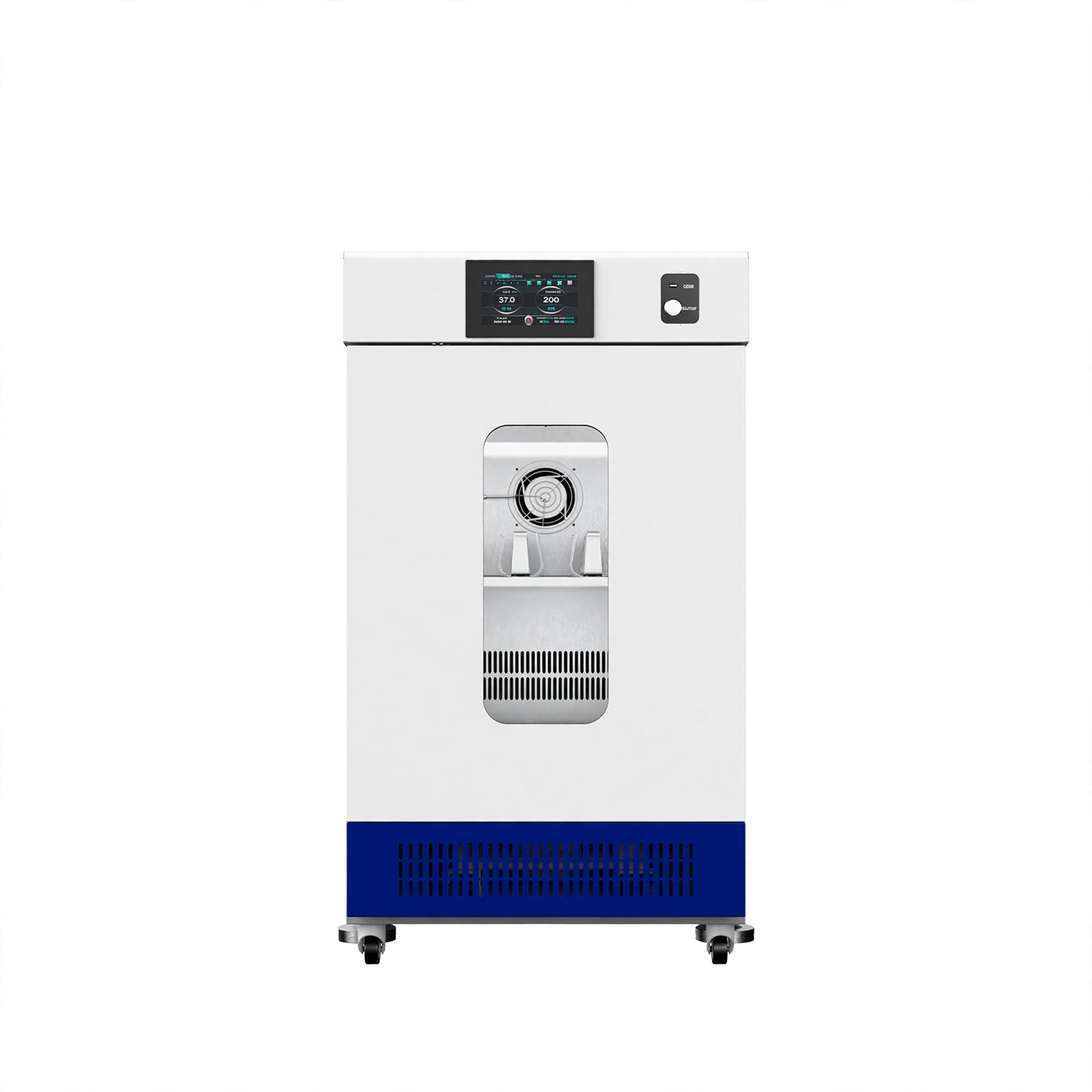

Vertical Type Shaking Incubator

Model BJPX-SL10-L BJPX-SL10 BJPX-SL20-L BJPX-SL20 Large capacity Refrigerated

The Large Capacity Vertical Type Shaking Incubator is a high-performance device designed for precise temperature control and uniform shaking of samples in laboratories. Ideal for applications in microbiology, cell culture, and biochemistry, this incubator offers advanced features to ensure optimal conditions for sample growth and development.

Max. speed
300 rpm
Capacity
157L
Temperature
RT+5~60℃ / 4~60℃ / 4~…
Power
850W / 1000W / 1000W…
Net weight
120kg / 145kg / 145kg…
Dimensions
650*785*1135mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. Large hollow electric heating perspective window, anti-condensation, convenient for customers to check the running condition of the box.

2. The display interface has the functions of historical data, curve, alarm record can be queried, data can be saved and exported, password lock screen protection and Chinese and English switching.

3. Humanized design of the door stop function, to protect the safety of personnel.

4. Box padding foot height adjustable, standard universal casters, easy to move the box.

5. Professionally designed side air vents to meet the oxygen requirement of samples.

Technical Parameters:

Model BJPX-SL10-L

BJPX-SL10

 BJPX-SL20-L BJPX-SL20
Capacity 157L
Display LCD

7 inch touch screen

 LCD 7 inch touch screen
Circulation Mode

Forced convection
Shaking Mode

Rotary shaking
Drive Mode

Three axis balanced drive type
Vibration Range

Φ26mm
Rotating Speed

30~300rpm
Rotating Accuracy

±1r/min
Temp. Range

RT+5~60℃

4~60℃
Temp. Control Accuracy

0.1℃
Temp. Uniformity

≤±1℃(37℃）
Temp. Fluctuation

≤±0.5℃
Timing Range 0~9999min(h)

0~999h59min

 0~9999min(h) 0~999h59min
Shaking Plate Size

413*466mm(Two layers)
Max. Capacity

Upper Layer: 100ml*25 or 250ml*16 or 500ml*12 or 1000ml*9(Flask clamp)

Lower Layer: 100ml*20 or 250ml*12 or 500ml*9 or 1000ml*6(Flask clamp)

Tube Rack*2

96-well Plate*16

Clamping Rod Shaking Plate*2
Standard. Capacity

Upper Layer: 250ml*12 or 500ml*9 or 1000ml*6(Flask clamp)

Lower Layer: Universal spring rack
Lighting Mode

LED lamp*1
Sterilization Mode

UV lamp*1
Refrigerant

/

R290, 75g
Ambient Temp.

15~35℃
Curve Programming Fixed value

Fixed and multi-stage

 Fixed value Fixed and multi-stage
Internal Material

304 stainless steel
Consumption

850W

1000W
Power Supply

AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
Internal Size(W*D*H)

495*505*630mm
External Size(W*D*H)

650*785*1135mm
Package Size(W*D*H)

780*920*1290mm
Net Weight

120kg

145kg
Gross Weight

140kg

165kg
The details

Specifications

Model
BJPX-SL10-L / BJPX-SL10 / BJPX-SL20-L / BJPX-SL20
Capacity
157L
Display
LCD / 7 inch touch screen / LCD / 7 inch touch screen
Circulation Mode
Forced convection
Shaking Mode
Rotary shaking
Drive Mode
Three axis balanced drive type
Vibration Range
Φ26mm
Rotating Speed
30~300rpm
Rotating Accuracy
±1r/min
Temp. Range
RT+5~60℃ / 4~60℃ / 4~60℃ / 4~60℃
Temp. Control Accuracy
0.1℃
Temp. Uniformity
≤±1℃(37℃）
Temp. Fluctuation
≤±0.5℃
Timing Range
0~9999min(h) / 0~999h59min / 0~9999min(h) / 0~999h59min
Shaking Plate Size
413*466mm(Two layers)
Max. Capacity
Upper Layer: 100ml*25 or 250ml*16 or 500ml*12 or 1000ml*9(Flask clamp)Lower Layer: 100ml*20 or 250ml*12 or 500ml*9 or 1000ml*6(Flask clamp)Tube Rack*296-well Plate*16Clamping Rod Shaking Plate*2
Standard. Capacity
Upper Layer: 250ml*12 or 500ml*9 or 1000ml*6(Flask clamp)Lower Layer: Universal spring rack
Lighting Mode
LED lamp*1
Sterilization Mode
UV lamp*1
Refrigerant
/ / R290, 75g / R290, 75g / R290, 75g
Ambient Temp.
15~35℃
Curve Programming
Fixed value / Fixed and multi-stage / Fixed value / Fixed and multi-stage
Internal Material
304 stainless steel
Consumption
850W / 1000W / 1000W / 1000W
Power Supply
AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)
Internal Size(W*D*H)
495*505*630mm
External Size(W*D*H)
650*785*1135mm
Package Size(W*D*H)
780*920*1290mm
Net Weight
120kg / 145kg / 145kg / 145kg
Gross Weight
140kg / 165kg / 165kg / 165kg
How ordering works

From enquiry to delivery

  1. 01Send your enquiry

    Request a quote on WhatsApp, or add several items to your enquiry list and send them together.

  2. 02Confirm the details

    We confirm configuration, voltage, accessories, availability and a delivered price.

  3. 03We source and ship

    We handle procurement, packing and international shipping to your facility.

Need a different configuration?

Tell us the application, capacity or budget. We will suggest the right model or source an alternative.
