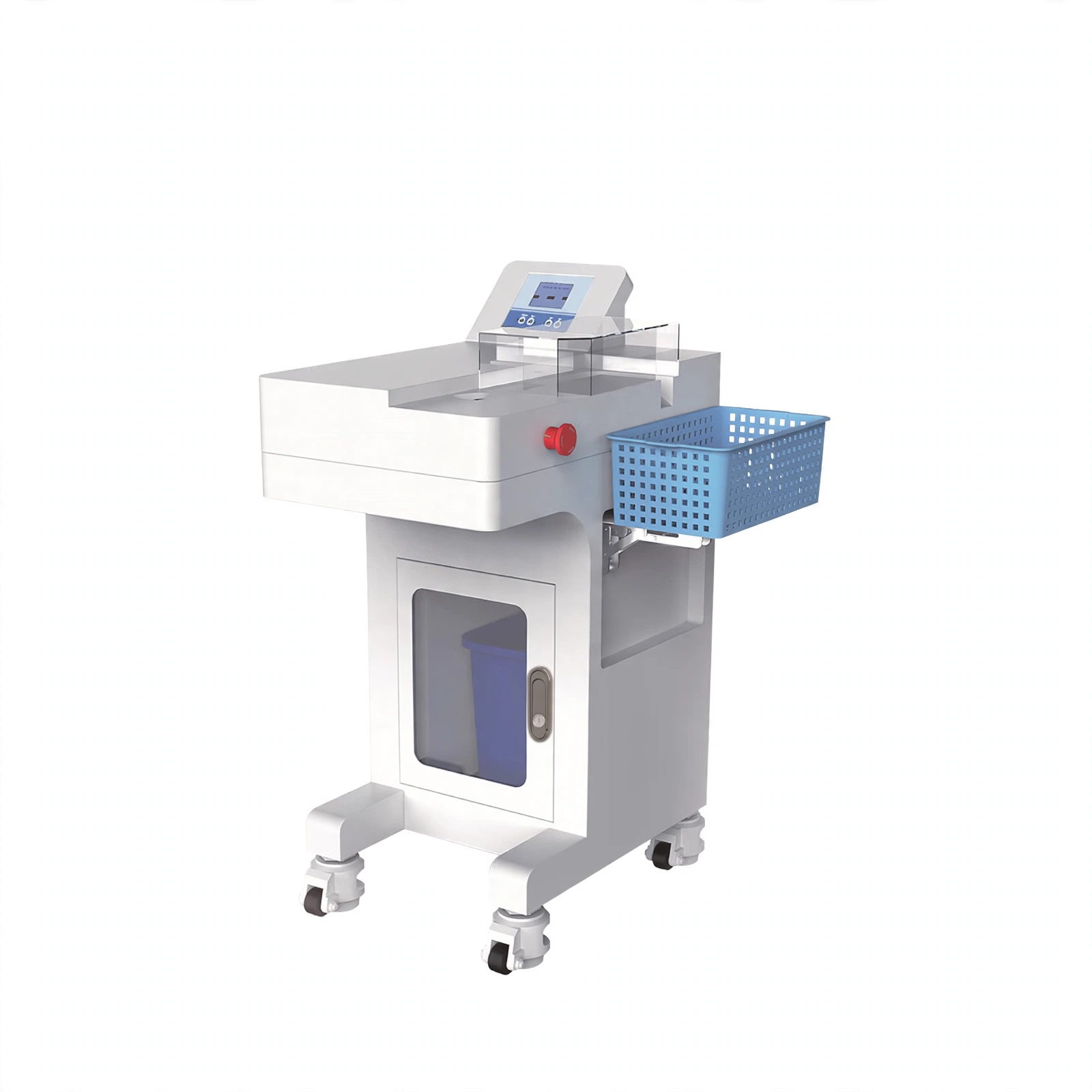

Vial Peeling Machine VDM-01 VDM-02

Model VDM-01 / VDM-02 Manual

Applications It is mainly used in the static dispensing center of hospitals to realize automatic capping of vials. The vials are placed upside down on the conveyor track and the capping tool is used to separate the vials from the caps, which can greatly improve the efficiency of manual capping. This machine has an automatic counting function. While peeling the caps, the screen displays the number of peeled caps to ensure the accuracy of the number of peeled caps.

Max. speed
5 levels
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features

1.Suitable for various specifications of vials;

2.Automatic counting;

3.The speed is adjustable in five levels;

4.The fastest peeling speed for a single specification is 4,500 pieces/hour;

5.Visualization of blanking area;

6.The splicing plate can be retracted;

7.Emergency stop device;

8.With safety shield

Technical Parameters

Model VDM-01 VDM-02
Product Size 366*546*860mm 725*586*820mm
Product Weight 35kg 68kg
Suitable Vial Size Caliber 20mm, height≤87mm, bottle diameter≤33mm, also can be customized Caliber 20mm, height≤87mm, bottle diameter≤33mm; Caliber 13mm, height≤70mm, bottle diameter≤2Op3mm, also can be customized
Operating Interface

3.5 inches LCD screen
Operating System

Embedded control systems
Delivery Method

Flat-belt conveyor
Peeling Method

Auto
Vial Receiving Method

Medicine frame receiving
Cap Dropping Method

Auto dropping, visible
Counting Method

Auto display
Speed Level

5 levels
Safety Device

Emergency stop, safety shield
Power Supply

110/220V, 50/60Hz
Packing Size 530*720*1070mm 915*730*980
Gross Weight 47kg 88kg
The details

Specifications

Model
VDM-01 / VDM-02
Product Size
366*546*860mm / 725*586*820mm
Product Weight
35kg / 68kg
Suitable Vial Size
Caliber 20mm, height≤87mm, bottle diameter≤33mm, also can be customized / Caliber 20mm, height≤87mm, bottle diameter≤33mm; Caliber 13mm, height≤70mm, bottle diameter≤2Op3mm, also can be customized
Operating Interface
3.5 inches LCD screen
Operating System
Embedded control systems
Delivery Method
Flat-belt conveyor
Peeling Method
Auto
Vial Receiving Method
Medicine frame receiving
Cap Dropping Method
Auto dropping, visible
Counting Method
Auto display
Speed Level
5 levels
Safety Device
Emergency stop, safety shield
Power Supply
110/220V, 50/60Hz
Packing Size
530*720*1070mm / 915*730*980
Gross Weight
47kg / 88kg
