Vacuum Pump

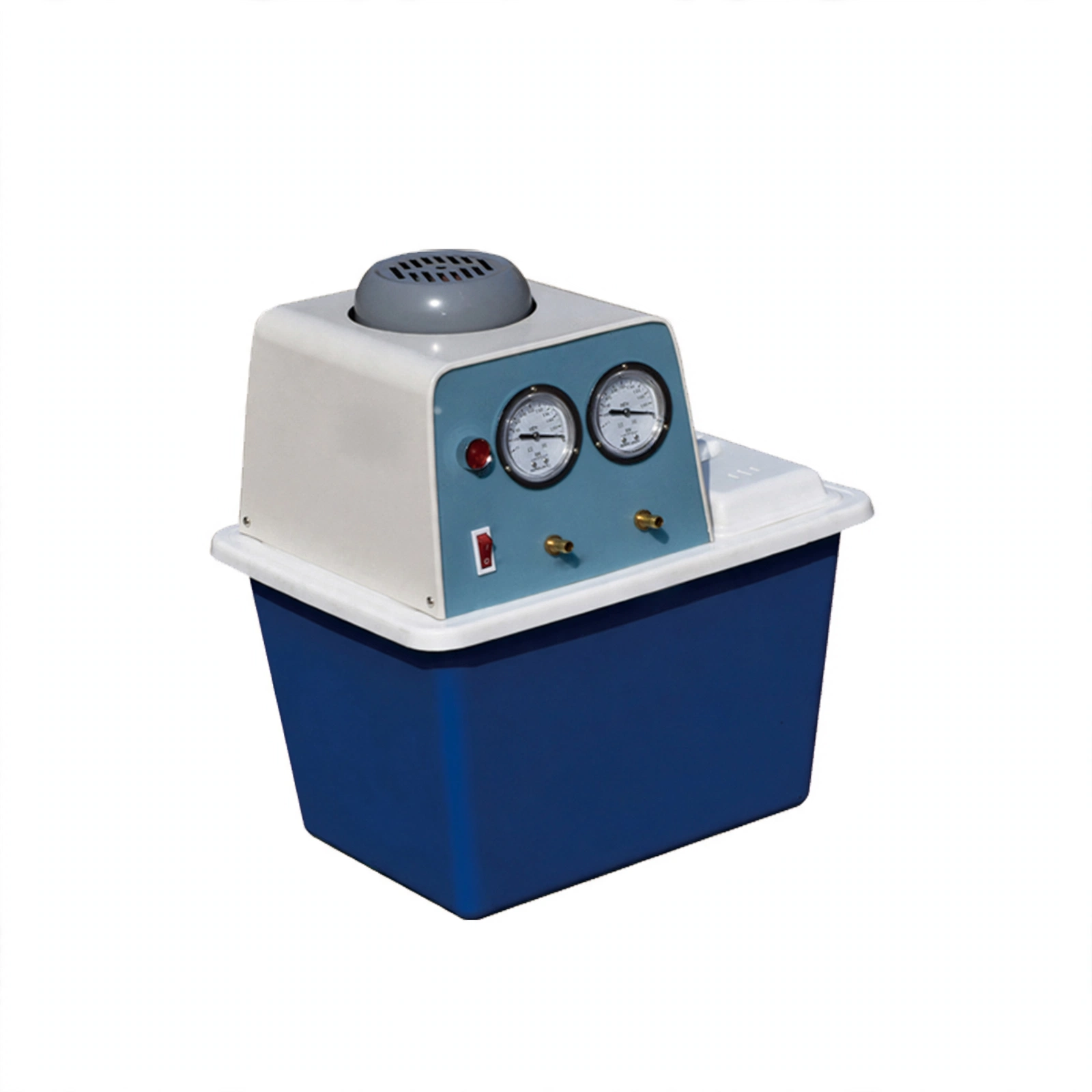

Water Circulating Vacuum Pump SHZ-DIII SHZ-95B

Model SHZ-DIII SHZ-95B

The Water Circulating Vacuum Pump is an efficient and environmentally friendly vacuum generation system widely used in laboratories and industrial applications.

Max. speed
10L/Min
Capacity
15L / 50L
Power
370W
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters:

Model SHZ-DIII(Four gauge four pumping) SHZ-95B
Pump Head 4 5
Speed of Evacuation

10L/Min
Vacuum

-0.098Mpa
Circulating Pump Flow 40L/min 80L/min
Pump Lift

12m
Material Anti-corrosion Anti-corrosion or stainless steel
Consumption 370W 370W
Capacity 15L 50L
Power Supply

Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz
Package Size(W*D*H) 460*370*570mm 520*430*900mm
Gross Weight 17kg 30kg
Applicable Rotary
Evaporator Model		 BK-RE-1A, RE-2010, RE 100-Pro, RE-2000A, RE-2000B, RE-2000E, RE-52A, RE-52C, RE-5299, RE-201D, RE-301, RE-501 ExRE-1002, ExRE-2002, ExRE-5003, RE-1002, RE-2002,

RE-5003

Note: Vacuum pump does not have the function of adjusting vacuum degree, if you need this function, you should match the vacuum control instrument.

The details

Specifications

Model
SHZ-DIII(Four gauge four pumping) / SHZ-95B
Pump Head
4 / 5
Speed of Evacuation
10L/Min
Vacuum
-0.098Mpa
Circulating Pump Flow
40L/min / 80L/min
Pump Lift
12m
Material
Anti-corrosion / Anti-corrosion or stainless steel
Consumption
370W
Capacity
15L / 50L
Power Supply
Standard: AC220V, 50/60Hz; Optional: AC110V, 60Hz
Package Size(W*D*H)
460*370*570mm / 520*430*900mm
Gross Weight
17kg / 30kg
Applicable RotaryEvaporator Model
BK-RE-1A, RE-2010, RE 100-Pro, RE-2000A, RE-2000B, RE-2000E, RE-52A, RE-52C, RE-5299, RE-201D, RE-301, RE-501 / ExRE-1002, ExRE-2002, ExRE-5003, RE-1002, RE-2002,RE-5003
