-40℃ Freezer

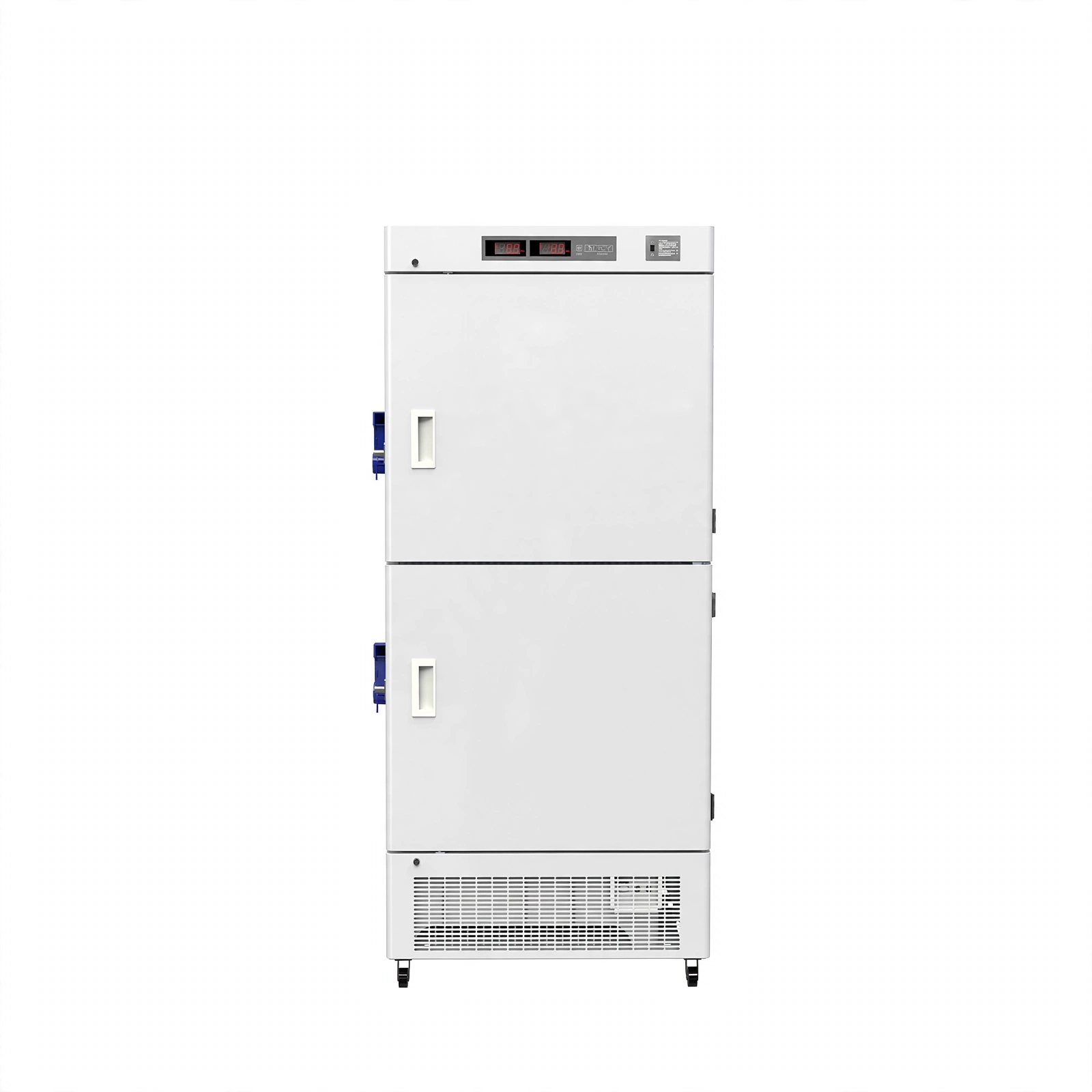

-40℃ Freezer BDF-40V368D BDF-40V528D

Model BDF-40V368D BDF-40V528D

-40℃ Low Temperature Freezer Two rooms design is suitable for storing multi kinds of samples that need different temperature, or some samples that need separate storage. This type of freezers has independent temperature control to help you save both room and power.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters:

Model

 BDF-40V368D BDF-40V528D

Capacity

 368L 528L

Temp. Range

-15~-40℃

Temp. Accuracy

0.1℃

Temp. Uniformity

≤4℃

Temp. Stability

≤4℃

Recovery Time(Recover to -37℃ in an ambient temp. of  25℃)

≤30min

Cooling Time(Cool down to -40℃ in an ambient temp. of  25℃)

≤3h

Control System

Microprocessor control

Display

LED display

Alarm

High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm

Refrigeration Type

Direct-cooling

Refrigerant

 Upper chamber: R290, 48g;

Lower chamber: R290, 48g

 Upper chamber: R290, 63g;

Lower chamber: R290, 63g

Compressor

International famous brand compressor/2

Condenser&Evaporator

Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator

Defrost

Manual defrost

Construction

Polyurethane cyclopentane foam

Material

 Internal Material

304 stainless steel
External Material

Sprayed steel plate

Door

Outer door: cyclopentane integral foam outer door*2

Inner door: sprayed steel plate door*4

Consumption

 861W 909W

Power Supply

 AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional)

Casters

Yes

Shelf

4

Standard Accessory

Test hole*2, USB interface

Optional Accessory

Temperature recorder, RS485 interface, outer door lock

Internal Size(W*D*H)

Upper Chamber

580*575*563mm

720*649*563mm

Lower Chamber

External Size(W*D*H)

 750*736*1884mm 890*810*1884mm

Package Size(W*D*H)

 890*880*2100mm 1030*950*2100mm

Net Weight

 153kg 177kg

Gross Weight

 168kg 200kg
The details

Specifications

Ask our team for the full specification sheet for this model.
