-86℃ Ultra-low Temperature Freezer

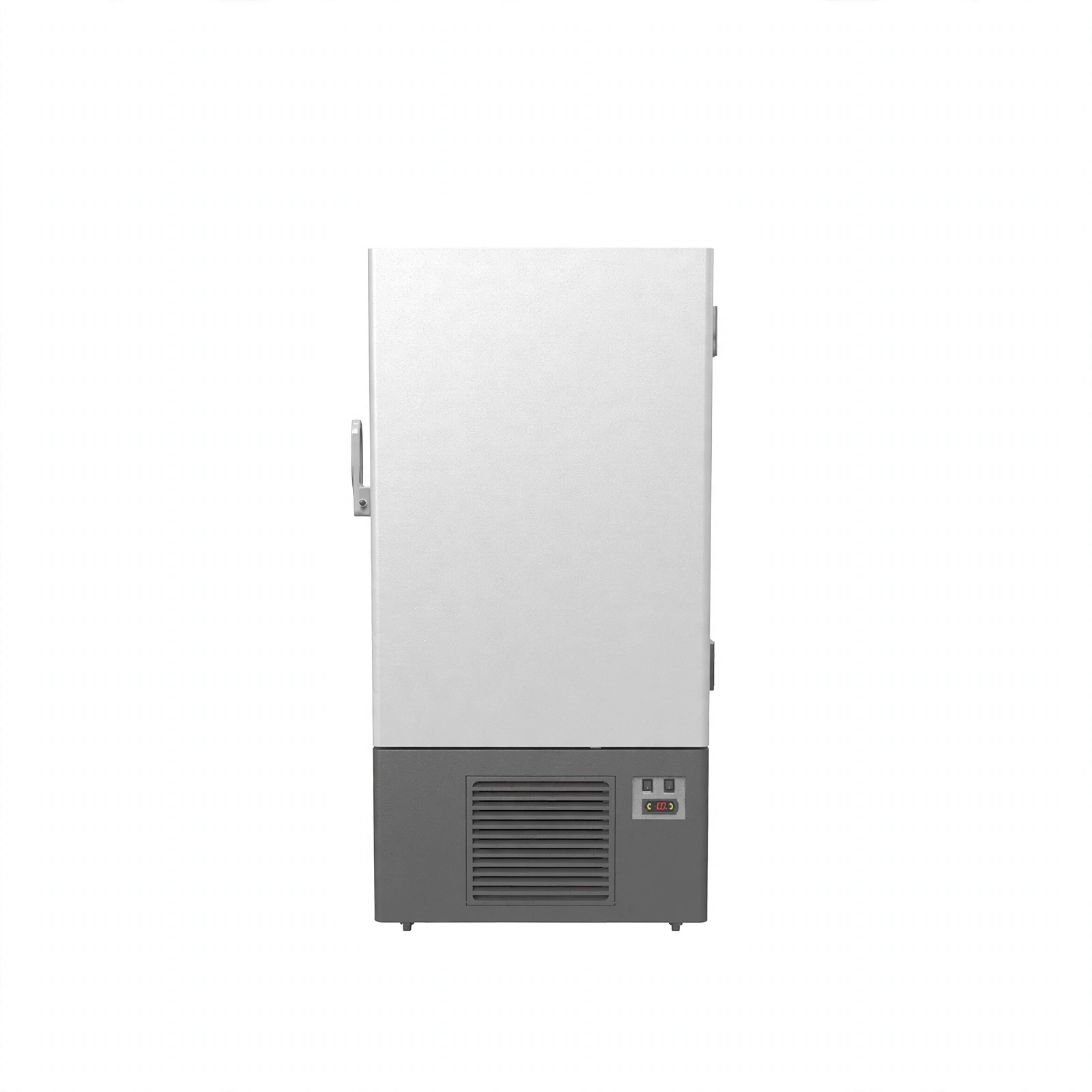

-86℃ Freezer BDF-86V158

Model BDF-86V158 Refrigerated

The -86 ℃ freezer ‌ is a kind of ultra-low temperature refrigeration equipment, which is widely used in scientific research, medical treatment, biological engineering and other fields. Its main function is to provide an extremely low temperature environment to preserve temperature-sensitive samples and materials.

A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Technical Parameters:

Model

BDF-86V168

Capacity

158L

Temp. Range

-40~-86℃

Temp. Accuracy

0.1℃

Temp. Uniformity

±4℃

Temp. Stability

≤6℃

Recovery Time(Recover to -75℃ in an ambient temp. of 25℃)

≤15min

Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃)

≤4h

Control System

Microprocessor control

Display

LED

Alarm

High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h)

Refrigeration Type

Direct-cooling

Refrigerant

R600a/R1150/R14, 137g

Compressor

International famous brand compressor/1

Condenser&Evaporator

Micro channel condenser; built-in coil type, copper pipe

Defrost

Manual defrost

Construction

Polyurethane cyclopentane foam

Material

 Internal Material

SUS304 stainless steel
External Material

Sprayed steel plate

Door

Outer door: cyclopentane monomer foam door*1

Inner door: cyclopentane monolithic foaming, stainless steel door*3

Consumption

650W

Apparent power: 858VA

Power Supply

AC220V, 50Hz(Standard);

220V, 60Hz, 110V, 60Hz(Optional, external transformer)

Casters

Yes

Shelf

2

Standard Accessory

Test port*2

Optional Accessory

RS485 interface, USB interface, liquid nitrogen backup system, temperature recorder

Internal Size(W*D*H)

465*455*820mm

External Size(W*D*H)

844*807*1594mm

Package Size(W*D*H)

1000*970*1790mm

Net Weight

168kg

Gross Weight

221kg
The details

Specifications

Ask our team for the full specification sheet for this model.
