- Model

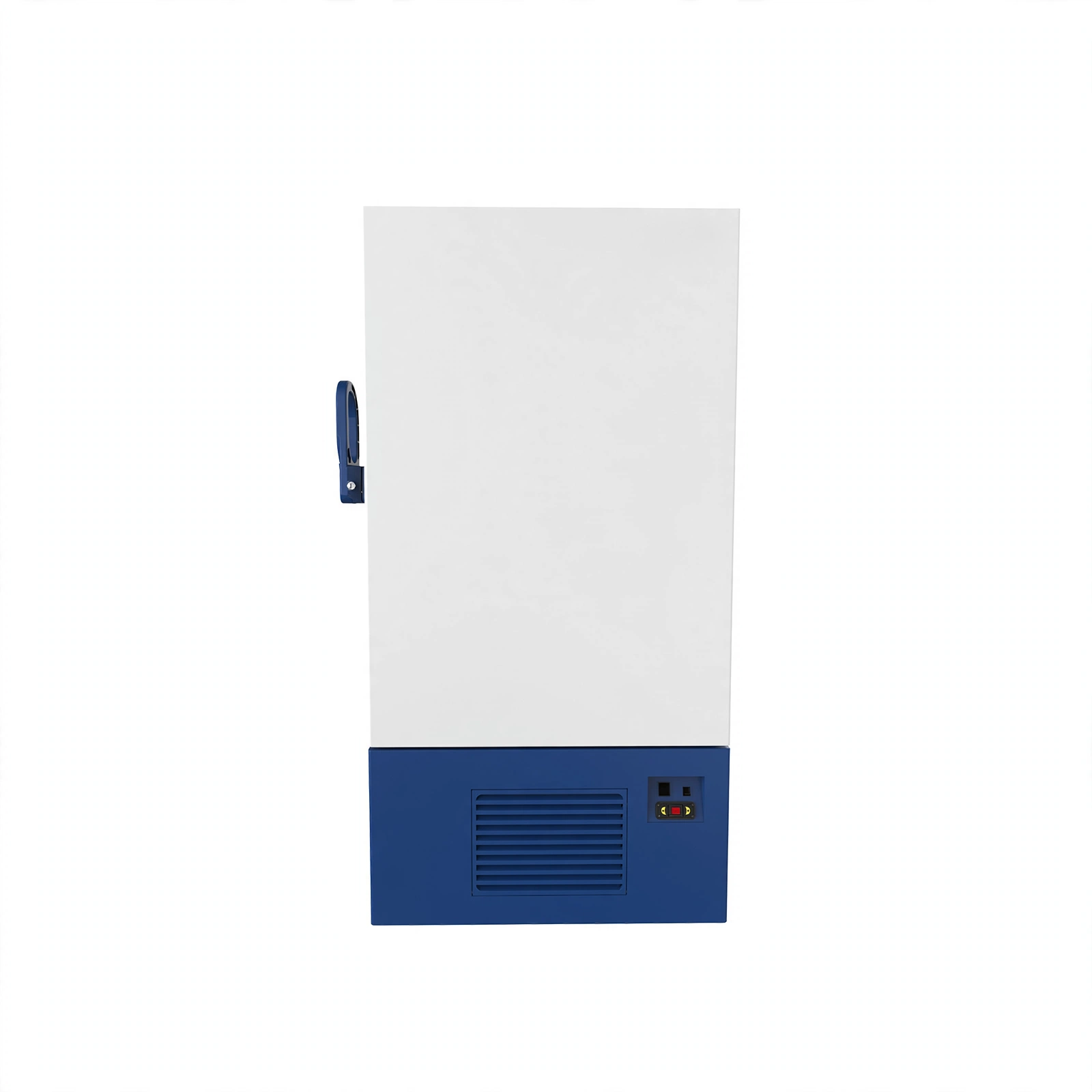

- BDF-86V168 / BDF-86V348
- Capacity
- 168L / 348L
- Temp. Range
- -40~-86℃
- Temp. Accuracy
- 0.1℃
- Temp. Uniformity
- ±4℃
- Temp. Stability
- ≤6℃
- Recovery Time(Recover to -75℃ in an ambient temp. of 25℃)
- ≤15min
- Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃)
- ≤4h
- Control System
- Microprocessor control
- Display
- LED
- Alarm
- High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm
- Refrigeration Type
- Direct-cooling
- Refrigerant
- R600a/R1150/R14, 137g / R600a/R1150/R14, 193g
- Compressor
- International famous brand compressor/1
- Condenser&Evaporator
- Micro channel condenser; built-in coil type, copper pipe / Built-in coil type copper pipe; copper tube and aluminum fin
- Defrost
- Manual defrost
- Construction
- Polyurethane cyclopentane foam
- Material
- Internal Material / SUS304 stainless steel
- Material
- External Material / Sprayed steel plate
- Door
- Outer door: cyclopentane monomer foam door*1Inner door: cyclopentane monolithic foaming, stainless steel door*3 / Outer door: cyclopentane monomer foam door*1Inner door: cyclopentane monolithic foaming, stainless steel door*2
- Noise
- 55dB(A)
- Consumption
- 650WApparent power: 858VA
- Power Supply
- AC220V, 50Hz (Standard); 220V, 60Hz, 110V, 60Hz (Optional)
- Casters
- Yes
- Shelf
- 2 / 3
- Standard Accessory
- Test port*2
- Optional Accessory
- RS485 interface, USB interface, liquid nitrogen backup system, temperature recorder
- Internal Size(W*D*H)
- 465*455*820mm / 490*612*1150mm
- External Size(W*D*H)
- 844*807*1594mm / 869*989*1924mm
- Package Size(W*D*H)
- 1000*970*1790mm / 1020*1180*2130mm
- Net Weight
- 168kg / 232kg
- Gross Weight
- 221kg / 300kg
