It is used to quantitatively analyze the clinical chemistry of human serum, plasma, urine, cerebrospinal fluid and other samples. Do not use for other purposes.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.1. 150 sample positions.
2. 160 reaction cuvettes.
3. 180 refrigerated reagent positions.
4. Optical filter/fiber bragg grating selectable.
5. 800 tests per hour(1200 tests with ISE module).
6. Built-in sample barcode system optional.
7. Probe with anti-collision function, liquid level detection function.

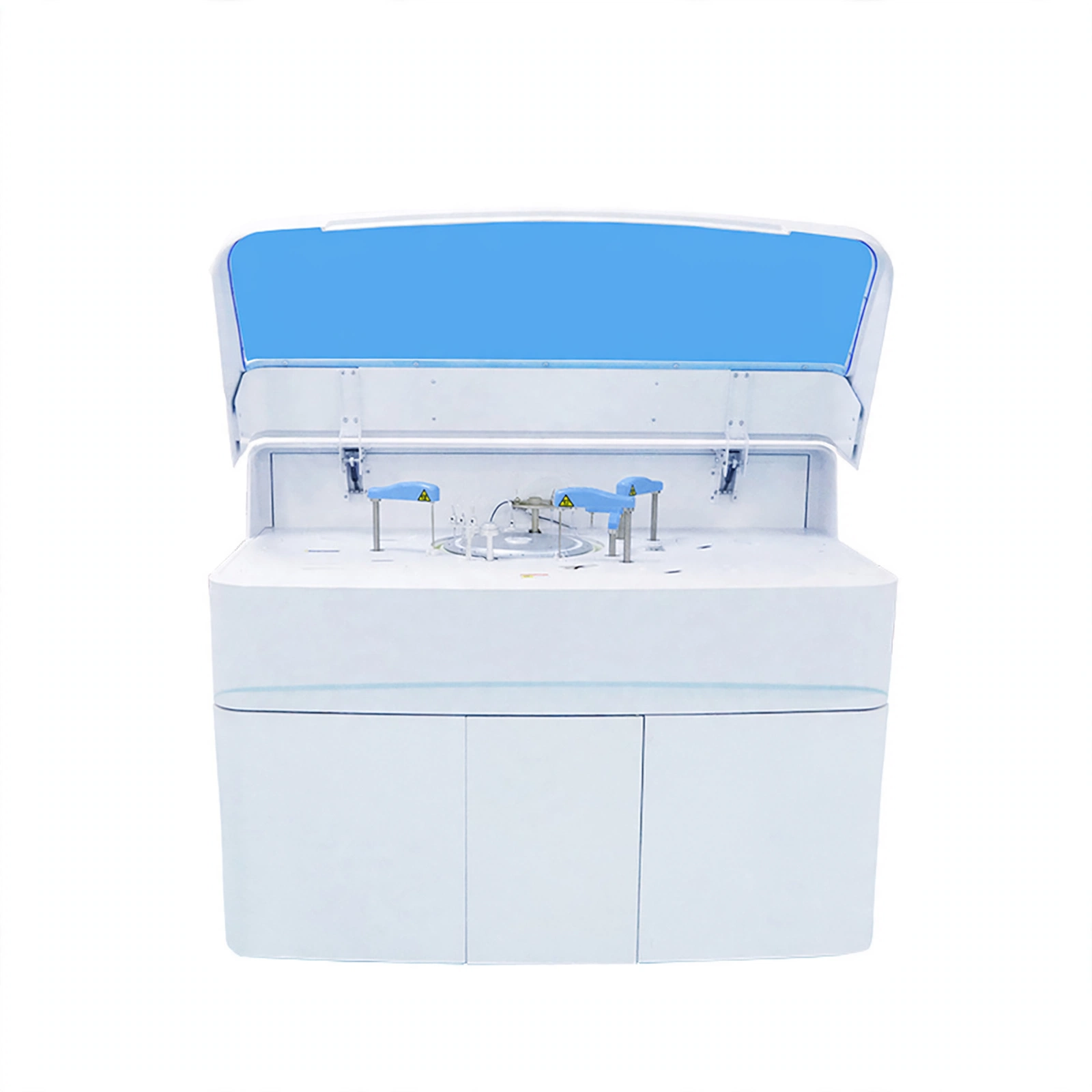

Technical Parameters:
| Model |
BK-1200 |
|
|
Overall Performance |
Throughput | 800 tests/hour, 1200 tests/hour with ISE(Optional) |
| Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
| Certificates | CE, FDA, ISO9001, ISO13485 | |
|
Sample&Reagent System |
Sample Positions | 150 sample positions |
| Reagent Positions | 180 reagent positions | |
| Sample Volume | 1~70μl | |
| Reagent Volume | 10~350μl | |
| Probe | Teflon coating, with anti-collision function, liquid level detection function | |
| Probe Washing | Automatic washing interior and exterior | |
| Reagent Cooling | Refrigerated tray with independent switch | |
|
Reaction System |
Temperature Control | Water bath 37±0.1℃, real-time monitoring |
| Cuvettes | 160 reusable cuvettes, optical length 6mm | |
| Mixer Probe | Independent stirring | |
| Washing | Automatic cuvettes washing | |
| STAT Function | YES | |
|
Optical System |
Light Source | 12V/20W halogen lamp/fiber bragg grating optional |
| Spectrophotometry | Post-spectral spectrophotometry | |
| Wavelength | 12 wavelength from 340~800nm | |
| Absorbance | 0~3.5Abs | |
|
Calibration&QC |
Calibration | Linear: K factor, 1-point, 2-point and multipoint linear
Non-Linear: Spline, Polygon, Logit-4P, Logit-5P |
| Quality Control | Real-time QC, Westgard multi rule, Cumulative sum check, Twin plot(2D), Daily QC, Monthly QC | |
|
Data Management |
Software | Windows 7/8/10, 32 or 64 bit |
| LIS System | Bi-direction, support HL7 protocol | |
| Interface | LAN port access | |
| Printer | External optional, multiple reporting mode available | |
|
Working Conditions |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 1500VA |
| Temperature | 15~30℃(±2℃) | |
| Water Consumption | Deionized water: <25L/H | |
| Humidity | 40%~85% | |
|
Size&Weight |
External Size(W*D*H) | 1360*795*1155mm |
| Net Weight | 290kg | |
| Package Size(W*D*H) | 1729*969*1435mm | |
| Gross Weight | 400kg | |
Ask our team for the full specification sheet for this model.
