Nucleic Acid Extractor

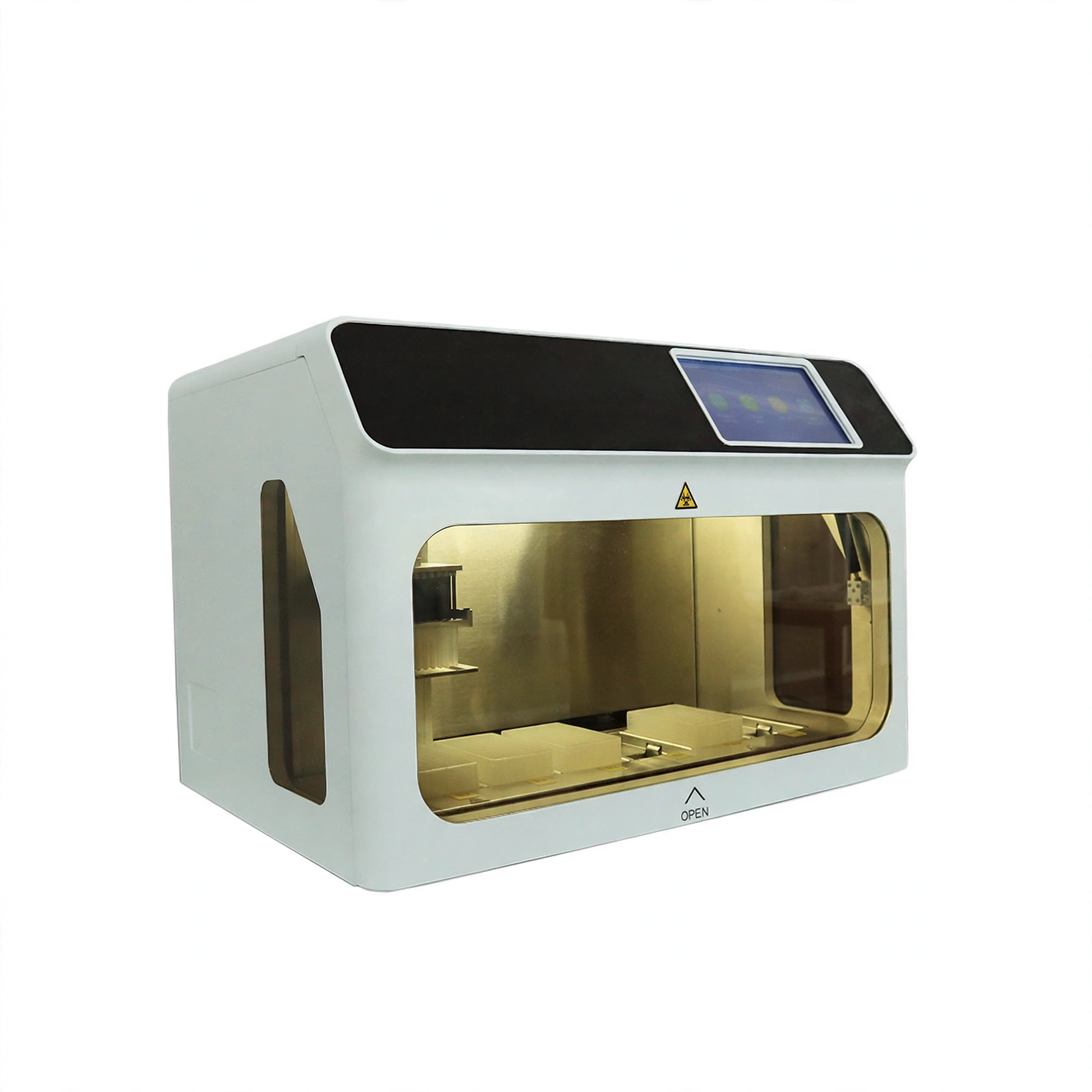

Auto Nucleic Acid Extraction System BNP96

Model BNP96 Blood & clinical

Automatic nucleic acid extraction and purification system for the extraction of DNA or RNA from a variety of materials, such as whole blood, tissue, throat swab, etc., without centrifugation or filtration operation.

Power
500W
Dimensions
770*530*540mm
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

1. High purity extraction, easy to operate and fully automated.

2. High throughput, can process 1~96 samples at a time, save time.

3. With professional extraction kit, extraction process optimization.

4. With constant temperature function to ensure the best reaction temperature in the purification process.

5. Friendly operation interface, easy to understand, no external computer, no special training.

6. Compact appearance, solid material, long design life.

Technical Parameters:

Model BNP96
Sample Capacity Screen 10.1-inch touch screen
Sample Volume 60μl~1000μl
Sample Capacity 1~96
Magnetic Bead Recovery >98%
Extraction Time Depending on the reagents
Extracting the Difference Between Holes CV≤3%
Consumption 500W
Operating Temperature RT-120℃
Product Purity A260/A280 DNA>1.7~2.0; RNA>1.8~2.1
Shock Mixing Adjustable speed
Reagent Type Open system for magnetic bead method
Program Storage 48 groups
Safety Door Design Safety door opened, the program operation will be automatically suspended, avoid cross-contamination
Disinfection Method UV light, aerosol adsorption
Power Supply AC100V~240V, 50Hz/60Hz
External Size(W*D*H) 770*530*540mm
Package Size(W*D*H) 910*670*780mm
Gross Weight 95kg
The details

Specifications

Model
BNP96
Sample Capacity Screen
10.1-inch touch screen
Sample Volume
60μl~1000μl
Sample Capacity
1~96
Magnetic Bead Recovery
>98%
Extraction Time
Depending on the reagents
Extracting the Difference Between Holes
CV≤3%
Consumption
500W
Operating Temperature
RT-120℃
Product Purity A260/A280
DNA>1.7~2.0; RNA>1.8~2.1
Shock Mixing
Adjustable speed
Reagent Type
Open system for magnetic bead method
Program Storage
48 groups
Safety Door Design
Safety door opened, the program operation will be automatically suspended, avoid cross-contamination
Disinfection Method
UV light, aerosol adsorption
Power Supply
AC100V~240V, 50Hz/60Hz
External Size(W*D*H)
770*530*540mm
Package Size(W*D*H)
910*670*780mm
Gross Weight
95kg
