Blood Culture

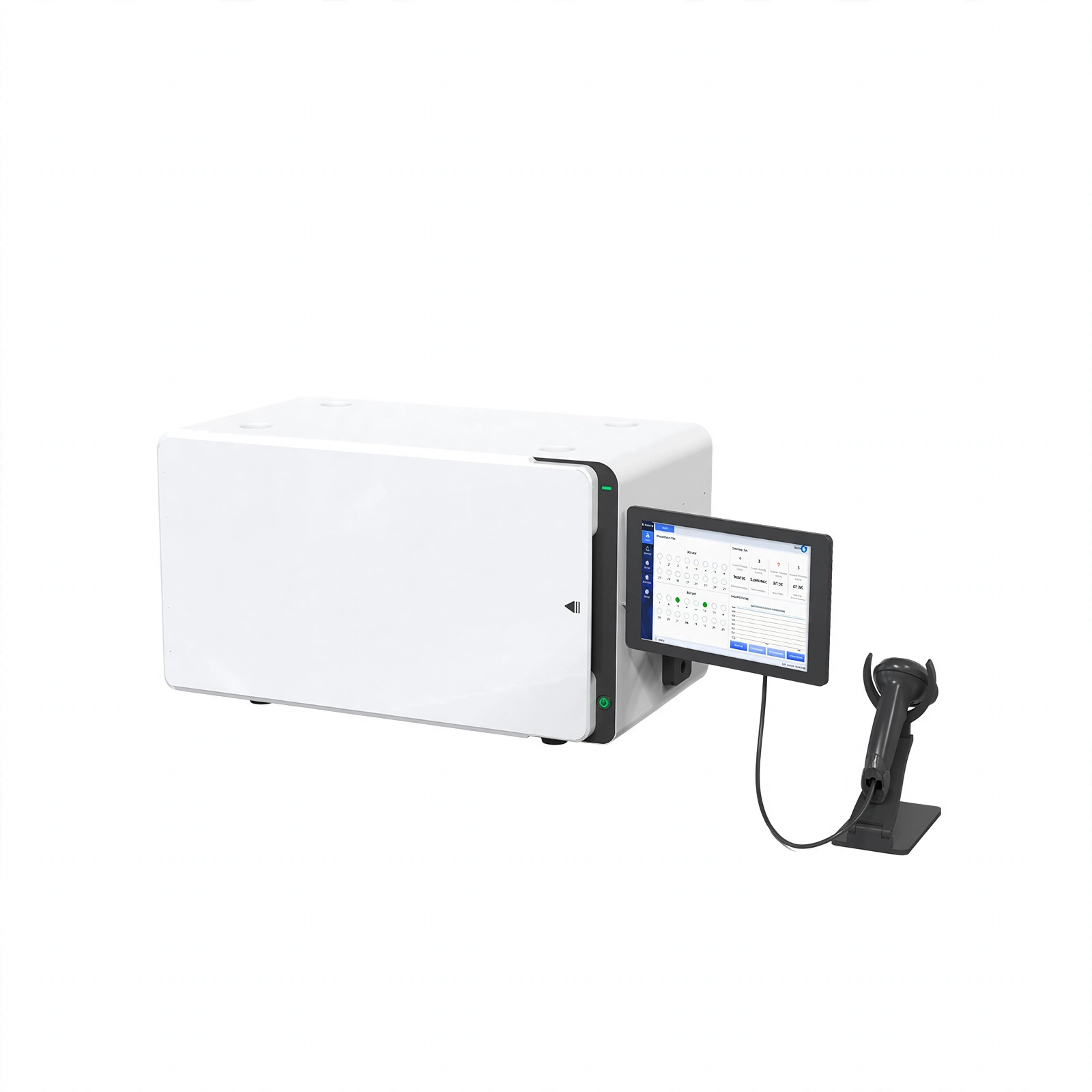

Automated Blood Culture System

Model BK-BC32 BK-BC64 BK-BC128 Blood & clinical

Automated Blood Culture System comprises a constant temperature system, oscillating mixing system, detection system, computational control system, and power supply system.Adopting continuous monitoring technology, it enables rapid detection of pathogenic microorganisms in blood and sterile body fluid specimens. It meets the diagnostic needs for bloodstream infections and provides a scientific basis for antibiotic therapy.

Capacity
32 / 64 / 128
Net weight
33kg / 66kg / 130kg
Dimensions
720*330*350mm / 720*3…
A tailored quote, without the guesswork.

Ask about availability, configuration and delivery to your location. We reply personally.

Request a quote
Enquiry only. No payment is taken.
  • Specifications confirmed with you before any order
  • International delivery arranged to your facility
  • Personal sourcing support from first message to arrival
A closer look

About this equipment

Features:

Easier Operation

“Scan & Load” one-step bottle placement (any slot, random positioning)

Blind retrieval (batch consecutive retrieval of same-result specimens)

10.1-inch touchscreen with graphical interface

Dual barcode support & LIS integration

Color-coded/blinking indicators for loading/unloading

Smarter Detection

Blood/sterile body fluid cultivation & detection

Independent slots for synchronous bottle identification

High-precision temperature control (uniform internal temperature)

Modular design, multi-unit cascading support

More Accurate Reporting

Continuous monitoring for timely results

Innovative algorithms for fast, precise positivity reporting

Technical Parameters:

Model BK-BC32 BK-BC64 BK-BC128
Method

Color method
Specimen

Blood or various sterile body fluid specimens
Capacity 32 64 128
Temperature Control System

Circulating air bath, users can set the culture temperature flexibly
Independent Culture Cycle

Each culture bottle can set independently of different culture cycles flexibly
Agitation Function

Rocker-type mixing, continuous oscillation
Detection

Multi-channel synchronous detection & upload, 24h real-time monitoring (10-min intervals), the detection cycle can be set according to the user’s needs.
Antibiotic Adsorption

Special resin adsorption (no interference with gram stain smears)

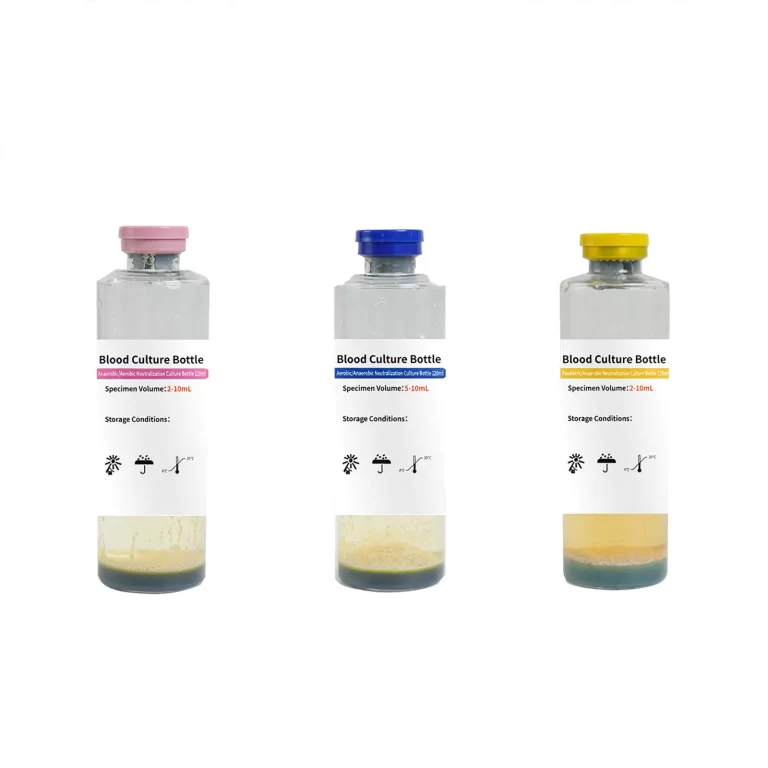

Culture Bottles

Adult aerobic/anaerobic bottles;

Antibiotic-neutralizing bottles;

Pediatric aerobic bottles;

L-form bacteria bottles
Bottle Reinsertion

>48h delay tolerance; retest support for false-positive bottles
Bottle Material

Multi-layer polymer fiber (crimp-sealed design: shatterproof, contamination-proof)
Software Functions

Incubation time graphing; statistical analysis; growth curves; blind retrieval; HIS/LIS integration
Alarm

3-level (audio/visual/color) alerts
Power Supply

AC110/220V, 50/60Hz
External Size(W*D*H) 720*330*350mm 720*330*700mm 1400*330*700mm
Net Weight 33kg 66kg 130kg
Package Size(W*D*H) 800*500*590mm 800*900*590mm 800*900*590mm*2
Gross Weight 50kg 85kg 85kg*2
The details

Specifications

Model
BK-BC32 / BK-BC64 / BK-BC128
Method
Color method
Specimen
Blood or various sterile body fluid specimens
Capacity
32 / 64 / 128
Temperature Control System
Circulating air bath, users can set the culture temperature flexibly
Independent Culture Cycle
Each culture bottle can set independently of different culture cycles flexibly
Agitation Function
Rocker-type mixing, continuous oscillation
Detection
Multi-channel synchronous detection & upload, 24h real-time monitoring (10-min intervals), the detection cycle can be set according to the user's needs.
Antibiotic Adsorption
Special resin adsorption (no interference with gram stain smears)
Culture Bottles
Adult aerobic/anaerobic bottles;Antibiotic-neutralizing bottles;Pediatric aerobic bottles;L-form bacteria bottles
Bottle Reinsertion
>48h delay tolerance; retest support for false-positive bottles
Bottle Material
Multi-layer polymer fiber (crimp-sealed design: shatterproof, contamination-proof)
Software Functions
Incubation time graphing; statistical analysis; growth curves; blind retrieval; HIS/LIS integration
Alarm
3-level (audio/visual/color) alerts
Power Supply
AC110/220V, 50/60Hz
External Size(W*D*H)
720*330*350mm / 720*330*700mm / 1400*330*700mm
Net Weight
33kg / 66kg / 130kg
Package Size(W*D*H)
800*500*590mm / 800*900*590mm / 800*900*590mm*2
Gross Weight
50kg / 85kg / 85kg*2
