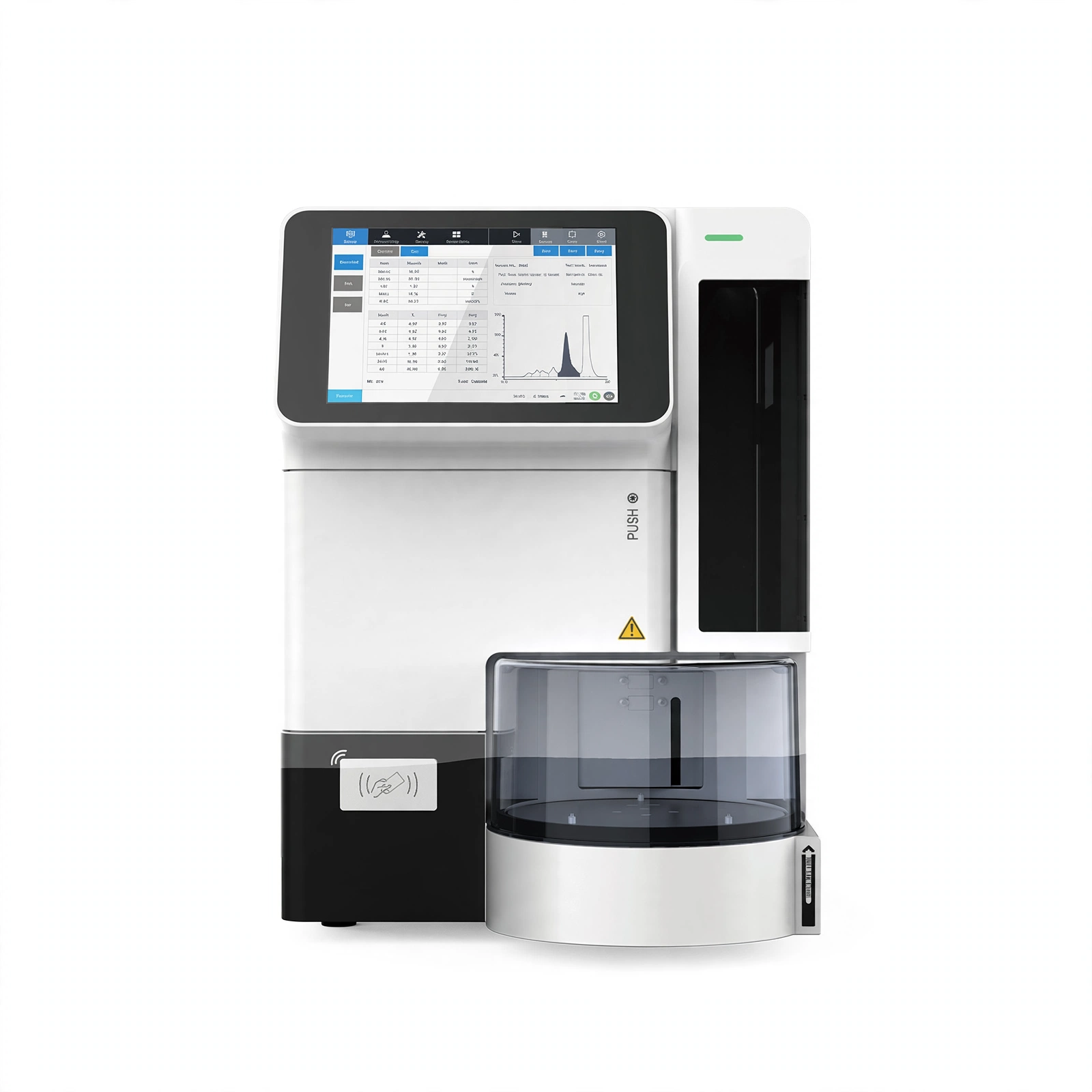

The Automated Glycohemoglobin Analyzer AH-600Pro is a high-throughput benchtop system for quantitative HbA1c measurement in clinical laboratories. It uses ion-exchange HPLC with three elution buffers to deliver precise results in both NGSP and IFCC units within 1 minute per test. The system supports carousel sampler loading and puncture aspiration, features automatic sampling, hemolyzing, and mixing, and includes RFID reagent management and LIS bi-directional transmission for streamlined workflow.
Ask about availability, configuration and delivery to your location. We reply personally.
Enquiry only. No payment is taken.Features
1. Fast
First test takes 2 minutes
1 Min/Test (60 tests/Hour)
Carousel sampler loading or puncture aspiration
2. Precise
Ion exchange chromatography/Three elution buffers
Report in both NGSP and IFCC results
| Sample No.: 033 Sample ID: AI01-02 Position: sample type: hemolyzed blood Name: Gender: Age: Test Time: 2020-08-03 09:42:23 |
| Items | Results | Unit |
| HbA1c | 10.78 | % |
| HbA1c | 94.34 | mmol/mol |
| HbF | 1.10 | % |
| HbA1 | 12.28 | % |
| Name | % | Time | Area |
| FP | 0.09 | 0.17 | 0.87 |
| A1A | 0.66 | 0.23 | 6.34 |
| A1B | 0.8 | 0.29 | 8.05 |
| F | 1.10 | 0.37 | 10.57 |
| LA1C+ | 1.57 | 0.48 | 15.02 |
| SA1C | 10.78 | 0.59 | 87.82 |
| A0 | 86.65 | 0.79 | 892.90 |
3. Stable
Correlativity
AH-600Pro Measured Value
Top Brand Analyzer
Measured Value(%)
Repeatability
Intra-batch assays (n=10)
| Low | High | |
| Mean | 5.1% | 10.1% |
| SD | 0.05 | 0.05 |
| CV | 0.94% | 0.51% |
Inter-batch assays (n=20)
| Low | High | |
| Mean | 5.1% | 10.2% |
| SD | 0.04 | 0.06 |
| CV | 0.87% | 0.56% |
4. Easy
One key operation, smart settings
Automatically sampling, hemolyzing and mixing
Applying in whole blood and diluted blood
RFID scanner, management for reagent lot No., expiry date, and residue check
LIS bi-directional transmission with reports in both diagram and text
Hemoglobin A1c
Diagnostic Criteria of Type 2 Diabetes
| Standards of Diagnosis | Plasma Glucose & HbA1c |
| Classic symptoms of high blood sugar+ HbA1c | ≥6.5 % |
| or + FPG (Fasting Plasma Glucose) | ≥126 mg/dl |
| or + OGTT (Oral Glucose Tolerance Test) | ≥200 mg/dl |
|
If without classic symptoms, each test usually needs to be repeated on a second day to diagnose diabetes. |
|
Testing should be carried out in a health care setting (such as clinics or hospital lab)
Clinical Usage of HbA1c
1. Early screening and diagnosis of diabetes
2. Effect evaluation of glycemic control for treatment adjustment
3. Differential diagnosis between stress hyperglycemia and diabetes
4. Prevention, monitoring and evaluation for complications of diabetes
Regular HbA1c Measurement:
1. Once per 6 months for the diabetics with glycemia well controlled;
2. Once per 3 months for the diabetics with failed glycemia controlled or treatment adjustment needed.
Parameters：
| Model | AH-600Pro |
| Measurement Principle | Ion-exchange HPLC |
| Test Mode | Standard mode/Variant mode |
| Throughput | Standard mode: 60s/test
Variant mode: 96s/test |
| Items | Standard mode: FP, A1A, A1B, F, LA1C+, SA1C, A0
Variant mode: With additional HbS, HbC, HbD, HbE |
| Measurement range | HbA1c: 3%~20% |
| Repeatability | CV≤1.0% |
| Sample Type | Whole blood and diluted blood |
| Sample Volume | Whole blood: 3μL, diluted blood: 4μL |
| Sample Management | LIS loading, barcode scanning |
| Sample Position | 20 samples (2 carousel sampler, each carousel sampler can load 20 samples) |
| Sampling Method | Carousel sampler loading, puncture aspiration |
| Result Report Form | Graphic report: both chromatogram and test result |
| HbA1c Report Form | In both graphic and value repot with IFCC(mmol/mol) and NGSP(%) results |
| Consumable | Elution buffer, hemolysis & wash solution, column, filter, calibrator, control |
| Reagent Management | RFID scanning, automatically loading info of lot, expiry date and remains, etc. |
| Operation Interface | 8 inches touch screen |
| Storage Capacity | 100,000 results. Available for statistics, online queries, data backup, data export |
| Export &Communication | Bi-directional LIS, USB port, Ethernet interface, Built-in thermal printer |
| Maintenance | Automatic maintenance in startup and off, alarm and error indication, daily maintenance reminder & guidance |
| Power Supply | AC100~240V, 50/60Hz |
| Product Size(W*D*H) | 306*466*435mm |
| Net Weight | 20kg |
| Packing Size(W*D*H) | 560*460*700mm |
| Gross Weight | 28kg |
Reagent
| Reagent | Qty | Specification |
| Eluent 1 | 1 Bottle | 800ml/Bottle, room temperature |
| Eluent 2 | 1 Bottle | 800ml/Bottle, room temperature |
| Eluent 3/4 | 1 Bottle | 800ml/Bottle, room temperature |
| Hemolysis &Wash Solution | 1 Bottle | 2000ml/Bottle, room temperature |
| Chromatography Column | 1 Piece | 1 Column/Kit, 4~15℃ |
| Filter | 1 Piece | 600 Tests/Change, room temperature |
| Calibrator | 1 Kit | 1 Vial*Level 1+1 Vial*Level 2
4mL/vial, 2~8℃ |
| Quality Control | 1 Kit | 1 Vial*Level 1+1 Vial * Level 2
0.5mL/vial, 2~8℃ |
